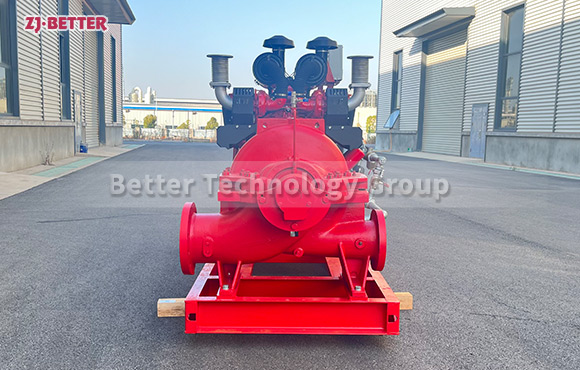

2000GPM 10Bar Emergency Diesel Split Case Fire Pump

XBC-D Diesel Fire Pump Set is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, the XBC-D Diesel Fire Pump Set ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

Diesel engine fire pumps are used for fire-fighting water supply in large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel and combined, with wide flow and pressure ranges. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

A suction tank provides a stable and continuous water supply to the fire pump. It helps prevent air entrapment and ensures that the pump receives a consistent flow of water during operation.

-UL Standard:
Flow：100-3000 GPM
Head： 90-250 PSI
– NON-UL Standard:
 Flow：100-10000GPM
Head： 40-250 PSI

       The operation of the Fire Pump Set

     Operation of diesel engine fire pump

     Diesel engine fire pump operation:Start, Stop and Run of the Equipment

Start: first make sure of the correct rotatingdirection of the fire fighting pump and the inlet valve is as N.O and outletvalve N.C. Before the pipe network starts with no water. After no error is found, start the fire-fighting pump and, when the pump gets stable run, gradually open the outlet valve and adjust it to the work condition point for the pump to run. The outlet valve is N.O. when the network is filled with water at usual.
Run: when the pump gets a normal run, check the shaft seal and the bearing to see how it works. Theleakage for themechanical seal should not be over 3 drops/min and for the stuffing seal should be dot drop. The bearing’s temperature should not be over 75℃ and its temperature rise not over 35℃ Stop running for a checking case of an abnormal sound during the pump’s run.
To stop, first close the outlet valve, then the diesel engine.

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI

·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI

Flow max.:100gpm
Pressure: 0.7 mpa
Material: Cast iron

Diesel engine fire pump sets are mainly suitable for fire water supply and foam fire extinguishing systems in petrochemical, natural gas, power generation, cotton and linen textiles, warehouses, airports, docks, high-rise buildings and other industries. It can also be used in occasions such as water ships, offshore oil tankers and fire fighting ships. The unit adopts imported diesel engine and fire pump. It has the characteristics of quick start, reliable water diversion, reasonable power reserve, stable operation, high degree of “three modernizations”, wide range of pressure and flow, etc. It is an advanced and reliable fire-fighting equipment.
Rational use and careful maintenance of the pump set is an important prerequisite to ensure the normal and reliable operation of the pump set, give full play to the emergency function and prolong the service life. In order to make the pump set operators familiar with its structural features, master the use and maintenance methods, and make good use of the pump set, we have compiled this manual for the reference of the set operators.

Flow：80-2700 GPM
Head：10-24 Bar 145-350 psi
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤2.5 MPa

The national standard name of diesel engine fire pump is “engineering diesel engine fire pump set”, and the XBC diesel engine fire pump set is the latest national standard GB6245-2006 “fire pump performance requirements and test methods”. This series of products has a wide range of lift and flow, and can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Diesel engine fire pumps are mainly used in flood control and emergency municipal engineering, farmland irrigation, urban water supply and drainage, fire water supply, hydropower engineering, metallurgy, mining, petroleum, chemical and other industries, and play an important role in flood control and emergency conditions. A diesel engine fire pump is a machine that transports liquids or pressurizes liquids. It transmits the mechanical energy of the prime mover or other external energy to the liquid to increase the energy of the liquid. It is mainly used to transport liquids including water, oil, acid and alkali, emulsions, suspoemulsions and liquid metals, etc., and can also transport liquid and gas mixtures. and liquids containing suspended solids. The technical parameters to measure the performance of the pump include flow rate, suction lift, lift, shaft power, water power, efficiency, etc.; according to different working principles, it can be divided into positive displacement pumps, vane pumps and other types. Positive displacement pumps use the change in the volume of their working chambers to transfer energy; vane pumps use the interaction between rotating blades and water to transfer energy, and there are centrifugal pumps, axial flow pumps and mixed flow pumps.

The XBC-ZWC Diesel Engine Self-priming Pump is a powerful and versatile solution for various water transfer applications. Designed with reliability and efficiency in mind, this self-priming pump is specifically engineered to handle water transfer tasks with ease. Whether you need to move water from one location to another, drain flooded areas, or supply water for irrigation, the XBC-ZWC Diesel Engine Self-priming Pump is your trusted companion.

The inlet pipe of the self-priming pump does not need to install the bottom valve, and the water can be sucked up after being filled with water for the first time, and there is no need to add water in the future. Self-priming function.

The diesel engine fire pump set is researched and developed in strict accordance with the national standard GB6245-2006 “Fire Pump” and other standards, and at the same time it is developed according to market demand and use characteristics. When a fire breaks out in a building, the power supply system is faulty, and the electric fire pump cannot be put into operation, the diesel engine emergency fire pump will automatically be put into operation to ensure that the fire-fighting work is carried out normally and the safety of life and property is guaranteed.

Automatic diesel pump unit: diesel water pump, jockey pump, strong steel base, radiator (heat exchanger), battery, battery wire, gate valve, check valve, flexible joint, automatic control panel.

Experience efficient fluid transfer with the XBC-XA Diesel End Suction Pump. With its unique end suction design and powerful diesel engine, this pump offers reliable performance and exceptional pumping capacity. It is suitable for a wide range of applications, from industrial fluid transfer to fire protection systems. The XBC-XA Diesel End Suction Pump features automatic operation, advanced control systems, and automatic fault detection for added safety and convenience. Choose this versatile pump for reliable and efficient fluid transfer in various industries.

XBC series fire pump set is a new type of fire fighting equipment (hereinafter referred to as equipment) developed by the company in strict accordance with the national standard GB6245 “performance requirements and test methods for fire pumps” and the American Fire Protection Association standard NEPA20 “installation of centrifugal fire pumps”. , This series of equipment can be divided into three sub-series XBC-IS, XBC-S, XBC-D according to the fire pump (single-stage single-suction type, single-stage double-suction type, segmental multi-stage type) used. It has a wide range of pressure and flow, and its application can meet almost all kinds of occasions required for fire protection. The diesel engines equipped with the equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. It is an advanced and reliable fire fighting equipment.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations. The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The biggest difference between the diesel engine fire pump and the electric fire pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power supply or power supply. helper.

Structurally, the diesel engine fire pump is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery, intelligent automatic control panel and so on. And at present, the diesel engine fire pumps are all equipped with the time limit automation function of the control cabinet. The start and operation of the diesel engine completely rely on the traditional operation mode, and realize the functions of remote control, automatic start, ultra-low voltage start and automatic alarm.

In terms of industry applications. Diesel engine fire pumps are widely used in emergency water supply for large-scale projects such as high-rise buildings, steel plants, chemical plants, hotels, and water works.

The fire pump is suitable for pressurizing water supply in the fire pipeline. The purpose is to transport clean water or other liquids with physical and chemical properties similar to clean water for pressurization. The temperature of the medium used by the horizontal pump is not higher than 80 °C, which is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other cold and warm water circulation pressurization and equipment matching.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure. The diesel engine pump set can form an automatic fire water supply system with the electric pump set and jockey pump.

Standard:
       UL    Flow：100-3000 GPM    Head： 90-250 PSI
       NON-UL   Flow：100-10000GPM   Head： 40-250 PSI

The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Vertical Turbine Pump are commonly used in various type of applications, from fire fighting use to moving process water in
industrial plants to providing flow for cooling towers at power plants, from pumping raw water for irrigation, to boosting water
pressure in municipal pumping systems, and for virtually every other imaginable pumping application.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

Firefighting pumps can be equipped with various accessories and add-ons to enhance their performance and versatility. Common accessories include foam proportioning systems for generating fire-suppressing foam, hose reels for convenient storage and deployment of hoses, suction strainers and filters for protecting the pump from debris, and pressure regulators for controlling the flow and pressure of water.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system – the storage battery. Therefore, the start and operation of the diesel engine fire pump can be completely separated from the mains.
The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference. Of course, we can also design a control system that is more suitable for customer needs according to customer requirements.

Diesel engine fire pump has high efficiency, long operating life and high reliability. It can be used in independent fire water supply system, some can be used in fire protection and domestic common water supply system, and it can also be used in construction, municipal, industrial and mining, water supply and drainage, ships, field operations, etc.
