2500gpm@70m EDJ Fire Pump

Benefits include:

Simplified Installation: Pre-packaged systems are easier and quicker to install, reducing on-site labor and potential for errors.
Quality Control: Assembled and tested in a controlled environment, ensuring high quality and reliability.
Space Efficiency: Designed to optimize space, making them ideal for installations with limited space.
Regulatory Compliance: Often pre-engineered to meet specific codes and standards, simplifying the compliance process.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

Yes, diesel fire pumps can often be retrofitted or upgraded to improve performance, reliability, and compliance with current regulations or standards. This may involve replacing outdated components, installing new safety features or emission control technologies, or integrating digital monitoring and control systems. Retrofitting or upgrading diesel fire pumps can extend their lifespan, enhance their efficiency, and ensure continued compliance with evolving regulatory requirements.

Diesel engine fire pump group is a new type of fire fighting equipment (referred to as equipment) developed by the company in strict accordance with the national standard GB6245-2006 “Fire Pump” and the American Fire Protection Association Standard NEPA20 “Installation of Centrifugal Fire Pump”. The flow range is wide, and its application almost meets all kinds of occasions required for fire protection.
The diesel engines equipped with the equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, easy maintenance and simple use, and high degree of automation. It is an advanced and reliable fire fighting equipment.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, storage and other places, and the performance requirements and quality requirements are different. The commonly used types of fire pumps are vertical electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multiple Level fire pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

Flow: 14-2700 GPM
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The ED fire pump set is composed of electric pump + diesel pump, equipped with a control cabinet, without a jockey pump. It is a small fire pump set, suitable for any fire emergency situation, not affected by the mains, and the control cabinet controls the pump. Start and stop, with the advantages of flexibility and small footprint.

1. Connection form

The vertical water pump is connected with the motor by the coupling, which needs to be aligned regularly; the perpendicular water pump is superimposed and connected from the bottom to the top, and the perpendicular water pump is generally called the channel pump.

2. Installation form

Compared with perpendicular water pumps, perpendicular water pumps are easier to install. The vertical pump set is handed with a base, and perfection adaptation is needed after installation.

3. conservation difficulty

Since the perpendicular water pump is composed of upper and lower layers, the conservation of the perpendicular water pump is more delicate. For illustration, to repair the impeller, it’s necessary to remove all the corridor above the impeller before repairing; while the vertical water pump is fairly easy. For illustration, the IS type pump can perform impeller conservation by removing the bay pipe.

4. bottom space

It can be seen from the appearance that the vertical water pump has a base due to its vertical structure, so it occupies a large area.

Functional description of fire pump control system, which is composed of electric motor fire pump, diesel engine fire pump, common chassis, water outlet pipeline and various valves. The operation of the unit is operated by hand. The diesel engine fire pump is equipped with a fuel tank with a running capacity of 6 hours. The electric fire pump set has a starter cabinet and a manual button box, which is convenient and feasible to operate. In addition to the entire structure of the manual control unit, the automatic motor fire pump unit and diesel engine fire pump unit also have an automatic control panel mainly composed of PLC. Automatic control panel function The automatic control panel receives the fire alarm signal.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

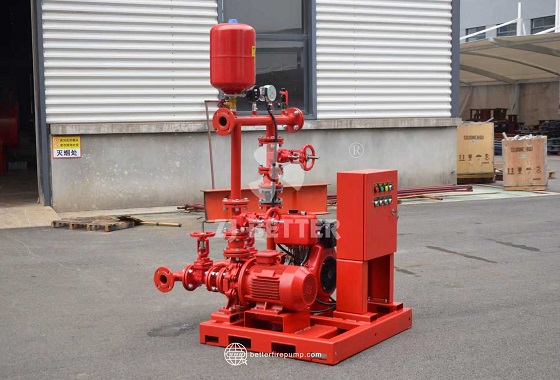

Fire pressurized and stabilized water supply equipment can make the fire water supply pipeline system the most unfavorable point always maintain the fire pressure, and the use of air pressure water tank always stored in the 30 seconds of fire water, to ensure the fire pump before the operation of the fire spray water; The device uses the operating pressure set by the air pressure water tank to control the operating condition of the pump and achieve the function of pressurization and pressure stabilization.

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. The pump set has reasonable layout, firm installation, reliable connection, compact and neat structure, and convenient maintenance. And can run in the case of power failure, suitable for any emergency fire occasions.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pump is a general term for special pumps involved in water supply of various fire systems. Fire pumps must be tested and approved by relevant national units before they can be used in various fire protection systems in buildings, such as: fire hydrant systems, sprinkler fire extinguishing systems, foam fire extinguishing systems, large space high-altitude water cannons, water mist fire extinguishing systems, rain shower fire extinguishing systems systems, water curtains, etc.

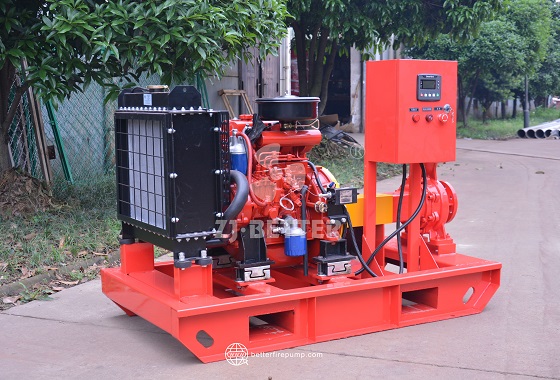

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)

The EDJ fire pump unit is suitable for various fire boosting and pressure stabilizing pump occasions; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems; suitable for various oil depots, oil loading and unloading docks, logistics parks and other fire protection levels demanding places.

We can manufacture fire pumps that are NFPA20 compliant and UL listed.
Fire pumps can function with electric motors or diesel engines, and if local building codes require electricity independent of the local grid, pumps using electric motors can use the installation of an emergency generator when connected through a transfer switch listed.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

– Marine-Grade Materials: Using materials that can withstand the corrosive marine environment.
– Integration with Ship Safety Systems: Coordinating with onboard safety systems for comprehensive fire protection.
– High Capacity Systems: Providing high-capacity systems to handle fires on large ships and offshore platforms.
– Compliance with Maritime Safety Standards: Adhering to fire safety regulations specific to the shipping and maritime industries.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

– Rapid Evacuation: Ensuring the system supports rapid evacuation procedures to minimize risk to large crowds.
– Flexible Design: Providing flexible design options to accommodate varying event setups and capacities.
– Noise and Disruption Minimization: Ensuring minimal noise and disruption to maintain a pleasant environment.
– Compliance with Event Space Standards: Adhering to fire safety regulations and standards specific to high-occupancy event spaces.

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Scope of application of fire pump:
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
