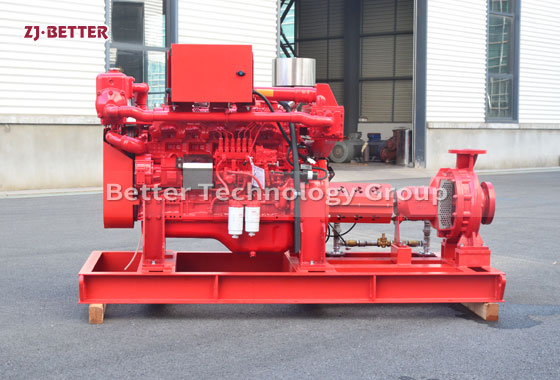

40L/S 123M Diesel Engine End Suction Pump

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The Diesel Engine End Suction Fire Pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

Diesel engine fire pump as a common must use facilities, only in the fire signal to come, and electric pump failure or power failure, diesel engine fire pump will automatically start, widely used in environmental protection, water treatment and fire departments to transport a variety of liquids.

1.The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.

2.All products are tested before delivery to ensure no quality problems.

3.As for after-sales problems, we can dispatch engineers to solve them on site, so you can buy our products at ease.

Experience efficient fluid transfer with the XBC-XA Diesel End Suction Pump. With its unique end suction design and powerful diesel engine, this pump offers reliable performance and exceptional pumping capacity. It is suitable for a wide range of applications, from industrial fluid transfer to fire protection systems. The XBC-XA Diesel End Suction Pump features automatic operation, advanced control systems, and automatic fault detection for added safety and convenience. Choose this versatile pump for reliable and efficient fluid transfer in various industries.

Diesel fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, easy installation and maintenance.

Diesel engine fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. This diesel engine pump set can transport clean water or other liquids whose physical and chemical properties are similar to water. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump’s flow parts, sealing form and adding a cooling system.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

1.The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.

2.All products are tested before delivery to ensure no quality problems.

3.As for after-sales problems, we can dispatch engineers to solve them on site, so you can buy our products at ease.

Flow：2000GPM
Head：12 Bar
The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

XBC-S single-stage double suction diesel engine fire pump is used for various occasions of emergency standby pumps. The diesel engine fire pump set is equipped with various automatic functions to meet the requirements of national standards, so as to ensure that the equipment is in normal standby state for a long time and put into fire extinguishing work at any time.

Diesel engine fire pump set is a new type of fire-fighting equipment developed by our company in strict accordance with the national standard GB6245-98 “Fire Pump Performance Requirements and Test Methods” and the American Fire Protection Association standard NEPA20 “Installation of Centrifugal Fire Pumps” and other standards (hereinafter referred to as equipment ), this series of equipment can be divided into three sub-series, XBC-IS, XBC-S, XBC-D, etc. The equipment has a wide range of pressure and flow, and its application can almost meet various occasions required by fire protection.

DJ fire pump set (Diesel pump+Jockey pump)
Specifications
Operation: 1 Duty (diesel pump) + 1 Jockey pump

Capacity: 25, 50, 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.

Pressure vessel 25, 30, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

The fire pumps used in the complete set of diesel engine fire pumps can be the IS series single-stage type and the S and D series segmental multi-stage type produced by our company. The diesel engine fire pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. They are advanced and reliable fire-fighting equipment.

Diesel fire pumps are available in various configurations, including horizontal split-case, vertical turbine, and end-suction pumps. Each type has its advantages and is suitable for different applications based on factors such as space limitations, flow requirements, and installation preferences. Consulting with a qualified engineer or fire protection specialist can help determine the most appropriate type of diesel fire pump for a specific application.

Flow：250-10000 GPM
Head： 3-16 Bar
Power：11-1000 kw
The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Standard:
       UL    Flow：100-3000 GPM    Head： 90-250 PSI
       NON-UL   Flow：100-10000GPM   Head： 40-250 PSI

The fire pumps used in diesel engine fire pump sets can be IS series single-stage type, S series new single-stage double-stage type, and D-type series segmental multi-stage type produced by our company. The diesel engines used in this series of equipment are domestic or imported products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a reliable fire-fighting equipment.

The XBC-ISO Diesel Engine Fire Pump Set is an efficient and reliable firefighting equipment that combines the power of a robust diesel engine with the advantages of an ISO single-stage centrifugal pump. This pump set is ISO certified, ensuring excellent quality and performance. The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time. The advanced technology used in the XBC-ISO pump set not only ensures efficient firefighting tasks but also promotes energy efficiency and environmental conservation, reducing operational costs.

Diesel engine fire pump set adopts OTS fire pump. It has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. For conveying clean water or other liquids with physical and chemical properties similar to water. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump flow parts, the sealing form and increasing the cooling system.

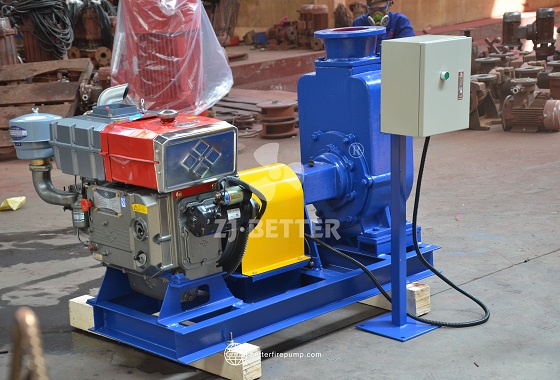

Ensure rapid and reliable fire protection with the Single Cylinder Diesel Self-Priming Fire Pump. This advanced pump offers automatic startup within 15 seconds of receiving fire signals, guaranteeing immediate response. Its automatic charging system ensures smooth operation, while built-in alarms and protections provide enhanced safety. With automatic preheating and a direct connection design, this pump is both efficient and reliable. It is suitable for various applications in areas where firefighting vehicles face limitations. The Single Cylinder Diesel Self-Priming Fire Pump is ideal for areas where access by firefighting vehicles is limited, such as small towns, industrial ports, and rural areas.

All places need to be equipped with fire-fighting facilities, and fire pumps are the water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps require power systems. supply. In case of power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

In industrial settings with complex and highly specialized processes, fire protection requirements can be intricate. This article delves into the intricacies of selecting the right fire pump for industrial applications, emphasizing the need for detailed hazard analysis, process-specific considerations, and compliance with safety regulations. It highlights the importance of customizing fire pump systems to safeguard both personnel and valuable equipment.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

The fire pump is the necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. The commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is that the electric fire pump needs power system supply. The electric diesel engine fire pump can be started at any time to fill the position of the original electric fire pump.

The diesel engine fire pump set adopts ISW pump.
1. The pump is the horizontal structure, the inlet and outlet are the same in diameter, and lying in the same center line, which can be installed in the pipeline as valve, the floor space needed is small, if the protection cover is added, it can be put in the open air;
2. The impeller is installed on the major axis of the motor directly, the axial is short in size, the structure is compact, can calibrate radial and axial load that produced by pump rounding effectively, thus guaranteed the pump operating steadily, vibration, and low noise;
3. The axle seal adopts machinery seal or machinery seal sets, uses imported titanium alloy sealed ring, medium-sized high-temperature resistance machinery seal and adopts the hard alloy material, wear-resisting seal, which can lengthen the life of machinery seal effectively;
4. It is convenient to install and overhaul, no need to dismantle or move pipeline system; just lifting off pump conjunction flat nut can take all rotor parts out;
5. Can choose series or parallel operation according to your requirements for flow and lift;
6. Can be installed horizontally according to the pipeline system requirement.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The self-priming pump is a self-priming centrifugal pump. It has the advantages of compact structure, convenient operation, stable operation, easy maintenance, high efficiency, long service life, and strong self-priming capacity. There is no need to install a bottom valve in the pipeline. Before operation, it is only necessary to ensure that there is a certain amount of liquid in the pump. Self priming pumps of different materials can be used for different liquids.

The working principle of self-priming pump is to fill the pump casing with water (or there is water in the pump casing itself) before starting the pump. After startup, the high-speed rotation of the impeller causes the water in the impeller channel to flow to the volute. At this time, a vacuum is formed at the inlet to open the inlet check valve. The air in the suction pipe enters the pump and reaches the outer edge through the impeller channel.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working status of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Fire pump systems are also suitable for other emergency and backup applications:
Hotels, hospitals, gymnasiums and other public places;
Chemical, oil refining, metallurgy, energy, pharmaceutical and military enterprises;
Shopping malls, similar to Wanda Complex;
Office buildings, high-end residences;
