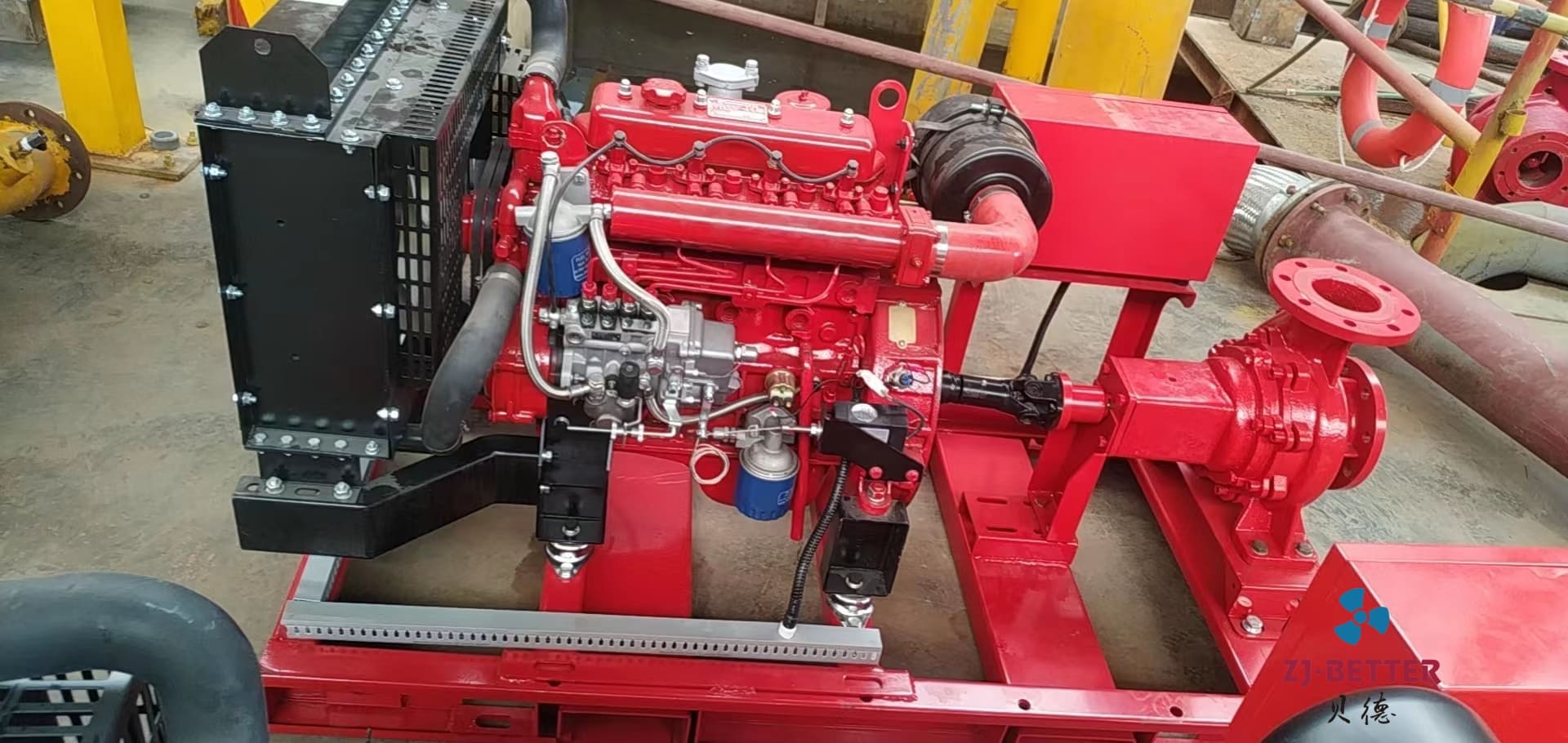

500gpm, 50m diesel engine fire pump

The XBC-ZWC Diesel Engine Self-priming Pump is a powerful and versatile solution for various water transfer applications. Designed with reliability and efficiency in mind, this self-priming pump is specifically engineered to handle water transfer tasks with ease. Whether you need to move water from one location to another, drain flooded areas, or supply water for irrigation, the XBC-ZWC Diesel Engine Self-priming Pump is your trusted companion.

As a fixed firefighting equipment, diesel engine fire pump has been widely used in firefighting and shunting, especially when there is no power supply or power supply (main power supply).
Diesel engine fire pumps can also be equipped with other diesel engines as power engines according to the needs of users. It is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery, intelligent automatic control panel, etc. The whole crankshaft of diesel engine fire pump has high rigidity, high strength and high torque transmission efficiency. It adopts international advanced technology and gantry blocks, sliding bearings, plate-fin coolers, upper heat exchangers, rotary oil filters, and double cooling systems. The performance of the diesel engine fire pump is superior, the smoke and noise indicators reach the national level, and the fuel consumption is lower than the national standard by more than 2.1g/kw.h.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, it can also be equipped with other diesel engines as power machines according to the needs of users.

The XBC-S Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations. The XBC-S Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Diesel engine vertical turbine fire pump, consisting of vertical turbine pump, diesel engine and gearbox

Flow: 238-1000 gpm / 15-63 l/s

Head:2-21 bar / 29-304.5 psi

Caliber: 100-150mm

Power: 11-160kW

Speed: 1500r/min

Working Pressure: 1.6MPa

Performance range:
1. Diameter: 65~300mm
2. Flow range: 5~180L/s
3. Pressure: 1.0~2.4MPa
4. Supporting power: 20~630kW
5. Working pressure: ≤2.5MPa
Applicable scene:
1. High-rise hotels, super-high public places
2. High-rise office buildings, high-rise residential buildings
3. Chemical, oil refining, metallurgy and other enterprises
4. Energy, pharmaceutical and military industries

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Environmental and Working Conditions
Ambient temperature:
Ambient temperature range 4℃-40℃.
Working to improve the ambient temperature every 5℃, its power decreased by 1%(to 25℃ as the base);
Altitude:
Reference elevation 91.4m, the reference atmospheric pressure is 100KPa;
If the work to an altitude of over 1000m, reference should be corrected GB1105 1-1987 diesel engine power, you can consult the specific technical department;
Relative humidity ≤80% (20℃), outdoor allow 90% (when installed outdoors in the order presented, you can choose to configure the outdoor structure, protection class IP55).

XBC-XA diesel engine fire pump has the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, high degree of automation, is an advanced, reliable performance of fire equipment. The product flow range is wide, its application can almost meet the fire protection requirements of various occasions.

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-400 mm
Frequency：50 or 60 Hz

The hand-held fire pump is mainly suitable for the fire fighting of the armed police fire brigade, various professional fire brigades, industrial and mining enterprises, counties, villages and towns, etc. It is more specific in areas where fire vehicles cannot pass. The hand-held fire pump can also drain waterlogging, fight drought, and green water , Water supply and emergency disaster rescue ideal equipment.

Flow：80-4000 GPM
Head： 3-15 Bar
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤1.6 MPa

Flow：2000GPM
Head：12 Bar
The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Hand-held diesel engine fire pumps are mainly used for fire safety and fire safety in fire brigades, various professional fire brigades, industrial and mining enterprises, counties, towns, etc. In areas where fire safety vehicles cannot operate, hand-held fire pumps can drain floods and droughts , Green garden watering, power supply system and rationalized machinery and equipment for emergency disaster relief.

The frequency of running a fire pump, also known as a “fire pump churn test” or “fire pump test,” is typically recommended on a regular basis to ensure that the pump is in good working condition and can perform its critical role in fire protection when needed. The frequency of these tests can vary depending on the specific regulations, codes, and guidelines of the local jurisdiction or the recommendations of the equipment manufacturer. Here are some general guidelines:

We take pride in introducing the XBC 10-65-IS fire pump, a highly efficient and reliable equipment that will provide exceptional fire protection.
The XBC 10-65-IS fire pump has a wide range of applications. It is suitable for fire protection systems in various buildings, factories, warehouses, ports, and ships. Whether you are in a large office building in the city center or an industrial area far from the city, the XBC 10-65-IS fire pump can provide reliable firefighting support in emergency situations. It is an ideal choice for equipping your fire protection systems.

Diesel engine fire pump sets are mainly suitable for fire water supply and foam fire extinguishing systems in petrochemical, natural gas, power generation, cotton and linen textiles, warehouses, airports, docks, high-rise buildings and other industries. It can also be used in occasions such as water ships, offshore oil tankers and fire fighting ships. The unit adopts imported diesel engine and fire pump. It has the characteristics of quick start, reliable water diversion, reasonable power reserve, stable operation, high degree of “three modernizations”, wide range of pressure and flow, etc. It is an advanced and reliable fire-fighting equipment.

This fire pump unit is equipped with an advanced intelligent control system, enabling automatic start/stop, real-time status monitoring, and fault alarms to significantly enhance operational safety and reliability. The system includes multiple protection features such as overload protection, phase failure alert, and abnormal water pressure detection, ensuring rapid response and stable water supply during fire emergencies. The user-friendly control panel supports remote monitoring and data logging, making management and maintenance more efficient. Whether for commercial buildings or industrial facilities, this intelligent system provides strong support for fire safety assurance.

Flow：50-7500 GPM
Head：3-20 Bar
Power：11-1000 kw
The Diesel Engine Vertical Turbine Fire Pump has a wide range of applications, making it suitable for extracting water from deep wells and hot springs. Whether it’s for firefighting, urban water supply systems, or hot spring facilities, it delivers reliable hydraulic support, ensuring smooth operations.By choosing the Diesel Engine Vertical Turbine Fire Pump, you gain a trustworthy equipment that guarantees efficient extraction of water from deep wells and hot springs.

500gpm vertical turbine pump with engine driven

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI

·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-200 mm
Frequency：50 or 60 Hz
Working Pressure：≤1.6 MPa

Flow rate:50-750 GPM
Head:Less 100 m
Speed:1500-3000 RPM

Diesel engine pump is a kind of mechanical and electrical integration equipment which is directly driven by diesel engine and can be started and water supply in a short time

1. Diesel self-priming pump is suitable for urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, papermaking, industrial and mining washing, equipment cooling, etc.
2. The diesel engine self-priming pump is equipped with a rocker-type sprinkler, which can also spray the water into the air and spray it into small raindrops. It is a good tool for farms, nurseries, orchards and vegetable gardens.
3. The diesel engine self-priming pump is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity <100 centipoise, solid content up to 30%). 4. The diesel engine self-priming pump can be used with any type and specification of filter press, and the most suitable pump type for pressure filtration when the slurry is sent to the filter press.

The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Flow：80-4000 GPM
Head：30-150 m 3-15 Bar 45-220 psi
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤1.6 MPa
