Are there regulations or standards that govern the design and operation of firefighting pumps?

Flow-500gpm
Head-8bar
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The pump and the motor are coaxial, which simplifies the connection of the pipeline. The pump inlet and outlet are on the same horizontal axis, and the diameter and specifications are the same. The pump is provided with a mounting base, which is easy to install and increases the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage.

The complete fire pump system consists of pumps, drivers, controllers and accessories installed on a universal base, and is suitable for fire water supply and emergency water supply in warehouses, storage yards, airports, petrochemicals, liquefied gas in power plants, textiles, ships, oil tankers, etc. This pump set is ideal for firefighting or voltage stabilization in houses or small buildings. We customize it to NFPA 20 and UL standards.

The minimum fire rated pressure of ED small fire fighting package set water supply equipment is 3 bar and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
Motor: Three-phase asynchronous squirrel-cage motor independently developed and manufactured by our company, which can be controlled in production time and greatly shorten the whole set production time.
Diesel Engine: According to the different parameters of customers, we will choose diesel engines with high cost performance ratio. The main brands are QuanChai, Weichai, ShangChai, FAWDE, Cummins, etc.
Electric Pumps: Electric pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Diesel Pumps: Diesel pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Electronic Components: The main electric components is CHNT, if Schneider or other brand electrical are need, should mention it before place the order.
Safety Valve plays a safety protection role in the system. When the system pressure exceeds the prescribed value, the safety valve opens, and a part of the gas/fluid in the system is discharged into the atmosphere/pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.
Pressure Tank: Water is a non-compressible medium. Generally speaking, the pressure drop of fire-fighting pipe network is normal. However, the pressure drop is very slow, the total loss of water in the pipe network isnot large, and the frequent change of pressure in the pipe network leads to frequent start-up and shutdown of pumps. Especially when the power of equipment is high, it will cause great impact on pressure sensors, relaysand motors, thus affecting the performance and life whole equipment. Therefore, it is necessary to choose the right volume of the pressure tank.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Horizontal fire pump has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

The fire pump can be installed in multiple ways according to the on-site use conditions. And depending on the flow and head requirements, the required flow and head are increased in parallel and series. The bearing adopts low-noise closed bearing, which has been injected with grease before leaving the factory, which can ensure continuous operation for more than two years, and the components have high concentricity. The pump impeller has good performance. Dynamic balance, no vibration in operation, and improved use environment. The pump shaft seal is a mechanical seal, which solves the serious leakage of conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

A fire pump is part of the water supply for a fire sprinkler system and is powered by electricity, diesel or steam. It uses water from an external source to increase water flow and pressure. The pump inlet is either connected to a public groundwater supply line or to a static water source. The pump provides higher pressure water flow to the sprinkler system risers and hose risers. Fire pumps must be tested monthly and annually to ensure they are operating as designed. These two different tests are called the monthly “churn” test and the annual flow test.

The lifespan of a fire pump depends on factors like maintenance, usage, and environmental conditions. With proper maintenance, fire pumps can last for several decades.

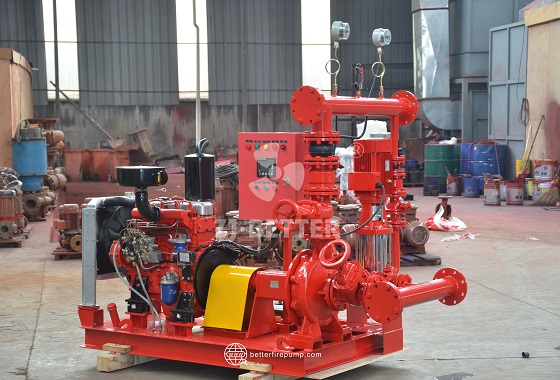

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

There are many applications for fire pumps. Different motors are selected according to the flow rate and head size. The commonly used motors include electric motors and diesel engines, and domestic and foreign brands can match the application. The fire pump can choose vertical or horizontal structure according to the pipeline requirements, and the head size is also different. Finding a professional pump factory or company can reduce the probability of wrong selection, and at the same time take into account the on-site installation requirements and pipeline design.

EDJ fire fighting equipment consists of electric pump + diesel pump + jockey pump. Both the electric pump and the diesel pump use a multistage jockey pump with large flow and high lift. The diesel engine can be started without electricity. It is suitable for any fire protection occasion. The company has a professional sales and production team, and the choice of pumps can be customized according to their own needs.

An FDC is an external connection point that allows the fire department to supplement the water supply to the fire protection system using their hoses and equipment if needed.

The fire pump is all made of polymer materials, so it has many characteristics such as cleanliness, good safety sealing, corrosion resistance, etc. It is a product that is believed in many fields at present. It has a long service life and can make the best use of it without wasting money. It is suitable for fire-fighting engineering in steel, metallurgy, electric power, petroleum, chemical, construction, port and other operations and emergency water supply for blast furnaces, continuous casting, converters, etc. Water supply works.

This fire pump set uses Cummins diesel engine and ISO pump. The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

This fire fighting equipment is an important part of building fire protection system. Its
routine inspection and daily maintenance are very important for each dual-power. If the fire
pump or booster pressure stabilizer pump in the dual power system fails, the fire accident
will lead to great losses of buildings and so on. It is the responsibility of the enterprise to
ensure that all equipment is regularly maintained and inspected, including the maintenance
and maintenance of all fire fighting systems

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The biggest difference between a diesel engine fire pump and an electric water pump is that it has its own independent power supply system, which ensures the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .
In terms of industrial applications, diesel engine fire pumps are widely used in emergency water supply for large-scale projects such as high-rise buildings, steel plants, chemical plants, hotels, and water works.

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

The small DJ fire pump equipment is suitable for small public places or fire emergency use. The small fire pump occupies a small area and is easy to maintain. The pump set is composed of diesel engine pump + jockey pump, which is widely used and is not affected by the mains.

The EJ model is basically a combination of an electric drive and a jockey pump. They consist primarily of an end suction pump driven by an electric motor, with no backup pump. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete EJ-style skid is assembled with all discharge line accessories and connected to the skid-mounted control panel.

The diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc., fast automatic start and self-priming, and self-priming after dry running. Heavy-duty pump bearings – longer life; other parts are made of high-quality copper and stainless steel or customized by customers. The high-efficiency open impeller design of the diesel engine fire pump can handle large solids and abrasive materials while maintaining a high flow rate, and the large-capacity air treatment can be used for more “well point dewatering projects”.

Understanding the appropriate testing frequency for fire pumps is crucial for compliance with safety standards and ensuring system reliability. This article explores the recommended testing schedules, including monthly, quarterly, and annual tests. It also underscores the need for more frequent testing in specific situations, such as critical facilities or harsh operating environments.

Fire pump impellers typically have a single- or double-suction design, with the latter being more common. They are usually made of cast bronze, cast iron, or stainless steel and are designed to operate at high pressures and temperatures. The impeller blades are typically curved to provide optimal flow and pressure, and the hub is designed to ensure a secure fit on the motor shaft. The impeller shape and size, as well as the number of blades, are designed to provide an optimal flow rate and pressure for the application.

Electric motor fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire water. The electric motor fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

This is a set of 400gpm@90psi fire pump set, which consists of electric pump + diesel pump + jockey pump. Multiple fire pumps work together to ensure the quantity and stability of water supply. It is a pump set for fire water supply. A diesel fire pump to ensure normal operation in emergency situations.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the fire control system control cabinet produced by our factory to realize the function of remote monitoring.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

Answer: First of all, we must understand the relationship between pressure and lift: pressure = liquid density * g * lift (g = 0.981). In fact, the fire water pump can not only transport water, as long as the physical and chemical characteristics and water liquid are fine, but most of them transport water in daily life. The density of water is 1 ton per cubic meter. It can be obtained from the above formula : Pressure=1000*0.981*lift, pressure=0.981*lift, at this time the pressure and lift are almost the same, so whether we refer to lift or pressure, it can basically be regarded as a parameter.
