Assembling the EDJ Fire Pump Set

EEJ fire pump set is an electric-driven fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. Better produces many types of fire pumps, which can be customized according to needs.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The ultimate in tailor made fire protection pump packages are the SPP Pumps pump house packages, housing pumps, control systems and pipework. After simply connecting the water and power supplies on site, the unit is immediately operational.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The fire pumps used in diesel engine fire pump sets can be IS series single-stage type, S, D type series segmental multi-stage type produced by our company. The diesel engines used in this series of equipment are domestic or imported high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable fire-fighting equipment.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

The diesel fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a fire-fighting equipment with reliable performance. This series of fire pump sets has a wide range of head and flow, which can fully meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

For diesel-driven fire pumps, environmental considerations include proper fuel storage and spill containment measures. It’s important to adhere to environmental regulations to prevent pollution and ensure the safe operation of the pump.

– Reliability in Extreme Conditions: Ensuring systems can operate reliably in extreme and isolated conditions.
– Efficient Water Supply Management: Implementing solutions that manage water supply efficiently in remote areas.
– Minimal Maintenance Requirements: Designing systems with minimal maintenance needs to reduce the reliance on remote support.
– Compliance with Remote Area Safety Standards: Adhering to fire safety regulations specific to remote and isolated locations.

1. Electric Motor Fire Pumps
2. Diesel Engine Fire Pumps
3. Portable Fire Pumps
4. Turbine Fire Pumps
5. Horizontal Split Case Fire Pumps
6. Vertical In-Line Fire Pumps
7. Vertical Turbine Fire Pumps
8. Jockey Fire Pumps

1. Inspect and test the fire pump, piping, valves, and relief valves annually for proper operation and water flow.

2. Make sure the fire pump is in good working condition and that all safety systems are in place and operational.

3. Check the fire pump’s pressure gauge and make sure it’s properly calibrated.

4. Inspect the motor, couplings, and belts for proper alignment and condition.

5. Clean the fire pump’s suction and discharge strainers regularly.

6. Ensure that the fire pump is properly lubricated and that all bearings and seals are in good condition.

7. Test the fire pump with a certified flow test annually.

8. Inspect the fire pump’s control panel and make sure it’s in proper working order.

9. Test the fire pump’s jockey pump and make sure it is operational.

10. Check all electrical connections and wiring for proper operation.

Yes, fire pumps can be integrated with water mist systems, providing a fine water spray for fire suppression. The combined system is effective in controlling and extinguishing fires, especially in enclosed spaces.

The pressure stabilizer pump is a kind of fire pump. It is used to stabilize the pressure of the automatic sprinkler system and the fire hydrant water supply system, so that the water pressure of the system is always in the required pressure state. Water volume and water pressure.

The jockey pump of the jockey fire water supply system must be kept running at ordinary times to maintain the pressure of the pipe network. When a fire occurs, it should still be able to run for a period of time until the main fire pump is started. It must be set according to the main and standby pumps. pressure pump. Due to the need for the stabilizing pump to keep running, energy is wasted, and the stabilizing pump is in working condition for a long time.

Outdoor fire pump set
The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

Fire sprinkler systems are hydraulically calculated prior to installation to determine adequate water flow and in order to ensure the system can reliably suppress a fire until fire crews arrive. When it’s determined inadequate flow is available from a municipal supply for the system to operate effectively, a fire pump is installed. The fire pump operates when the sprinkler system pressure drops below a certain threshold, due to the operation of sprinkler heads. The fire pump draws additional water from the municipal water supply or on site storage tanks, to maintain the sprinkler systems required operating pressure. Fire pumps are often required in high rise construction and large area buildings, due to the size of piping systems and pressure loss.

Fire pumps are designed to run continuously during a fire emergency. They must be able to sustain operation for the duration required to control or extinguish the fire, which can be several hours.

The diesel engine fire pump has the advantages of long head and wide application range, and can meet the fire water supply in multiple places such as warehouses, docks, airports, power plants, liquefied gas stations, and petrochemical industries. This type of diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

Instructions for use of EJ fire pump set:
Altitude: ¡Ü1000m;
Ambient temperature: +5¡æ¡«+40¡æ;
Relative humidity: <= 90%. Scope of application: Equipment suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

Flow-500gpm
Head-8bar
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The pump and the motor are coaxial, which simplifies the connection of the pipeline. The pump inlet and outlet are on the same horizontal axis, and the diameter and specifications are the same. The pump is provided with a mounting base, which is easy to install and increases the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The fire pump unit is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected to the input shaft of the fire water pump, and the other end of the output shaft of the double shaft extension motor is connected to a One end of the clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

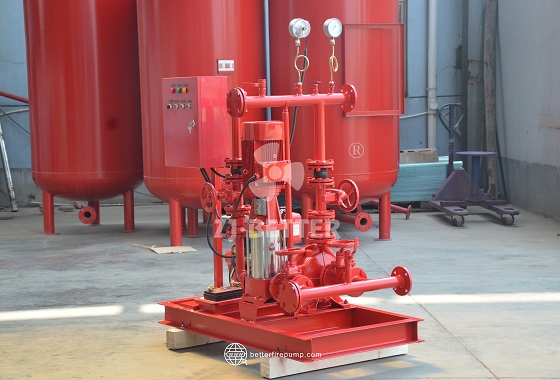

The small EEJ fire pump set is suitable for low buildings. The fire pump set consists of two ISW electric pumps and one CDL jockey pump. The ISW pump is easy to install and maintain, no need to disassemble or move the piping system, just lift the pump to connect the flat nut All rotor parts can be removed. The impeller is directly mounted on the main shaft of the motor, with a short axial dimension and a compact structure, which can calibrate the rounding of the pump to effectively generate radial and axial loads, thereby ensuring smooth operation, vibration and low noise of the pump.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

This group of fire pumps consists of two electric pumps + one jockey pump, and the motors are connected to multistage pumps.

A single-stage fire pump has only one impeller, and a multistage fire pump can have two or more impellers, which can achieve a larger lift at the same flow rate. Generally, it can be used as an industrial pump, a domestic pump and a fire pump.
