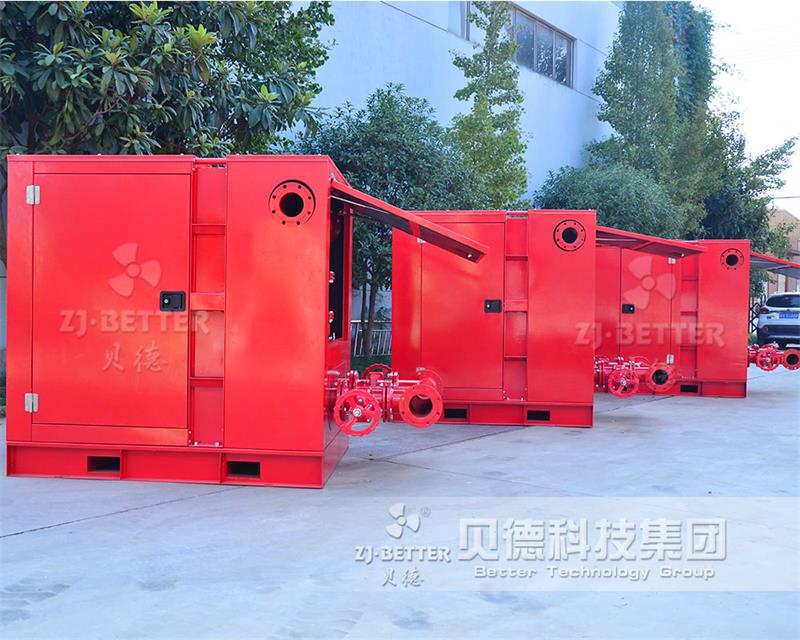

Box type fire pump set (small fire pump room)

– Handling of Hazardous Materials: Ensuring systems are designed to handle and suppress fires involving hazardous waste.
– Explosion-Proof Design: Using explosion-proof components to prevent ignition in volatile environments.
– Specialized Fire Suppression Methods: Implementing fire suppression methods tailored to hazardous waste fire hazards.
– Compliance with Hazardous Waste Safety Regulations: Adhering to fire safety regulations specific to hazardous waste management.

Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

Diesel engine fire pumps are aimed at fire-fighting water supply for large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel, with a wide range of flow and pressure. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

– Comprehensive Coverage for Extensive Areas: Ensuring fire protection systems can cover large industrial areas efficiently.
– High Capacity and Reliability: Implementing high-capacity systems to meet the demands of large industrial operations.
– Integration with Industrial Processes: Coordinating with industrial processes to avoid disruptions and ensure safety.
– Compliance with Industrial Safety Regulations: Adhering to fire safety regulations specific to large-scale industrial complexes.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The small DJ fire pump set is composed of a diesel engine pump and a stabilized pump. The small flow pump set is generally used in low buildings.It is suitable for fire-fighting occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

Fire pump maintenance is essential to guarantee the system’s longevity and reliability. This article provides an in-depth examination of best practices for fire pump maintenance, covering preventive maintenance schedules, routine inspections, lubrication, and replacement of wear components. It emphasizes the role of NFPA standards in guiding maintenance procedures and underlines the importance of documenting all maintenance activities.

The large-scale EDJ electric diesel dual-drive fire pump is a fire-fighting water supply equipment with dual drive of electric power and diesel engine designed and manufactured by Youbeide Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. There are many models of Better dual-power fire pumps, which can be customized according to needs.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has an ultra-low pressure start-up device, the matching electric water pump control cabinet should also have an ultra-low-pressure start-up device, and the lower limit of the two pumps should have a certain pressure difference. Of course, according to customer requirements, design a control system that is more suitable for customer needs.

EEJ fire pump group consists of two electric pumps + one jockey pump, the electric pump adopts XA pump.XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by Better (China) Technology Co., Ltd.
This product combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model. Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.

DJ series fire pump set consists of Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.

Reliability is ensured through regular maintenance, including fuel quality checks, battery inspections, and routine testing. Diesel engines should also have a dedicated fuel supply and meet the standards set by NFPA 20.

Flow: 14-2700 GPM
Head: 12-80 meter
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The EDJ fire pump set is tested in the Better factory, and our company’s fire pump set needs to be tested after the assembly is completed to ensure the quality. EDJ fire pump sets are widely used in large public places, factories, firefighting and other occasions.

ED small fire pump set (referred to as ED small fire complete set of water supply equipment) refers to a highly integrated electromechanical system with a flow rate of less than 100GPM and composed of electric centrifugal pumps, multi-stage centrifugal pumps (booster pump sets), diesel engine centrifugal pumps, pressure limiting protection Device (safety valve), valve fittings, control system, pressure sensor system, waterless protection device, backflow preventer, soft joint, bypass pipeline, common base, filter, etc. It is a fire-fighting water supply equipment that continuously supplies water to the fire-fighting pipe network at a preset pressure.

Fire pump model parameters are complete, specifications are rich, affordable, with a wide range of use, corrosion resistance, stable performance and other characteristics, there are perfect after-sales service, can be customized according to demand processing.

EDJ fire pump set is a kind of electric and diesel engine dual-drive fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the <> standard, and has obtained 3CF certification. Better dual-power fire pump has many models and can be customized according to needs.

Safety precautions include proper training for operators, ensuring adequate ventilation when using gasoline or diesel-powered pumps, using appropriate personal protective equipment (PPE), and following manufacturer’s guidelines for operation and maintenance. It’s also important to have a clear understanding of local regulations and requirements for outdoor fire pump installations.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

The diesel engine pump set has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. It is a kind of fire fighting equipment with reliable performance.

At higher altitudes, the atmospheric pressure is lower, which can reduce the performance of fire pumps. To compensate for this, fire pumps may need to be oversized or specially configured to deliver the necessary pressure and flow in high-altitude environments. Proper planning and design are essential to ensure that the system functions effectively under these conditions.

Fire pumps installed in hazardous environments, such as areas with flammable gases or vapors, need to meet specific safety standards. Explosion-proof components and adherence to relevant regulations are crucial.

Fire pumps are widely used in our production and life, such as water treatment, fire safety and other departments. ta fully sealed, no leakage, corrosion resistance and other characteristics, are widely used in life and production. The fire pump is mainly used for water delivery in the fire protection system. As an indispensable tool for the fire protection system, the fire pump has the characteristics of simple structure and stable performance, and because of its high speed and small volume, its efficiency is indeed very high.

The electric pump of this fire pump group adopts XA pump, which has good suction performance. The suction section of the pump is of an expanded structure, which reduces the flow rate of the pump inlet, so that the pump has good suction performance, a small necessary NPSH, and improves the prolongs the service life of the impeller and pump casing.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system – the storage battery. Therefore, the start and operation of the diesel engine fire pump will not be completely dependent on city power.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pump system is made of Electric+Diesel+Jockey pump
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Flow: 30-500GPM
Head: 3-20Bar
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.
