CDL Vertical Multistage Centrifugal Pump

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

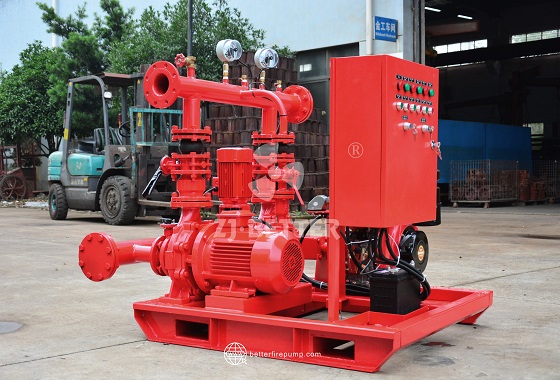

This kind of electric fire pump set is used of OTS pump with high-voltage motor driven.

Smooth operation: The pump shaft and impeller are balanced to ensure smooth operation without vibration.
No water leakage: Carbide seals of different materials ensure no leakage when conveying different media.
Low noise: The water pump supported by two low-noise bearings runs smoothly, except for the faint sound of the motor, which is basically silent.
Low failure rate: The structure is simple and reasonable, and the key parts are equipped with international equipment, and the trouble-free working time of the whole machine is greatly improved.
Easy maintenance: replacement of seals and bearings is simple and convenient.
Less space occupation: The outlet can be left, right and upward, which is convenient for pipeline arrangement and installation and saves space.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

The IS series single-stage centrifugal pump is a reliable and versatile solution for fluid transfer applications. Known for its simplicity and ease of use, this horizontal centrifugal pump is designed to efficiently transport clear water and fluids with similar properties. With a compact structure and convenient maintenance, the IS pump offers stable and low-noise operation, making it suitable for a wide range of industrial, agricultural, and municipal tasks. Whether it’s for industrial cooling systems, municipal water supply, agricultural irrigation, or firefighting applications, the IS single-stage centrifugal pump provides efficient and dependable liquid handling. Its durable construction and corrosion-resistant materials ensure long-lasting performance.

vertical turbine pump test pic in Better Group factory

Horizontal fire pumps are designed according to the principle of centrifugal force. The high-speed rotating impeller blades drive the water to rotate and throw it out, so as to achieve the purpose of transportation. There are many kinds of centrifugal pumps, which can be divided into civil pumps and industrial pumps in use; from the perspective of conveying media, they can be divided into clean water pumps, impurity pumps, corrosion-resistant pumps, etc.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105¡æ.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow. Its compact design allows for easy installation and maintenance, while its superior construction materials guarantee durability and long-term reliable operation. Choose the Horizontal Multistage Pump to achieve exceptional performance and success in your fluid handling projects.

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing. The XA pump is capable of handling different fluid mediums and provides efficient flow control. Its operating principle utilizes centrifugal force to draw in and propel fluids through the pump. Overall, the XA single-stage centrifugal pump is a reliable and efficient solution for fluid pumping needs in industrial settings.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow. Its compact design allows for easy installation and maintenance, while its superior construction materials guarantee durability and long-term reliable operation. Choose the Horizontal Multistage Pump to achieve exceptional performance and success in your fluid handling projects.

The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. The long shaft pump provides flexibility through customization options and multiple driving choices. It is a reliable solution for water supply, sewage treatment, and chemical processes. Choose the long shaft pump for reliable and efficient fluid handling in your engineering projects.

The pumps used in firefighting are divided into different types according to different classification methods. With its fully sealed and non-leakage characteristics, it is used in environmental protection, water treatment, fire-fighting and other departments to pump various liquids. It is a non-leakage, civilized The ideal pumps for workshops and civilized factories are similar to the types of pumps for fire protection systems, but the head and flow are different.

Submersible pump is an important equipment for deep well water extraction. During use, the whole unit works in the water to extract groundwater to the surface, which is used for domestic water, mine rescue, industrial cooling, farmland irrigation, sea water lifting, ship load regulation, and fountain landscape.

The OTS Double-Suction Split-case centrifugal Pump with High-Pressure Electric Motor is an exceptional firefighting equipment. This powerful combination delivers high flow rates and unmatched pumping efficiency, ensuring robust and continuous firefighting actions. Its compact design allows for quick deployment and rapid response, making it suitable for various settings. From rural wildfires to urban firefighting needs, this firefighting pump safeguards communities of all sizes, representing the pinnacle of safety and protection.

The fire pump is known to be used in fire -fighting pumps. It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. Fire prevention system. The performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Method” standard.

Vertical turbine pump pacakge process
The vertical turbine pump is hot sale in Philippines makrket
It can save pump room area and use in port area
If any need can contact with us

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Flow：50-7500 GPM
Head：3-20 Bar
The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

·UL Standard
Flow：100-2500 GPM
Head：90-250 PSI
·NON-UL Standard
Flow：250-10000 GPM
Head：30-200 m / 3-20 Bar / 40-290 psi

The G Single Screw Pump is a versatile positive displacement pump designed for the transportation of high-viscosity liquids. Featuring inter-meshing screws within the pump body, it creates continuous sealed chambers for efficient fluid movement. This pump finds widespread application in industries such as chemical, petroleum, food, and pharmaceuticals, where it excels at conveying high-viscosity, high-temperature, abrasive, or corrosive liquids. Its advantages lie in high-precision conveying, excellent self-priming capabilities, wide applicability, corrosion resistance, and low noise operation. The G Single Screw Pump offers a reliable and efficient solution for industrial liquid transportation needs.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

Vertical long axis pump is also called vertical long axis submerged sewage pump, which has the advantages of high efficiency and energy saving, convenient operation, low noise and easy maintenance. It can be used to transport clean water or sewage containing solid particles, such as iron filings, coal powder, sand, etc., and the transport temperature is lower than 80 ¡ãC.

The IS series single-stage centrifugal pump is a reliable and versatile solution for fluid transfer applications. Known for its simplicity and ease of use, this horizontal centrifugal pump is designed to efficiently transport clear water and fluids with similar properties. With a compact structure and convenient maintenance, the IS pump offers stable and low-noise operation, making it suitable for a wide range of industrial, agricultural, and municipal tasks. Whether it’s for industrial cooling systems, municipal water supply, agricultural irrigation, or firefighting applications, the IS single-stage centrifugal pump provides efficient and dependable liquid handling. Its durable construction and corrosion-resistant materials ensure long-lasting performance.

XBD series electric fuel centrifugal fire pump is a new type of medium and low pressure fire protection product developed by our company according to my country’s latest fire pump standard (GB 6425-1998). Its motor and fire pump are directly connected, which simplifies the intermediate transmission structure and enhances the running stability. Its construction area is 30% less than that of ordinary horizontal fire pumps, and the shaft seal is made of hard alloy mechanical seal without leakage. XBD series includes vertical single-stage fire pump, vertical multi-stage fire pump, horizontal single-stage fire pump, horizontal multi-stage fire pump four structural types to meet the different requirements of users.

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.

Testing an electric fire pump involves several steps:

Weekly or monthly churn tests: Run the pump without flowing water to check its operational status.
Annual flow tests: Perform a full flow test to ensure the pump meets the required performance criteria. This includes measuring the flow rate and pressure at various points and comparing them to the pump’s rated capacity.
Performance data recording: Document all test results and compare them against previous data to identify any performance changes.

The Vertical turbine pump is mainly used to transport clean water, sewage containing certain solid particles (such as iron filings, sand particles, coal powder, etc.), corrosive industrial wastewater and seawater. It is widely used in primary water treatment plants, sewage treatment plants, metallurgical and iron and steel industries (especially in the industry where the swirling pool conveys iron oxide scale water), power plants, mines, municipal projects and farmland water conservancy projects.

This series of pumps adopts a vertical structure, which can better save the floor space, has the characteristics of high efficiency, wide application range, flexible installation forms and convenient maintenance.

NL Slurry Sewage Pumps are indispensable in wastewater treatment plants, mining operations, construction sites, and industrial facilities for pumping sludge, sewage, and slurries with high solids content, offering durable and efficient solutions for demanding pumping environments.
