Choose a good electric fire pump at Better

Fire pumps can be powered by various sources, including electricity, diesel engines, and, in some cases, natural gas. The selection of a power source depends on factors such as reliability, availability, and the specific requirements of the facility.

Electric fire pumps are commonly used in urban areas with a stable power supply. They are efficient and can start automatically in response to a fire alarm signal. In contrast, diesel-powered fire pumps are reliable in areas with inconsistent power availability, as they can function independently. The choice of power source should align with the facility’s operational conditions and the need for uninterrupted fire protection.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Fire pumps are necessary when the water supply available does not generate the necessary hydraulic pressure required to meet demand of a fire protection system such as automatic sprinklers and standpipes, or even foam systems.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

The jockey pump of the jockey fire water supply system must be kept running at ordinary times to maintain the pressure of the pipe network. When a fire occurs, it should still be able to run for a period of time until the main fire pump is started. It must be set according to the main and standby pumps. pressure pump. Due to the need for the stabilizing pump to keep running, energy is wasted, and the stabilizing pump is in working condition for a long time.

Fire pump systems, like any mechanical equipment, can face various challenges that impact their performance and reliability. Some common issues include:

Cavitation: This occurs when there’s excessive pressure drop in the suction piping, causing vapor bubbles to form within the pump. Cavitation can damage the pump and reduce its efficiency.

Overheating: Fire pumps generate heat during operation. Overheating can lead to pump failure, so proper cooling and ventilation are essential.

Blockages: Debris or obstructions in the piping can impede water flow, reducing the pump’s effectiveness.

Wear and Tear: Like any mechanical equipment, fire pumps experience wear over time. Regular maintenance is essential to replace worn parts and ensure longevity.

Identifying and addressing these challenges promptly is essential for maintaining the functionality and reliability of fire pump systems.

EDJ Fire pump set consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

Fire pump components:
1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. Pipeline supplementary pressure pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

diesel fire pump set, also known as a diesel engine-driven fire pump, is a type of fire pump system used for fire protection in buildings, facilities, and industrial settings. It is designed to provide water at high pressure and flow rates to fire sprinkler systems, standpipe systems, and other fire protection equipment in the event of a fire emergency. Diesel fire pump sets are an essential component of fire protection systems, especially in areas with unreliable or insufficient electric power supply.

250gpm 8bar DJ fire pump is the diesel engine pump and jockey pump, controller and pipe system on one skid, can meet the flow 250gpm @ pressure 8bar, it is Ecuador client’s order for Better Technology Group.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original electric fire pump.

EDJ fire pump is the main pump used for various fire hydrants and sprinkler fire pumps; it is suitable for various fire boosting and pressure stabilizing pumps; various villas, community and other fire protection systems; industrial and civil building fire protection systems; suitable for Various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

First, what’s a water pump? It’s a device used to transport liquid, pressurize the liquid, and make the liquid from the first liquid position to the high liquid position. The first water pump constructed by the Chinese is called” water windmill”. latterly, around 300 BC, the emergence of the” Archimedes screw pump” is more analogous to ultramodern pumps. In addition, the following introductory knowledge points are what you must understand.
1. Centrifugal pump

Centrifugal pump is the most common type of pump. In simple terms, the working principle of centrifugal pump is to rotate the impeller to drive the liquid under the action of centrifugal force. The liquid leaves the impeller and enters the volute. As the inflow passage of the volute gradationally expands, the fluid haste slows down, and the pressure rises continuously, and eventually it’s discharged through the conduit.
2. Impeller
The impeller is one of the main factors in the water pump, and it’s the core element that transmits mechanical energy to the liquid. The impeller is substantially divided into three types open type,semi-open type and closed type. The material conditions for the impeller are high, wear resistance is needed, and the manufacturing process is good.

3. Cavitation

Cavitation is the conformation of numerous bitsy recesses when the liquid connections the liquid under high- speed inflow and pressure, and gradationally expands into grottoes when serious, and cavitation frequently occurs in the impeller and pump covering.

The fire pump unit can be classified according to the following rules:
1 according to the form of power source, it can be divided into:
A) diesel engine fire pump unit
Motor fire pump unit
C) gas turbine fire pump unit
D) gasoline engine fire pump unit
(2) it can be divided into:
A) water supply fire pump unit
Stabilized pressure fire pump unit
C) hand lift motorized fire pump unit
3. According to the auxiliary characteristics of the pump unit, it can be divided into:
A) common fire pump unit
Deep well fire pump unit
C) submersible fire pump unit
The above is the basic classification, but various types can be combined with each other, such as medium and low pressure fire pumps, high and low pressure vehicle fire pumps, ordinary fire pump sets, electric submersible fire pump sets, etc

1. The biggest feature of the complete fire pump set is its strong reliability. Even if it is restarted for a long time, it will not bite to death, and it can be restarted normally.
2. The use efficiency is very high. During the use process, there will not be too much noise. The installation form of the fire pump set is very flexible, and it is convenient for maintenance, which can effectively save installation and maintenance costs.??

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

In areas with limited access to technical support and specialized maintenance services, maintaining fire pumps can be challenging. These pumps require regular inspections, testing, and maintenance to ensure they function correctly in an emergency. In remote or underserved areas, finding qualified technicians and replacement parts can be difficult, leading to longer downtime and increased risk of system failure. To mitigate these challenges, fire pump systems in such locations are often designed with redundancy and built-in diagnostics to facilitate remote monitoring and troubleshooting. Training local staff to perform basic maintenance and leveraging online resources for support can also help ensure that fire pumps remain operational even in areas with limited technical support.

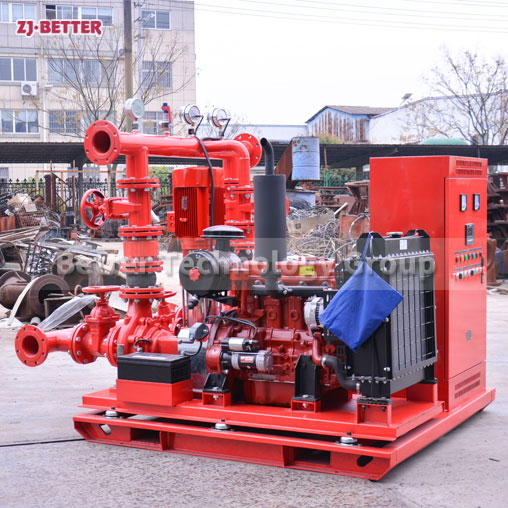

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

1. Fire Pump: A fire pump is the heart of a fire sprinkler system and is used to create the necessary water pressure to make the system work. It is powered by an electric motor or diesel engine and pumps water from a water source to the sprinkler system.

2. Control Panel: The control panel is the brains of the fire sprinkler system. It controls the flow of power to the pump and monitors the sprinkler system for any changes in pressure or water flow. It also triggers alarms and other safety devices in the event of a fire.

3. Suction Pipe: The suction pipe is connected to the fire pump and draws water from the water source. It is usually made of steel and must be strong enough to withstand the pressure exerted by the pump.

4. Pressure Gauge: The pressure gauge is used to measure the pressure in the system and ensure that the pump is providing the correct amount of water pressure. It is usually mounted on the control panel.

5. Valves: Valves are used to control the flow of water to and from the system. They are typically operated manually or automatically and can be used to start and stop the pump, control the flow of water, and isolate parts of the system for maintenance.

Fire pump package comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The biggest difference between a diesel engine fire pump and an electric water pump is that it has its own independent power supply system, which ensures the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .
In terms of industrial applications, diesel engine fire pumps are widely used in emergency water supply for large-scale projects such as high-rise buildings, steel plants, chemical plants, hotels, and water works.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The EDJ Fire Pump system consists of diesel engine fire pumps, electric pump units, and pressure stabilizing pumps, creating an intelligent automatic fire water supply system. Our electric pump units come in various models, including single-stage pumps, horizontal split-case pumps, end-suction pumps, and multi-stage pumps, constructed with cast iron or stainless steel and equipped with efficient copper impellers for exceptional performance.
Whether it’s for buildings, factories, or warehouses, the EDJ fire pump system provides outstanding performance and reliability for your fire protection system, ensuring safety and security during fire emergencies!

Firefighting pumps can be equipped with various accessories and add-ons to enhance their performance and versatility. Common accessories include foam proportioning systems for generating fire-suppressing foam, hose reels for convenient storage and deployment of hoses, suction strainers and filters for protecting the pump from debris, and pressure regulators for controlling the flow and pressure of water.

Firefighting pumps can be powered by various sources, including gasoline engines, diesel engines, electric motors, and even manual operation in some cases. The choice of power source depends on factors such as portability, availability of fuel, and the intended application.

Recent advancements in fire pump technology have focused on improving efficiency, reliability, and ease of maintenance. Innovations such as variable frequency drives (VFDs) allow fire pumps to adjust their speed and output based on demand, reducing energy consumption and mechanical stress. Smart controllers with advanced diagnostics and remote monitoring capabilities enable proactive maintenance and faster response to potential issues, ensuring pumps remain operational when needed most. Additionally, improvements in pump materials and design, such as corrosion-resistant alloys and compact configurations, enhance durability and reduce the footprint of fire pump installations, making them more suitable for various applications.
