Comprehensive Fire Response Solution: EJ Fire Pump Group

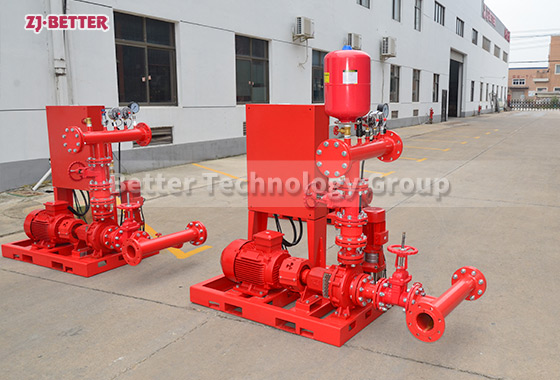

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps

Diesel engine fire pumps have been widely used as fixed fire extinguishing equipment for fire diversion, especially in the case of sudden fire water supply such as lack of power supply or abnormal power supply. , fire pump, connection device, fuel tank, radiator, battery pack, intelligent automatic control screen, etc. Diesel engine fire pump products have the characteristics of leading technology, high degree of automation, excellent performance protection function, reasonable structure, simple installation and high cost performance. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural pumps, marine pumps, and trailer-type mobile water pump stations. It can be used together with electric fire pumps.

Zjbetter Brand Fire Pump Skid 500 gpm @7 bar with cummins diesel engine 46 kw shipped to Tanzania got a high value in Africa market.

Three start-up functions for diesel engines:
1. Manual start function: manual and automatic interlocking can be completed through the transfer switch, and the manual start function can be realized:

2. Automatic manual function: allow to start three times. If the startup fails for three times, it will issue a “startup failure alarm” and automatically exit the startup state. After a successful startup, the time from startup to rated load is 5-10-15S (depending on the unit capacity);

3. Emergency manual direct start function: When the automatic control device fails, the emergency manual direct start function can be realized.

Horizontal multistage fire pump is the latest energy-saving series product developed and produced. It has significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure and long service life. It is used for conveying clean water without solid particles and liquids with physical and chemical properties similar to water. Fire pumps are mainly used for pressurized water supply in fire protection systems, and can also be used in factory and mine water supply and drainage, high-rise building pressurized water supply, long-distance water supply, and heating. , bathroom, boiler hot and cold water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

50gpm 8bar ED fire pump product process

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Diesel engine fire pump is a special diesel engine equipment, which has the characteristics of simple structure, reliable operation and long service life, and is widely used in the field of fire protection. When using a diesel engine fire pump, it is necessary to pay attention to maintenance and maintenance, and replace fuel, oil and filters in time to ensure the normal operation of the fire pump.

The diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump. The diesel engine fire pump has the advantages of long head and wide application range, and can meet the fire water supply in multiple places such as warehouses, docks, airports, power plants, liquefied gas stations, and petrochemical industries.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

Functional description of fire pump control system, which is composed of electric motor fire pump, diesel engine fire pump, common chassis, water outlet pipeline and various valves. The operation of the unit is operated by hand. The diesel engine fire pump is equipped with a fuel tank with a running capacity of 6 hours. The electric fire pump set has a starter cabinet and a manual button box, which is convenient and feasible to operate. In addition to the entire structure of the manual control unit, the automatic motor fire pump unit and diesel engine fire pump unit also have an automatic control panel mainly composed of PLC. Automatic control panel function The automatic control panel receives the fire alarm signal.

Diesel fire pumps are generally used as backup equipment, and will only start automatically when the fire signal arrives, the electric pump fails or the power is cut off. After the ultra-low pressure starting device is equipped, the matching electric water pump control cabinet should also be equipped with an ultra-low pressure starting device, and the pressure difference between the two should be the lower limit. This series of products has a large range of lift and flow, which can fully meet the needs of the dock , warehouse, liquefied gas station, petrochemical, airport, power plant, textile and other industrial and mining enterprises fire water supply.

Fire pump set manufactured by Better Technology CO., LTD. In accordance with the Chinese national standard GB27898.5-2011 fixed fire water supply equipment part 5 “fire double power water supply equipment” hereinafter referred to as “packaged fire pump”, “ Fire Pump Set” or “fire pump packages” and National Fire Protection Association’s NFPA20 “Standard for the Installation of Stationary Pumps for Fire Protection”(2016). and meet the latest Chinese national standard CCCF certification requirements and obtain a certificate. Fire pump package is one of the reliable products in fire water supply equipment.
The minimum fire rated working pressure of fire pump package is 0.3MPa, and the minimum fire rated working flow is 2L/S. The fire pump package includes at least two types of motor pump sets, engine pump sets, jockey pump sets, diaphragm pressure tanks, pipes, valves, electrical control systems, control sensors and other related accessories driven by the power source. Fire water supply equipment continuously supplies water to the fire pipe network. The reasonable layout, the firm installation, the reliable connection, the compact and tidy structure, and convenient for maintenance and overhaul.

XBC diesel engine fire pump set is the latest according to the national standard GB6245-2006 “fire pump performance requirements and test methods”. This series of products has a wide range of lift and flow, and can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

The lifespan of a fire pump depends on factors like maintenance, usage, and environmental conditions. With proper maintenance, fire pumps can last for several decades.

Fire pumps are designed to run continuously during a fire emergency. They must be able to sustain operation for the duration required to control or extinguish the fire, which can be several hours.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Using a fire pump efficiently and reasonably is crucial to ensure its optimal performance and effective firefighting capabilities. Here are some key considerations for using a fire pump efficiently:

Proper Sizing: Ensure that the fire pump is properly sized for the specific application.

Regular Maintenance: Perform regular maintenance on the fire pump to keep it in optimal condition.

Optimal Operating Speed: Operate the fire pump at the optimal speed based on the required flow rate and pressure.

Water Management: Manage the water supply efficiently to avoid unnecessary waste.

Training and Familiarization: Provide training to firefighters and operators on the proper operation of the fire pump.

Monitoring and Control: Utilize monitoring and control systems to optimize pump operation. These systems can provide real-time information on flow rates, pressures, and energy consumption. Use this data to adjust operating parameters as needed and identify any anomalies or inefficiencies that may require attention.

Shut Down When Not in Use: When the fire pump is not actively needed, consider shutting it down to conserve energy and reduce wear on the equipment.

Record Keeping: Maintain records of pump operation, maintenance activities, and any performance issues.

Efficient and reasonable use of a fire pump not only helps conserve resources but also ensures its readiness to combat fires effectively. By following proper operating procedures, conducting regular maintenance, and promoting a culture of efficiency among operators, the fire pump can operate optimally and provide reliable firefighting capabilities when needed most.

A fire pump is a critical component of a fire sprinkler system. It is designed to increase water pressure and flow for firefighting. It works by drawing water from a reliable source and boosting its pressure to ensure effective water distribution through sprinklers or hoses.

Diesel fire pumps are suitable for the discharge of heavily polluted industrial wastewater, sewage discharge stations in major residential areas, water distribution systems in urban sewage treatment plants, drainage stations in civil air defense systems, water supply equipment in waterworks, sewage discharge in hospitals and hotels, municipal engineering construction sites, mine auxiliary machines , Rural biogas digesters, farmland irrigation and other industries. Sewage and dirt with conveyor belt particles can also be used for clean water and weakly corrosive media.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

The EDJ series fire diesel electric fire pump unit (fire dual power pump unit) is based on the traditional fire protection system of GEM, which combines electric fire pump, booster regulator pump, diesel fire pump, regulator tank and supporting valves, Piping is combined on the same skid-mounted common base. The pump set can provide safety guarantee for fire emergency, and the diesel engine has the function of speed regulation, which makes the use and adjustment range of the unit equipment more extensive.

Prior to installation, fire sprinkler systems are hydraulically calculated to ensure adequate water flow and that the system can reliably suppress a fire until fire crews arrive. When it is determined that there is insufficient flow from a municipal supply for the system to function properly, a fire pump is installed. The fire pump activates when the sprinkler system pressure falls below a certain threshold as a result of sprinkler head operation. To maintain the required operating pressure of the sprinkler system, the fire pump draws additional water from the municipal water supply or on-site storage tanks. Due to the size of piping systems and pressure loss, fire pumps are frequently required in high rise construction and large area buildings.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1. Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
2. Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

Troubleshooting common issues with fire pumps involves systematic checks of components, electrical systems, and fluid dynamics. Regular maintenance and having a qualified technician perform diagnostic tests are essential.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Containerized fire pump system which consist of electric fire pump, diesel engine fire pump and jockey pump, with booster pump system
