Coupled Foot Mounted End Suction Pumps

ISO series single stage centrifugal pump is a single-stage single-suction centrifugal pump product developed by China Better Technology Co, Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard. This product combines the strengths of similar products at home and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.

Type D & DG multistage pumps are used for feeding low and middle pressure boiler water or for pumping other middle pressure water. The temperature of pumped medium oftype D are not more than 80C and type DG110℃
Type D& DG pumps are horizontal single-suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontal and that of type DG is vertically up. The position of discharge port is arranged vertically up.
The shaft sealing of these pumps are sealed with soft-packing. At the location of the shaft sealing, there is a renewab le sleeve to protect the shaft.
The pumps are directly driven by the motor through the flexible coupling.
The rotating directions of the pumps are clockwise, when viewed pump from the driving end.

ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy-saving, environment-friendly horizontal
centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts
domestic general performance parameters of centrifugal pumps. In addition, according to different operating temperatures and mediums,
we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH), and oil pump (ISWB). This pump enjoys excellent perfor- mance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

Submersible pump is an important equipment for deep well water extraction. During use, the whole unit works in the water to extract groundwater to the surface, which is used for domestic water, mine rescue, industrial cooling, farmland irrigation, sea water lifting, ship load regulation, and fountain landscape.

Flow：250-10000 GPM
Head： 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

·UL Standard
Flow：100-2500 GPM
Head：90-250 PSI
·NON-UL Standard
Flow：250-10000 GPM
Head：30-200 m / 3-20 Bar / 40-290 psi

The IS series single-stage centrifugal pump is a reliable and versatile solution for fluid transfer applications. Known for its simplicity and ease of use, this horizontal centrifugal pump is designed to efficiently transport clear water and fluids with similar properties. With a compact structure and convenient maintenance, the IS pump offers stable and low-noise operation, making it suitable for a wide range of industrial, agricultural, and municipal tasks. Whether it’s for industrial cooling systems, municipal water supply, agricultural irrigation, or firefighting applications, the IS single-stage centrifugal pump provides efficient and dependable liquid handling. Its durable construction and corrosion-resistant materials ensure long-lasting performance.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.
This product combines the strengths of similar products in China and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.

Single-suction pump, also known as end-suction pump, has the advantages of stable operation, simple structure, simple repair and maintenance, convenient installation and small footprint. The single-suction pump has low cost, reasonable price and wide application. The flow rate of the single-suction pump is smaller and the flow rate is equal. The volume of the single-suction pump is smaller, but the axial force is large and the bearing load is large.

The submersible axial-flow pump is a special type of submersible pump designed for handling large flow rates with relatively low head conditions. It has a wide range of applications, including agricultural irrigation, urban water supply and drainage, municipal flood control and emergency rescue, as well as various water conservancy projects.

Vertical turbine electric pump are better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

A fire pump is a critical component of a fire protection system. It is designed to increase the pressure and flow of water to ensure an adequate water supply for firefighting.

ISO single-stage single-suction centrifugal pump is a new generation of energy-saving and environmentally friendly horizontal centrifugal pump independently developed by the staff of Beide Technology Group and domestic water pump experts using the domestic excellent hydraulic model and the performance parameters of domestic general centrifugal pumps. Different from the ISW basic centrifugal pump, it has the characteristics of excellent performance, high reliability, long life, reasonable structure and beautiful appearance, and has the industry leading level.

The pipeline pump is a type of single-stage single-suction centrifugal pump. The structure is a vertical structure, the inlet and outlet are located on the same line, the inlet and outlet diameters are the same, the shape is similar to the pipeline, and it can be installed in any position of the pipeline, so it is called a pipeline centrifugal pump. Ordinary pipeline pumps have no self-priming ability, but self-priming pipeline pumps have strong self-priming.

UL Flow:50-500GPM
UL Head:6-16 Bar / 90-230PSI

Flow：50-5000 GPM
Head：3-16 Bar / 40-232 psi
Power：11-1000 kw
Frequency：50 or 60 Hz

Horizontal fire pump is a common fire-fighting equipment, which is used to supply water source and pump water source, and plays an important role in the fire-fighting process. Compared with vertical fire pumps, horizontal fire pumps are more stable and have higher efficiency. In this article, we will analyze the structural characteristics and scope of use of horizontal fire pumps.

Flow：50-5000 GPM
Head：3-16 Bar
The XA series single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

The XBD-W horizontal type single stage single suction fire extinguishing pump group, not is similar for the transportation including solid particle’s clear water and the physico-chemical properties to water liquid, mainly uses in the fire prevention system pipeline turbo-charged supplying water, also suitably gives draining water in the industry and the city, the high-rise construction turbo-charged supplies water, the long-distance range to supply water, the heating, the bathroom, the boiler changes in temperature water cycle, the turbo-charged air conditioning refrigeration system to supply water and the equipment necessary and so on situations. This department produces XBD-W fire extinguishing pump group its performance, the engineering factor conform to national new promulgation GB6245-1998 “Fire extinguishing pump Performance requirement And Testing method” the standard request, the product examine the central test after the national fire prevention equipment quality surveillance to be qualified, obtain the Shanghai fire prevention product approval certificate.

Regular maintenance should be performed weekly, monthly, and annually. Weekly inspections typically involve checking the pump house conditions, while monthly and annual checks include running the pump and testing its components.

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

The fire pump is known to be used in fire -fighting pumps. It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. Fire prevention system. The performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Method” standard.

Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

Stainless steel deep well pump with rust, no pollution, long life, energy saving and other characteristics, the product of high head, general deep well pump longer, higher head.

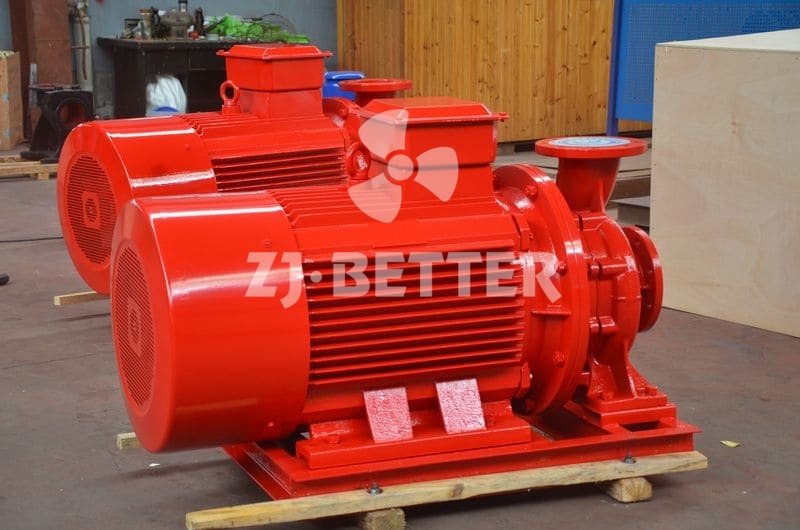

The XBD-W horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the XBD-W horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

Flow：50-7500 GPM
Head：3-20 Bar
Vertical Turbine Fire Pumps play a versatile role in various applications. They are essential in water management, agriculture for irrigation, and industrial processes dealing with different liquids. These pumps excel in emergency fire response, ensuring a swift and reliable water supply. Crucial for urban water systems, they meet the constant demand for clean water. With resilience to saltwater and corrosion, Vertical Turbine Fire Pumps are indispensable in marine engineering tasks such as drainage. In essence, these pumps provide robust solutions across diverse needs, spanning water management, emergency response, agriculture, and marine applications.
