Customized DJ Fire Pump Set According to Customer Requirements

The electric fire pump set is composed of electric pumps and pressure-stabilizing pumps, and is mainly suitable for fire-fighting equipment in warehouses, docks, airports, petrochemicals, power plants, liquefied petroleum gas, textiles, ships, and oil tankers.

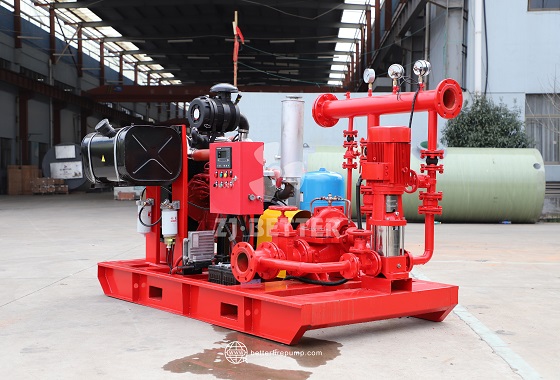

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

The application of diesel engine fire pump is also more and more extensive. Diesel engine fire pump is a common necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. The diesel engine fire pump is installed together with the electrical instrument, with complete functions, compact structure, automatic fault alarm, accepting the starting signal, and can automatically complete the starting procedure and run at full load quickly. , enough to ensure that the diesel engine fire pump starts in a low temperature environment, the entire system of the diesel engine fire pump is safe, reliable, and easy to use.

Fire pump components:
1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. Pipeline supplementary pressure pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Product Overview
Product Introduction of EDJ Fire Pump System
1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

It depends on the type of fire pump and the specific design of the system. Generally speaking, most fire pumps should be set to automatic mode in order to ensure that they operate when needed. However, in some cases, manual mode may be more appropriate and necessary.

The EDJ 2000kw 10kv Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pumps are critical components of fire protection systems, and their reliable operation is essential for effective fire suppression. However, like any mechanical equipment, fire pumps can experience various issues over time. Some common problems associated with fire pumps include:

Now the general diesel engine fire pump set is powered by imported or domestic Cummins, Wuxi Power Engine Factory and other diesel engines produced by large-scale key enterprises in the internal combustion engine industry at home and abroad, through highly elastic couplings or diaphragm couplings produced by professional manufacturers. The engine is directly connected with the water pump, and the power of the diesel engine can reach 880KW. It can be equipped with water pumps of different lifts and flow rates for customers to choose and use according to different needs.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

Spectrum range: fire pump can use a single-stage end suction pump,a combination of multistage single-suction pumps, single-stage double-suction pumps and other kinds of pumps, pump or more kinds of parallel flow, wide pressure range.
Automatically. when the engine fire pump receives a valid signal fire, remote control start signal when the unit will start automatically; when the fire pump motor supply failure or lack of signal phase, the unit will automatically standby. Diesel fire pump start 10s, if not start running, stop 10s, and then restart. The unit will automaticaly repeat three times.
Alarm System: repeatedly failed to start alarm, low diesel engine oil pressure alarm, ultra-high temperature alarm diesel engine, diesel engine speed alarm, low battery alarm, charging failure alarm, an alarm indicating a lack of fuel.
kinds of ways to start signal fire started, manually start or remote start.

outdoor fire pump set which is no need to build the fire pump house, it can put outdoor directly.

The motor fire pump set is a fire pump powered by an electric motor, and generally consists of a group of fire pumps, motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

A multistage pump is a multistage centrifugal pump in which two or more impellers are installed on the pump shaft and connected in series to work together. A horizontal multistage centrifugal pump refers to a multistage pump in which centrifugal pumps with two or more impellers are combined. The multistage centrifugal pump is characterized by high efficiency and energy saving, wide range of use, special purpose, stable operation, long service life, convenient installation and maintenance, etc.

Diesel engine fire pumps are used more and more widely. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

Non-UL Flow：30-9000 GPM
Non-UL Head： 3-20 Bar (40-300 psi)
UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The fire pump is usually equipped with a local control cabinet. The control cabinet does not have a transfer control switch for automatic and manual conversion, but the automatic control loop leaves start and stop contacts, which are connected to the fire alarm system control module. In addition, according to the relevant regulations, the system using the bus linkage control should also be set in the fire control room with buttons that can directly start and stop the pump. When the fire alarm system receives the signal of the fire hydrant start pump button, the control module automatically starts the fire pump and collects its feedback signal.

The box-type fire pump set can be used outdoors, without the need to build an additional pump room, saving costs, small footprint.There is a complete set of standard EDJ fire pump set in the box, which is composed of electric pump, diesel pump and stabilized pump, equipped with control cabinet, which is more convenient to use.

The National Fire Protection Association (NFPA) has established standards and guidelines governing the installation and maintenance of fire pumps. NFPA 20, the Standard for the Installation of Stationary Pumps for Fire Protection, provides comprehensive requirements for fire pump design, installation, testing, and maintenance.

Compliance with NFPA 20 standards is essential to ensure that fire pump systems are installed and maintained in a manner that meets nationally recognized safety practices. These standards help ensure the reliability and effectiveness of fire pumps in protecting lives and property during fire emergencies.

750gpm fire fighting package set

120≤ Q≤1000GPM
H＜150m
The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

A fire pump is a critical component of a fire sprinkler system, providing the necessary water pressure to ensure the sprinkler system works properly. Fire pumps are usually powered by electric motors or diesel engines and they come in centrifugal, turbine, or rotary types.

To ensure that the fire pump is working properly, it is important to maintain and test it regularly. Regular maintenance tasks include inspecting the motor and fuel system, changing the oil, and checking the battery. Testing the pump pressure and flow rate should also be done on a regular basis. If any issues are found, it is important to contact a professional for assistance. A trained technician should also inspect the fire pump annually.

CDL stainless steel vertical multistage pump has the remarkable characteristics of small size, light weight, high efficiency, energy saving, low vibration and noise, smooth operation, long service life, vertical installation, small footprint, light weight and beautiful appearance.

ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

This fire pump set can be used outdoors, integrated pump station, no need to build another pump room, cost saving, composed of electric pump + diesel pump + jockey pump, three pumps automatically start and stop, when the stabilizer pump detects When the electric pump fails to run normally, the diesel engine pump starts automatically, which is not affected by the mains, and can also be used when the power is cut off. The fire pump set is widely used in various emergency firefighting occasions.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1. Perform regular maintenance on the fire pump as recommended by the pump manufacturer.

2. Visually inspect the fire pump periodically and repair any damages or leaks detected.

3. Make sure that the fire pump is adequately cooled and lubricated as specified by the manufacturer.

4. Test the fire pump regularly with a suitable hydrostatic pressure test to ensure that it is functioning as designed.

5. Replace the seals of the pump regularly as necessary.

6. Ensure all electrical connections are proper and secure to avoid short circuits or other electrical problems.

7. Keep the fire pump area clean and free from dirt, dust, and debris.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
