Diesel Engine Dual Power Fire Pump System

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump set are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. At the same time According to the material quotation required by the customer, accurate selection is conducive to on-site use and reduces failure problems.

Diesel engine + electric drive fire pump set is a fire-fighting equipment tailored by Better Technology Group for foreign customers. It can be driven by diesel engine or electric drive. The product has high operating efficiency, stable operation, low noise and compact structure. , suitable for use in European and American countries. The diesel engine + electric dual-drive fire pump set is also called dual-power fire pump set. It has a beautiful appearance and a wide range of applications. It can provide one-to-one certification and AB signature.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

Fire pumps are more expensive than ordinary water pumps because they must meet specific fire protection standards and are built to handle high temperature and pressure water. They also have additional features, such as larger motors, to rapidly provide the necessary flow rate to meet fire protection requirements.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action driving circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

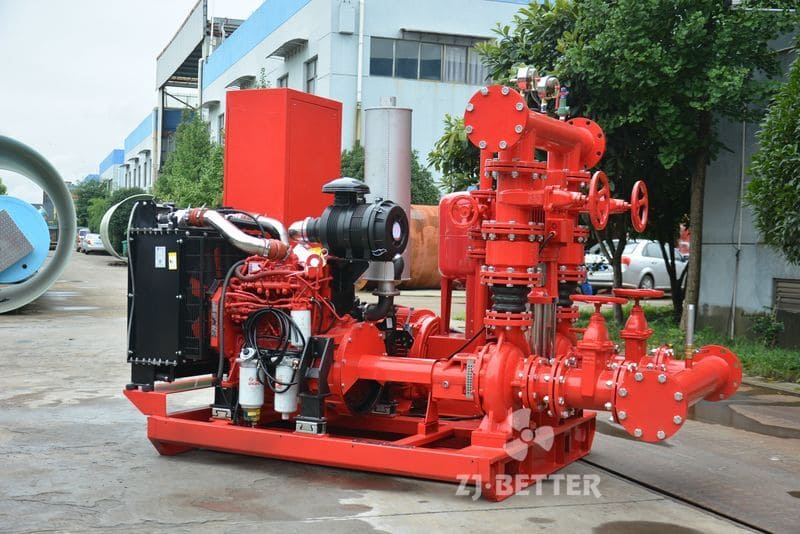

These pictures display a fire pump set consisting of diesel engine fire pump and jockey pump along with a control panel and accessories.

Electric fire pumps are driven by electric motors, and are divided into horizontal, vertical and many other structural varieties. The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance. Although electric fire pumps have the advantages of simple operation and maintenance, most fire protection system design specifications stipulate that when electric fire pumps are used, they should have the conditions for dual-circuit power supply, and diesel engine fire pumps are usually used as backup pumps.

Jockey pumps help extend the lifespan of fire pumps by maintaining system pressure and preventing unnecessary cycling of the main fire pump. By handling minor pressure fluctuations and small leaks, jockey pumps reduce the wear and tear on fire pumps, which would otherwise start and stop frequently to maintain pressure. This reduced cycling minimizes mechanical stress on the fire pump’s components, such as bearings, seals, and impellers, thereby prolonging its operational life. Additionally, jockey pumps consume less power and operate more quietly than fire pumps, leading to energy savings and reduced noise pollution in facilities. By ensuring that fire pumps only operate during actual emergencies, jockey pumps contribute to the long-term reliability and efficiency of the fire protection system.

A fire pump is a critical component of a fire protection system. It is designed to increase the pressure and flow of water to ensure an adequate water supply for firefighting.

Fire pump is a general term for special pumps involved in water supply of various fire systems. The fire pump model is XBD. Fire pumps must be tested and approved by relevant national units before they can be used in various fire protection systems in buildings, such as: fire hydrant system, sprinkler fire extinguishing system, foam fire extinguishing system, large space high-altitude water cannon, water mist fire extinguishing system, rain shower fire extinguishing systems, water curtains, etc.

A fire pump is part of the water supply for a fire sprinkler system and is powered by electricity, diesel or steam. It uses water from an external source to increase water flow and pressure. The pump inlet is either connected to a public groundwater supply line or to a static water source. The pump provides higher pressure water flow to the sprinkler system risers and hose risers. Fire pumps must be tested monthly and annually to ensure they are operating as designed. These two different tests are called the monthly “churn” test and the annual flow test.

EDJ fire pump set is composed of diesel engine pump + electric pump + vertical jockey pump. Diesel fire pumps are typically used where there are potential reliability issues with the local power grid, with available flows of 50-5000GPM.

Flow: 30-9000GPM
Head:3-20Bar
Caliber: 25-800mm
Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed: 740-2900r/min
Material:SS304, Bronze

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions

25≤Q≤100GPM
30≤H＜120m

The minimum fire rated pressure of EDJ small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Firefighting pumps can be powered by various sources, including gasoline engines, diesel engines, electric motors, and even manual operation in some cases. The choice of power source depends on factors such as portability, availability of fuel, and the intended application.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has an ultra-low pressure start-up device, the matching electric water pump control cabinet should also have an ultra-low-pressure start-up device, and the lower limit of the two pumps should have a certain pressure difference. Of course, according to customer requirements, design a control system that is more suitable for customer needs.

The diesel engine fire pump and the electric fire pump are “one standby and one use”. The control boxes of the diesel engine fire pump and the electric fire pump should be kept independent of each other, and the diesel engine fire pump must be used as the backup pump of the electric fire pump, and cannot be used as backup for each other.

The pump start signal in the fire extinguishing system is directly connected to the electric fire pump control box, and it is not suitable to be connected to the diesel engine fire pump control box at the same time. The pump start fault signal of the electric fire pump control box and the pump start signal in the fire extinguishing system are used as the automatic start pump start signal of the diesel engine fire pump control box, and the line is connected to the control box of the diesel engine fire pump. The pump start failure signal of the diesel engine fire pump control box received an alarm from the fire control center. After receiving the alarm, the authorized personnel rushed to the pump room to force the diesel pump to start in an emergency.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

No, a fire pump should never run without water. Running a fire pump dry can cause significant damage to the pump’s internal components, leading to overheating and failure. Ensuring the water supply is reliable and monitored is essential for proper fire pump operation.

The EDJ fire pump set equipment produced by Better Technology Group Co., Ltd. is composed of electric fire pump and diesel fire pump. It is designed and manufactured according to the fifth part of GB 27898.5-2011 fixed fire water supply equipment <>, in line with the new 3CF Require certification and obtain 3CF certification for fire protection products.
