Diesel engine fire pump has automatic, manual and fault self-inspection functions

Scope of Performance
Caliber: 65~350mm
Flow Range: 5~250L/s
Pressure: 0.3~1.5MPa
Matching Power: 4~610kW
Working Pressure: ≤1.6MPa

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

In order to match the service cycle of the fire pump, the inspection of the diesel engine and the fire pump should be regularly checked, and the parts to be replaced or repaired should be adjusted and corrected in a timely manner. We need to check the fuel tank reserves and oil quality of the diesel engine fire pump every day; the usage of the battery; the cooling system, etc., the pump shaft, impeller, bearing, and the wear of the water pipe and filter screen of the water pump. (Diesel engines of different brands may be different, and should be checked and maintained according to the specific model and structure of the diesel engine).

The minimum fire rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel engine fire pump set has the characteristics of good starting performance, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable operation, etc. The unit is equipped with first-level protection functions for overspeed, low oil pressure, three engine failures, high water temperature, low oil level, and low battery voltage. At the same time, the fire pump can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system, and the characteristics of the diesel engine fire pump group can realize the function of remote monitoring.

The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability. Elevate your fire safety standards with this powerful solution and gain peace of mind knowing that your property and lives are protected. Choose the Outdoor Fire Pump Set and experience the ultimate fire protection solution.

In cold climates or areas prone to extreme weather, fire pumps face unique operational challenges that require careful design and maintenance. Freezing temperatures can cause water to freeze in the pipes, potentially damaging the fire pump and other components of the fire suppression system. To mitigate this, fire pumps may be installed in heated enclosures, and antifreeze solutions or dry-pipe systems are often used to prevent freezing. Jockey pumps help maintain system pressure, but in extreme weather, they must be monitored closely to ensure they don’t overcompensate for changes in pressure caused by temperature fluctuations. High winds, flooding, or snow accumulation can also impact the performance of fire pumps, especially in outdoor or exposed installations. Ensuring that fire pumps have robust weather protection, backup power supplies, and regular winterization procedures is critical for maintaining their reliability in harsh conditions. Additionally, these pumps should be designed with durable, weather-resistant materials to withstand long-term exposure to extreme environmental factors while still delivering dependable fire protection.

All accessories of EJ small fire complete water supply equipment are assembled according to the standard (NFPA20). Its configuration depends on the customer’s needs, or the number of pumps and the type of electric pump. EJ small fire pump group consists of electric pump and jockey pump. EJ small fire-fighting complete set of water supply equipment has reasonable layout, firm installation, reliable connection, compact structure, neatness and convenient maintenance.

The equipment is suitable for fire water supply and emergency water supply in various occasions such as warehouses, docks, airports, petroleum, chemical, factories, power plants, liquefied gas, textiles, ships, cruise ships, etc.

DJ fire pump set 30gpm at site
diesel engine fire pump 30gpm, 3bar with 10gpm, 4bar with controller and accessories.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

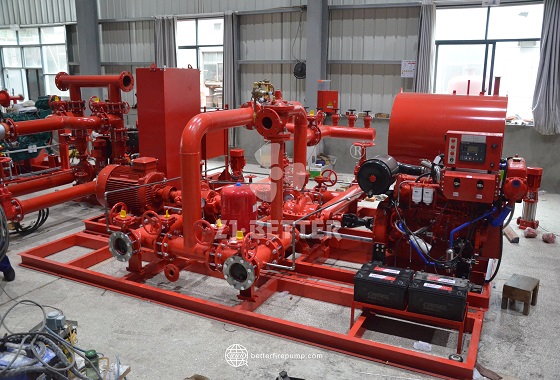

The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

DJ fire pump is composed of diesel engine pump + jockey pump, which can be operated in any fire-fighting occasion,diesel engine fire pumps can work without electricity and are widely used.
Our company has professional technicians and sales staff, who can customize products according to their own needs.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

We proudly showcase high-quality fire pump sets and highly recommend the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set, providing excellent performance and reliability for your fire protection system. The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is designed for large-scale fire applications. It possesses powerful capacity and efficient performance, ensuring your fire protection system can respond quickly in emergency situations and deliver sufficient water pressure and flow.

Whether it is for fire protection systems, industrial applications, or municipal projects, the Split Case EDJ fire pump set is capable and ensures efficient operation.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Packaging with iron frame suitable for export transport

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is indeed high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use. Leading the pipeline tools.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc., fast automatic start and self-priming, and self-priming after dry running. Heavy-duty pump bearings – longer life; other parts are made of high-quality copper and stainless steel or customized by customers. The high-efficiency open impeller design of the diesel engine fire pump can handle large solids and abrasive materials while maintaining a high flow rate, and the large-capacity air treatment can be used for more “well point dewatering projects”.

Fire sprinkler systems are an important part of life safety in buildings. International building codes allow some exceptions when buildings are “fully watered”, such as reducing rated spacing, reducing hydrant flow requirements, increasing exit travel distance, and increasing building height and area. These exceptions are allowed so that in the event of a fire, the sprinkler system will suppress the fire enough that occupants can safely evacuate the building and that the spread of the fire is contained before the fire department has fully arrived to extinguish it.

Fire pumps are designed to adapt to varying water supply conditions, such as fluctuating pressures or varying water levels in a reservoir. They achieve this through features like variable speed drives, which adjust the pump’s speed to maintain consistent water pressure and flow, regardless of changes in the supply.

1. Whether the fire equipment is in good condition, including whether the fire extinguisher is leak-proof and whether the alarms, lights, fire hydrants, fire doors and other equipment are working properly.

2. Whether the personnel of the unit have received professional fire safety training.

3. Whether the layout of the office space follows the fire safety regulations, such as whether the aisle and emergency routes are unblocked and whether the relevant structural objects are in good condition.

4. Whether the management of flammable and explosive materials meets the relevant regulations and whether their storage places and transportation are kept in good condition.

5. Whether the fire exits are unobstructed and clear, and whether the signage and lighting is normal.

6. Whether the underground pipelines, cable linings, and other equipment that are easy to cause a fire accident are managed in accordance with relevant regulations.

7. The integrity and security of the fire-fighting equipments.

8. Whether alarm systems are set up in the internal and external parts of the structures and at important points in the facilities.

9. Whether the fire-fighting system is in good condition and whether the drafting of emergency evacuation plans is in compliance with applicable regulations.

Electric fire pump with jockey pump. 300gpm,8bar

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, storage and other places, and the performance requirements and quality requirements are different. The commonly used types of fire pumps are vertical electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multiple Level fire pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

EDJ fire pump is an important part of the electric fire pump, diesel engine fire pump and regulator pump, the electric fire pump can’t normal put into use, the diesel engine fire pump set automatically in normal operation to ensure that the fire extinguishing, diesel engine fire pump group configuration of various automatic functions, meet the requirements of standard, ensure the long-term normal standby, ready for the fire fighting work.

Standard EDJ fire pump set consists of electric pump + diesel pump + jockey pump.The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

The fire pump is mainly used for pressurizing water supply in the pipeline of the fire fighting system. It can also be used in industrial and urban water supply and drainage, high-rise buildings and water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurized air conditioning refrigeration system water supply and equipment matching and other occasions. The fire pump produced by Better Technology Group Co., Ltd. has the advantages of simple structure, stable performance, high speed, small size, light weight, high efficiency, large flow, easy operation and maintenance.
