Diesel engine fire pumps are widely used in emergency water supply for large-scale projects

Diesel engine fire pump sets are mainly suitable for fire water supply and foam fire extinguishing systems in petrochemical, natural gas, power generation, cotton and linen textiles, warehouses, airports, docks, high-rise buildings and other industries. It can also be used in occasions such as water ships, offshore oil tankers and fire fighting ships. The unit adopts imported diesel engine and fire pump. It has the characteristics of quick start, reliable water diversion, reasonable power reserve, stable operation, high degree of “three modernizations”, wide range of pressure and flow, etc. It is an advanced and reliable fire-fighting equipment.

The EJ fire pump set consists of an electric pump and a jockey pump. The electric pump adopts an XA pump, and the jockey pump adopts a CDL pump. The flow rate of this pump is 500gpm and the lift is 130psi. It is manufactured in strict accordance with customer requirements. It is cast iron, the impeller of the electric pump is made of cast iron, the pressure jockey pump is made of stainless steel, and the seals of the pumps are all mechanical seals, which will not leak.

Small flow fire pump assemble process
This is for Philippines order for us, and flow as 50gpm 6bar
Normal use for small shop and hotel project

Controllers ready to dispatch
This is the controller for jockey pump, electric pump and fire pump set

Power surges or electrical disturbances can impact the operation of electric fire pumps. Proper surge protection measures, such as surge suppressors and lightning protection, should be in place to safeguard the electrical components of the fire pump system.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

EDJ diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pumps; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems; suitable for Various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

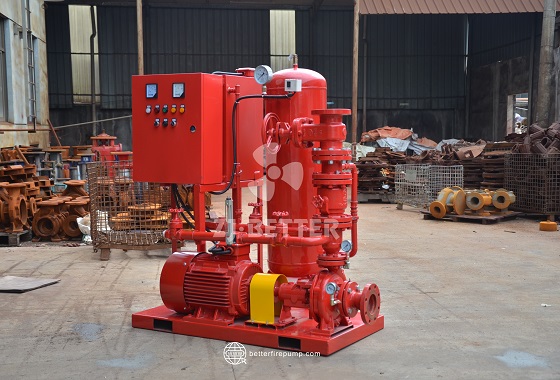

The pressure stabilizer pump is a kind of fire pump. It is used to stabilize the pressure of the automatic sprinkler system and the fire hydrant water supply system, so that the water pressure of the system is always in the required pressure state. Water volume and water pressure.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Fire pumps are more commonly used in commercial and industrial settings. Residential buildings often rely on municipal water pressure for fire protection. However, in some cases, residential structures with specific design requirements may incorporate fire pumps.

Fire pump package comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

The EDJ fire pump unit is suitable for various fire boosting and pressure stabilizing pump occasions; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems; suitable for various oil depots, oil loading and unloading docks, logistics parks and other fire protection levels demanding places.

Using Instruction:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

The DJ Fire pump set is made of Diesel fire pump+Jockey pump.
Application Scope：Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

The tank-pump integrated fire water tank includes a water tank, an air pressure water tank, a water pump unit, an electric control cabinet, a liquid level instrument, a pipeline, a bottom plate, and an internal and external ladder. The water tank, the air pressure water tank and the bottom plate are connected as a whole, and the water pump unit Located on one side of the water tank, the electric control cabinet is arranged in the water tank, the pipeline is connected with the water pump unit and the water tank, and the inner and outer ladders are connected on the side of the water tank. The fire-fighting equipment of the utility model is simple in structure, low in cost and easy to install. While meeting the fire-fighting needs, the project cost, construction period and floor space are reduced.

Fire pumps are subject to rigorous testing and maintenance protocols to ensure they are always ready to operate in an emergency. This typically includes regular weekly or monthly churn tests, where the pump runs without discharging water, and annual flow tests, which verify that the pump can achieve its rated flow and pressure. These tests are crucial for identifying potential issues, such as wear and tear on components, blockages in the piping, or problems with the power supply. Additionally, fire pumps must be inspected for leaks, corrosion, and other signs of deterioration. Regular maintenance, including lubrication, alignment checks, and part replacements, helps extend the pump’s lifespan and ensures its reliability when needed most.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pump sets are used in fire hydrant fire extinguishing systems and automatic sprinkler fire extinguishing systems in fixed fire extinguishing systems of enterprises, institutions, engineering construction, high-rise buildings, etc. It can transport clear water below 90 °C without solid particles and has similar physical and chemical properties. The water-based medium can also be used for fire protection, domestic and production shared water supply systems and construction, municipal water supply and drainage, etc.

The equipment is designed to have one duty and one standby function. The main electric pump runs normally, and the standby diesel pump starts automatically after the main pump fault . The Jocky pump will start and stop based on the pipe pressure, Control panel site start.

Diesel engine fire pumps are usually used as a backup facility, and will only start automatically when the electric water pump fails or the power is cut off when the fire signal comes. When equipped with an ultra-low pressure pump starting device, the matching electric pump control cabinet should also be equipped with an ultra-low pressure pump starting device, and the lower limit of pump starting should have a certain pressure difference. Of course, it is also possible to design a control system that is more suitable for customer needs according to customer requirements.

The diesel fire pump set is easy to maintain, has a high degree of automation, reliable performance, and a wide range of equipment pressure and flow. XBC type automatic diesel engine fire pump set, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in fire water supply under unexpected circumstances such as no power supply or abnormal power supply (mains power).

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

Fire pumps are widely used in environmental protection, water treatment, fire protection and other departments. They are mainly used for pressurized water supply in fire protection system pipelines. They are also suitable for industrial and urban water supply and drainage, high-rise building depressurized water supply, long-distance water supply, heating, bathroom, boiler cooling and heating. Water circulation pressurized air-conditioning refrigeration system water delivery and equipment matching and other occasions.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1. Make sure the fire pump is regularly inspected and tested according to the manufacturer’s recommendations.

2. Inspect all electrical components and wiring to ensure they are in good working order.

3. Ensure the fire pump is properly lubricated and any worn parts are replaced.

4. Check the suction and discharge valves for proper operation.

5. Inspect the motor and its bearings for signs of wear or damage.

6. Test the fire pump for pressure, flow, and suction.

7. Clean the fire pump, its components, and the surrounding area regularly.

8. Ensure any repairs or maintenance is done by a certified technician.

The diesel engine fire pump unit is directly driven by the diesel engine fire pump, and it is a mechatronic equipment that can start and complete the water supply in a short time. The diesel engine pump set is driven by a diesel engine without external power supply. Diesel pumps are suitable for fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, and textiles. Especially in the case of no electricity and dissatisfaction with the grid, choosing a diesel engine-driven water pump is the safest choice.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.
