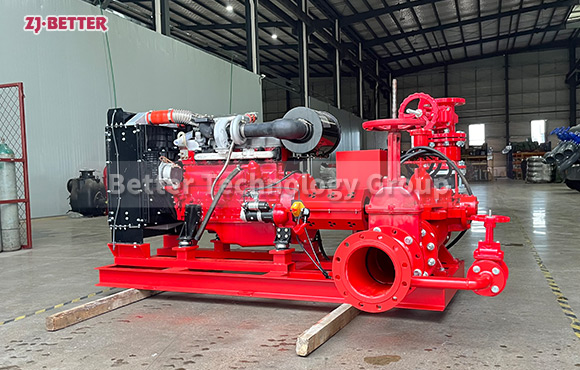

Diesel engine split case fire pump

Flow：500 GPM
Head：140 PSI

The Diesel Engine End Suction Fire Pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

Diesel engine fire pump XBC-D equipment is powered by X6135, 12V135, 4102, 4105, 6102 and other series diesel engines. The diesel engine (can be equipped with a clutch) is connected with the fire pump through a highly elastic coupling to form a fire pump group. The unit also includes a diesel tank. , cooling water tank, fan, control panel (for automatic units) and other components.

Diesel engine fire pump is mainly composed of diesel engine, fire pump, coupling, fuel tank, radiator, battery pack, intelligent automatic control panel, etc. Better Technology Group Co., Ltd. has strong technical force, rich production experience and perfect testing methods to ensure the stability and reliability of product quality.

ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.
In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

XBC-D Diesel Fire Pump Set is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, the XBC-D Diesel Fire Pump Set ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

With a flow rate of 2000 gallons per minute and a pressure rating of 100 pounds per square inch, it provides an unprecedented volume of water to rapidly and effectively extinguish fires. With a robust diesel engine and top-grade components, it ensures uninterrupted operation, offering uncompromising protection for lives and property. Whether it’s industrial facilities or commercial complexes, this pump set exhibits outstanding versatility and can seamlessly integrate into existing fire protection systems, providing comprehensive fire safety coverage. Through optimized design, it maximizes water flow while minimizing energy consumption, ensuring efficient firefighting operations. Compliant with global fire safety standards, it delivers reliability and compliance, instilling confidence in fire departments, industrial facilities, and property owners, offering maximum protection for what matters most.

Split case diesel engine fire pump combines the features of a split case fire pump with the reliability and independence of a diesel engine-driven system. This configuration is commonly used in applications where a dependable source of power is crucial to maintain fire protection capabilities during power outages or in remote locations. Here are the key features of a split case diesel engine fire pump:

Flow：80-2700 GPM
Head：10-24 Bar 145-350 psi
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤2.5 MPa

The XBC-S Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations. The XBC-S Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Flow：80-2700 GPM
Head：10-24 Bar
XBC-D Diesel Fire Pump Set is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, the XBC-D Diesel Fire Pump Set ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

The main advantage of the hand-held diesel fire pump is the high lift, which can reach 90 meters. It is generally used for fire emergency fire prevention, forest emergency fire prevention, and factory fire protection. When the diesel engine fire pump is working, the auxiliary impeller is together with the pump main shaft Rotating, the liquid in the auxiliary impeller will also rotate together, and the rotating liquid will generate an outward centrifugal force. On the one hand, this centrifugal force resists the liquid flowing to the mechanical seal, reducing the pressure at the mechanical seal. On the other hand, it prevents the solid particles in the medium from entering the friction pair of the diesel engine fire pump seal, reduces the wear of the mechanical seal grinding block, and prolongs its life. The auxiliary impeller of the diesel engine fire pump can not only play a sealing role, but also reduce the axial force. In the diesel engine fire pump, the axial force is mainly caused by the pressure difference force of the liquid acting on the impeller and the gravity of the entire rotating part. The direction of action of these two forces is the same, and the resultant force is formed by the addition of the two forces.

Flow：80-2700 GPM
Head：10-24 Bar
XBC-D Diesel Fire Pump Set is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, the XBC-D Diesel Fire Pump Set ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

-UL Standard:
Flow：100-3000 GPM
Head： 90-250 PSI
– NON-UL Standard:
 Flow：100-10000GPM
Head： 40-250 PSI

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, it can also be equipped with other diesel engines as power machines according to the needs of users.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The Diesel Single-stage Single-suction Fire Pump is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the Diesel Single-stage Single-suction Fire Pump delivers dependable performance to safeguard lives and properties from fire risks.

Fire pump is a kind of water pump widely used in environmental protection, sewage treatment and fire fighting units. It is similar to the general pump, but its head and total flow are different. And the pump can also be divided into single-stage and multi-stage two forms according to the structure.

1. Diesel self-priming pump is suitable for urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, papermaking, industrial and mining washing, equipment cooling, etc.
2. The diesel engine self-priming pump is equipped with a rocker-type sprinkler, which can also spray the water into the air and spray it into small raindrops. It is a good tool for farms, nurseries, orchards and vegetable gardens.
3. The diesel engine self-priming pump is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity <100 centipoise, solid content up to 30%). 4. The diesel engine self-priming pump can be used with any type and specification of filter press, and the most suitable pump type for pressure filtration when the slurry is sent to the filter press.

There are many types of fire-fighting equipment. Fire hydrants and fire extinguishers are the most common types. The other is the fire pump, which is the heart of the fire-fighting system and plays an important role in pressurizing and supplying water to the fire-fighting system. Among the numerous fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

XBC series diesel double suction pump, large diesel flow pump set, adopts new type double suction pump + diesel engine + automatic control system (optional) combination of diversified and efficient, superior performance, safe and stable operation, low noise, energy saving and environmental protection, Easy installation and maintenance, long service life. The technical level has reached the domestic leading large flow. XBC series diesel double suction pump is mainly used for irrigation, municipal drainage, fire fighting, etc.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The Diesel Engine End Suction Fire Pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

Experience efficient fluid transfer with the XBC-XA Diesel End Suction Pump. With its unique end suction design and powerful diesel engine, this pump offers reliable performance and exceptional pumping capacity. It is suitable for a wide range of applications, from industrial fluid transfer to fire protection systems. The XBC-XA Diesel End Suction Pump features automatic operation, advanced control systems, and automatic fault detection for added safety and convenience. Choose this versatile pump for reliable and efficient fluid transfer in various industries.

Diesel engine fire pumps are relatively common equipment that are often used in fire protection systems. Of course, the first thing we consider when purchasing a pump station is to choose the manufacturer, not only because of the high cost-performance, but also because the manufacturer has the characteristics of customization on demand, according to customer needs, to select the functions to customize the fire pump group.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105℃.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

A fire pump system typically includes the pump itself, a driver (usually an electric motor or diesel engine), a controller, and various accessories like suction and discharge piping, check valves, and pressure gauges.

The national standard name of the diesel engine fire pump is “engineering diesel engine fire pump group”, and the national standard model is XBCL/Q where L is the lift value and Q is the flow value. XBC diesel engine fire pump set is the latest according to the national standard GB6245-2006 “fire pump performance requirements and test methods”. This series of products has a wide range of lift and flow, and can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

In order to avoid the wear of the diesel engine fire pump, a shaft sleeve is installed to protect the part where the shaft passes through the packing cavity. An O-ring is installed between the sleeve and the shaft to prevent air intake or water leakage along the mating surface. The transmission mode of the diesel engine fire pump is connected with the electric motor by lengthening the elastic coupling. The rotation direction of the pump, viewed from the driving end, is clockwise. The inlet and outlet flanges of the diesel engine fire pump are designed according to the pressure of 1.6Mpa, and the pipeline is convenient to match.

Flow：2000GPM
Head：12 Bar
The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.
