Diesel fire pumps can be used with electric fire pumps

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. Its national standard model is XBCL/Q, where L and Q represent the lift value and flow value of the fire pump respectively. This type of diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

In fire protection systems that include fire hydrants, jockey pumps play a key role in maintaining the necessary system pressure to ensure hydrants are immediately ready for use. Fire hydrants are typically located throughout a property or a city to provide easy access to water for firefighting efforts. The jockey pump helps maintain a consistent pressure in the piping network that supplies these hydrants, ensuring they are always charged and ready to deliver water when a firefighter opens them. This is especially important in systems with extensive piping networks, where pressure fluctuations could occur due to minor leaks, thermal expansion, or water usage. By keeping the system pressurized, jockey pumps help ensure a rapid response during a fire emergency, providing critical support to firefighting operations.

The fire pump is mainly used for water delivery in the fire protection system. As an indispensable tool for the fire protection system, the fire pump has the characteristics of simple structure and stable performance. Due to these advantages of high performance and low energy consumption, the safety and efficiency of the fire pump are far ahead of the pipeline tools of the same purpose.

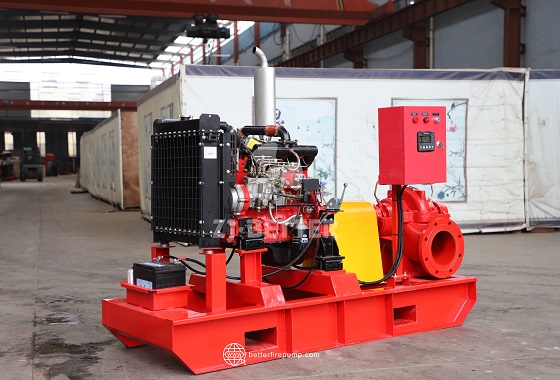

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

This fire fighting equipment is an important part of building fire protection system. Its
routine inspection and daily maintenance are very important for each dual-power. If the fire
pump or booster pressure stabilizer pump in the dual power system fails, the fire accident
will lead to great losses of buildings and so on. It is the responsibility of the enterprise to
ensure that all equipment is regularly maintained and inspected, including the maintenance
and maintenance of all fire fighting systems

1. The fire pump pump room should be located close to the water source.

2. The location should allow easy access for maintenance and repair.

3. The area should be well-ventilated and protected from extreme weather conditions.

4. The room should be suitable for operation and maintenance of the fire pump system.

5. The pump room should be protected from unauthorized access.

6. The area should not be subject to flooding.

Diesel fire pumps are suitable for the discharge of heavily polluted industrial wastewater, sewage discharge stations in major residential areas, water distribution systems in urban sewage treatment plants, drainage stations in civil air defense systems, water supply equipment in waterworks, sewage discharge in hospitals and hotels, municipal engineering construction sites, mine auxiliary machines , Rural biogas digesters, farmland irrigation and other industries. Sewage and dirt with conveyor belt particles can also be used for clean water and weakly corrosive media.

Using Instruction:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Water hammer in fire pump systems with high flow rates is mitigated by incorporating surge suppressors, check valves, and properly designed piping configurations. These measures prevent sudden pressure changes and protect pump components.

The two main starting and control methods for fire pumps are manual starting and automatic starting.

Manual Starting: Manual starting is the simplest and most commonly used method for starting a fire pump. It involves the use of a manual start switch or lever to start the pump motor.

Automatic Starting: Automatic starting is the most reliable method for starting a fire pump. It involves the use of a control panel, which can be programmed to start the pump motor when a drop in pressure is detected. The control panel also monitors the pump’s performance and can be used to shut off the pump if it fails to start or is not performing properly.

The fire pump unit is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected to the input shaft of the fire water pump, and the other end of the output shaft of the double shaft extension motor is connected to a One end of the clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

The DJ model is basically a combination of a diesel engine and a jockey pump. They consist mainly of end suction pumps driven by diesel engines and have no backup pumps. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete DJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

Available DJ-type fire pump skid kits provide the following flows:
50, 120, 150, 250, 300, 350, 500, 750 and 1000 GPM.

The fire pump set adopts ISW pump, which saves cost and is reasonably priced. This series of fire pump sets are suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, and oil tankers.

Diesel engine fire pumps are getting more and more attention, and the scope of use is becoming wider and wider. From the original pure water delivery to the current delivery of various domestic sewage, industrial wastewater, construction site drainage, liquid feed, etc. It plays a very important role in municipal engineering, industry, hospital, construction, hotel, water conservancy construction and other industries.

Diesel engine fire pumps can be widely used in environmental protection, water treatment and fire protection departments to transport various liquids by using their own advantages.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The diesel engine fire pump and the electric fire pump are “one standby and one use”. The control boxes of the diesel engine fire pump and the electric fire pump should be kept independent of each other, and the diesel engine fire pump must be used as the backup pump of the electric fire pump, and cannot be used as backup for each other.

The pump start signal in the fire extinguishing system is directly connected to the electric fire pump control box, and it is not suitable to be connected to the diesel engine fire pump control box at the same time. The pump start fault signal of the electric fire pump control box and the pump start signal in the fire extinguishing system are used as the automatic start pump start signal of the diesel engine fire pump control box, and the line is connected to the control box of the diesel engine fire pump. The pump start failure signal of the diesel engine fire pump control box received an alarm from the fire control center. After receiving the alarm, the authorized personnel rushed to the pump room to force the diesel pump to start in an emergency.

Firefighting pumps are critical assets in disaster response and emergency management scenarios, where rapid and effective fire suppression is essential for protecting lives and property. These pumps can be deployed in various emergency situations, including natural disasters like wildfires, earthquakes, and floods, as well as human-made disasters such as industrial accidents or terrorist attacks.

Flow: 30-500GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

EEDJ fire pump testing 250gpm, 6bar now!all product before shipment, we will do tesrting, then send to customers

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The EDJ 2000kw 10kv Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.
