Different types of Fire Pumps

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.

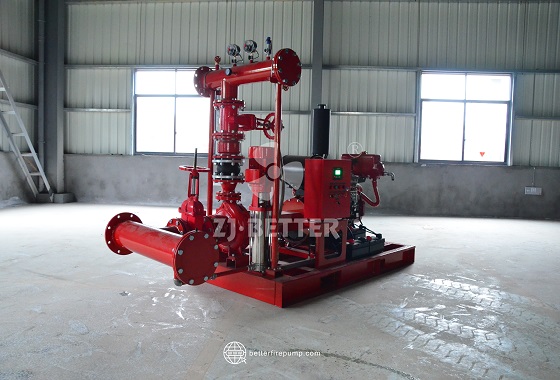

The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

The EDJ fire pump unit consists of a fire pump, a double-shaft motor and a diesel engine. One end of the output shaft of the double-shaft motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double-shaft motor is connected to the One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

In areas with limited access to technical support and specialized maintenance services, maintaining fire pumps can be challenging. These pumps require regular inspections, testing, and maintenance to ensure they function correctly in an emergency. In remote or underserved areas, finding qualified technicians and replacement parts can be difficult, leading to longer downtime and increased risk of system failure. To mitigate these challenges, fire pump systems in such locations are often designed with redundancy and built-in diagnostics to facilitate remote monitoring and troubleshooting. Training local staff to perform basic maintenance and leveraging online resources for support can also help ensure that fire pumps remain operational even in areas with limited technical support.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The fire pump set consists of two electric pumps & jockey pump along with control panel and accessories. It means duty pump and standby pump are electric pumps, without diesel engine pump. The fire pump set is designed to meet 65m³/h@60m.

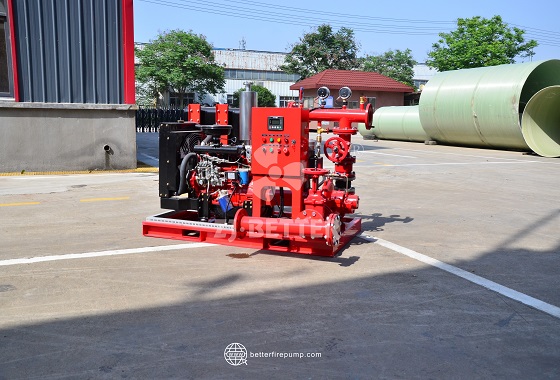

The function of the diesel fire pump is very powerful. We can set the control time during use, and it can be automatically charged, automatically started, as well as automatic alarm and automatic preheating functions. It is very reliable to use.

Horizontal fire pump has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

The fire pump can be installed in multiple ways according to the on-site use conditions. And depending on the flow and head requirements, the required flow and head are increased in parallel and series. The bearing adopts low-noise closed bearing, which has been injected with grease before leaving the factory, which can ensure continuous operation for more than two years, and the components have high concentricity. The pump impeller has good performance. Dynamic balance, no vibration in operation, and improved use environment. The pump shaft seal is a mechanical seal, which solves the serious leakage of conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

Fire pumps are widely used in our production and life, such as in water treatment, fire safety and other departments. After the reform and opening up, it is widely used in life and production due to its characteristics of complete sealing, no leakage, and corrosion resistance.

The fire pump is actually a pump that needs to be used in fire protection. According to different classification methods, it can be divided into different types of pumps. With its characteristics of full sealing, no leakage and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. The pump types of the system are similar, but the head and flow are different. The selection basis of the fire pump should be considered from five aspects according to the technological process and water supply and drainage requirements. Fire truck fire pumps are used in fire protection, water treatment, environmental protection and other departments to pump various liquids.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The split case Fire Pump Set is combined an electric split case pump and a jockey pump.

Common issues with firefighting pumps include priming failures, leaks, clogs, engine or motor problems, and inadequate water supply. Troubleshooting steps may include checking for obstructions, inspecting hoses and connections, verifying fuel and oil levels, and consulting the pump’s manual for troubleshooting guidance.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

EDJ diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pump occasions; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems; It is suitable for various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EE fire pump is composed of two electric pumps. According to the customer’s requirements, there is no jockey pump and control cabinet. It is a small fire pump set with competitive price. The fire pump set is being tested at the Better factory. , make sure the product is free of any problems.

With proper maintenance, a fire pump can last 15-20 years or longer. However, components such as seals, bearings, and impellers may need replacement during this period.

Fire pump installations must consider factors such as temperature, humidity, and potential flooding. Pumps should be installed in environments that protect them from extreme conditions to ensure reliable operation.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The diesel fire pump set is easy to maintain, has a high degree of automation, reliable performance, and a wide range of equipment pressure and flow. XBC type automatic diesel engine fire pump set, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in fire water supply under unexpected circumstances such as no power supply or abnormal power supply (mains power).

Application fields of fire pump set:
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc., national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports, fire engineering companies.

1. Water filling treatment Before selecting the power-on power, make sure that the fire pump should be filled with water when it is turned off, and the suction should be increased to make the pressure difference larger and quickly clean up some acid-base reagents and other pollutants. Make sure to fill the water well.

2. Selection of electrified power The horsepower of the fire pump will be selected according to the size of the pump. Before electrifying the pump, carefully check the electrical power. Once the power is not grasped accurately, it is easy to cause insufficient suction. Therefore, in order to make it have sufficient suction, the power should be selected reasonably. If there is no electricity, the fire pump cannot be started, let alone used. But does it mean that the pump can be used as long as there is electricity? Not necessarily, the pump can only be used if the electrified power is reasonable and the voltage is within the normal range.

EDJ Fire Pump Range：
Flow:5-400L/s
Head:3-20Bar
Material:HT200, SS304, Bronze
Caliber:65-350mm
Pressure:0.3~1.5MPa
Speed:740-2900r/min

In cold climates, fire pumps must be designed and installed to prevent freezing and ensure reliable operation in low temperatures. This includes using heated enclosures or pump rooms to keep the pumps and associated piping above freezing temperatures. Insulation and heat tracing can be applied to pipes to prevent water from freezing, particularly for outdoor or exposed piping. Additionally, anti-freeze solutions may be used in sprinkler systems to protect against freezing. Fire pumps in cold climates must also be tested and maintained regularly to ensure that all components, including heaters and insulation, are functioning correctly. Special considerations are also given to the type of fire pump selected, with diesel-powered pumps often preferred over electric ones in areas where power outages during winter storms are common.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. The diesel emergency water supply pump set is suitable for unattended emergency water supply systems. The product has the characteristics of high automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

EDJ Multistage Fire Pump Set is electric fire pump+diesel fire pump+jockey pump.It can meet 120GPM~3000GPM with 100m~660m.

The 1000GPM 12Bar Split Case Fire Pump System finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.
