Durable EDJ Fire Pump Set for Long-Term Use

The minimum fire rated pressure of small fire fighting package set water supply equipment is 6 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

1. When the pipeline fire pump noise occurs, the most likely fault is the imbalance of the fire pump rotor. Since the water output of the fire pump mainly depends on the high-speed rotation of the rotor, when the rotor is unbalanced for some reason, it will cause the fire pump to deviate from the original rotation track during the rotation process, resulting in the fire pump appearing in the pipeline. When judging the failure of the rotor, it is mainly to replace the rotor of the pump or make a balance hole on the rotor blade of the pump to find out the balance difference.

2. The production noise of the fire pump pipeline has a certain effect. For example, forcing a small flow of a pipe “fire pump” to increase power to increase the original flow will create vibrations in the fire pump. Therefore, whether you use a pipeline fire pump or other types of water pumps, you should follow the water pump use standards to prevent the water pump from making noise, which will affect the service life of the water pump. The solution is to use the pump according to the instructions. If the efficiency of use is affected, it is recommended to replace the appropriate pipeline “fire pump” for use.

3. The installation did not meet the standards, resulting in abnormal noise from the pipeline fire pump. Fire pumps and fire hydrant pumps vibrate at a high frequency during operation, so they must be fixed during installation. If the bolt between the pump body and the base or between the base and the base is loose when installing the pipe fire pump, the transmission shaft between the pump body and the motor of the pipe pump will be bent. It lowered the concentricity and caused an imbalance in the fire pump rotor. This is one of the noise phenomena of fire pumps. In order to improve this phenomenon, the pump shaft of the fire pump needs to be balanced and then reinstalled. Finally, the base of the pump was reinforced.

4. Blockage of the impeller passage can also cause fire pump noise. When the internal flow channel of the fire pump is blocked by foreign matter, it will cause uneven resistance of the fire pump impeller and vibrate the fire pump. Therefore, it is necessary to regularly disassemble and maintain the fire pump to prevent foreign matter from blocking the pipeline.

5. The bearing of the fire pump is damaged. Bearing damage generally does not occur on the main body of an in-line fire pump. If there is a problem with the quality of the pump, or because some hard objects enter the pump body of the tube pump, the bearing is damaged, and the rotor is unstable at first. Causes noise from pipeline fire pumps.

6. Finally, cavitation, cavitation occurs in any type of pump, but some are obviously not noticeable. If cavitation occurs, consider raising the fire pump or increasing the pressure in the piping. If the cavitation phenomenon cannot be changed, the fire pump model needs to be redesigned and replaced.

The diesel engine fire pump has automatic, manual and fault self-inspection functions. It can monitor the working status of the whole process, restore the fault start, automatic pre-lubrication and preheating automatic restart function, and make the equipment start safer and more reliable. It has the functions of central control room remote control, remote transmission control and field bus connection. The battery is fully automatic floating charging (constant current, constant voltage, trickle charging) mode to ensure that the battery is in a standby state at any time. The diesel engine fire pump is easy to use, equipped with remote transmission meters and meters, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

These pictures display a fire pump set consisting of diesel engine fire pump and jockey pump along with a control panel and accessories.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

The electric fire pump set is an important fire pump equipment, usually in a horizontal state. Each pump group is composed of five parts: front pump, electric motor, hydraulic coupling, main feed water pump, lubricating oil device (including lubricating oil cooler and working oil cooler. In normal state, two sets are running, one There are two standby pumps, and any feedwater pump set can be used as a standby pump. When one of the two running pumps stops due to an accident, the standby pump will be put into operation automatically.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

EDJ fire pump set is suitable for any emergency firefighting occasions, such as: firefighting water supply and emergency water supply in warehouses, docks, airports, petrochemicals and other occasions. This product can run in the case of power failure, the product has strong stability and is more reliable, and the jockey pump and pressure vessel can save some electricity and save costs.

Functional description of fire pump control system, which is composed of electric motor fire pump, diesel engine fire pump, common chassis, water outlet pipeline and various valves. The operation of the unit is operated by hand. The diesel engine fire pump is equipped with a fuel tank with a running capacity of 6 hours. The electric fire pump set has a starter cabinet and a manual button box, which is convenient and feasible to operate. In addition to the entire structure of the manual control unit, the automatic motor fire pump unit and diesel engine fire pump unit also have an automatic control panel mainly composed of PLC. Automatic control panel function The automatic control panel receives the fire alarm signal.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The pump will start to work when the pressure in the fire extinguishing system pipeline of EDJ small Fire Fighting water supply equipment drops suddenly. The first triggered pump is the jockey pump(pressure stabili-zation pump). The pressure stabilization pipeline of the jockey pump is allowed to start frequently within a certain range. In general, the pressure of the jockey pump is 1-1.5 bar higher than that of the main pump.

small flow fire pump set ready to dispatch
100gpm 5bar ED fire pump set

Residential buildings may have specific regulations governing fire pump installations, depending on factors like building size, occupancy, and local codes. Compliance with these regulations is crucial for ensuring safety.

Fire pumps are necessary to ensure an adequate and consistent water supply for firefighting, especially in buildings or areas with low water pressure. They help maintain the required pressure to operate fire sprinkler systems and standpipes.

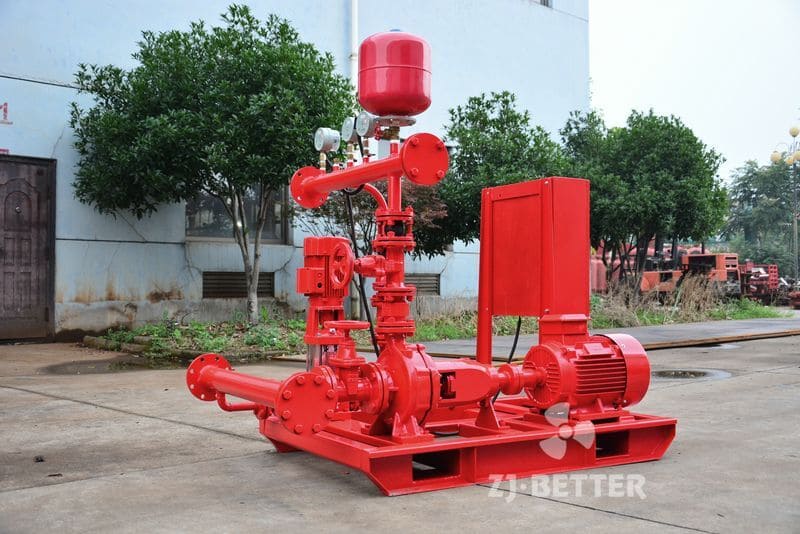

150gpm 150 psi EJ fire pump set ready dispatch

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, warehouses, etc., with different performance requirements and quality requirements. The commonly used types of fire pumps include electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multi-stage fire pumps Pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

A diesel engine fire pump is a type of fire-fighting equipment with reliable performance. Even so, when using the equipment, we must still adhere to its prescribed safety operating procedures to avoid any unnecessary issues.

The diesel engine fire pump has the characteristics of good starting performance, serious load operation, compact structure, time-saving and labor-saving maintenance, simple application, and high level of automatic control technology. It is a security monitoring device with reliable performance. The full name of the diesel engine fire pump we usually say is the engineering diesel fire pump set, which can operate at an ambient temperature of -25~55°C, and can be automatically charged, automatically started, and has the functions of automatic alarm and automatic preheating. It is very reliable.

The diesel engine fire pump can deliver clean water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of living and production water supply conditions are taken into account. The products can be used not only in independent fire-fighting water supply systems, but also in fire-fighting and living shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

Diesel engine fire pump can be used in fire water supply in warehouses, docks, airports and other occasions. We usually choose the appropriate diesel engine fire pump model and application according to the head, flow, power, medium properties, and required materials provided by the user. In order to avoid mistakes, the loss caused by the installation environment will be comprehensively considered to ensure stable and reliable efficiency.

Fire pumps are necessary when the water supply available does not generate the necessary hydraulic pressure required to meet demand of a fire protection system such as automatic sprinklers and standpipes, or even foam systems.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire sprinkler systems are an important part of life safety in buildings. International building codes allow some exceptions when buildings are “fully watered”, such as reducing rated spacing, reducing hydrant flow requirements, increasing exit travel distance, and increasing building height and area. These exceptions are allowed so that in the event of a fire, the sprinkler system will suppress the fire enough that occupants can safely evacuate the building and that the spread of the fire is contained before the fire department has fully arrived to extinguish it.

The diesel fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a fire-fighting equipment with reliable performance. This series of fire pump sets has a wide range of head and flow, which can fully meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Fire pumps are rated based on their capacity and pressure performance. The two key ratings are:

Gallons Per Minute (GPM): This rating indicates the pump’s flow capacity and how much water it can deliver per minute. It is essential to ensure that the fire pump can meet the specific flow requirements of the fire protection system.

Pressure (PSI): The pressure rating specifies the force with which the pump can deliver water. Sufficient pressure is critical for effectively propelling water through the fire sprinklers and hoses.

Understanding these ratings is vital when selecting a fire pump for a facility, as it ensures that the pump can meet the specific needs of the fire protection system.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. Types of pumps used for fire service include: End Suction Pump,  Split Case Pump, Vertical Inline Pump and Vertical Turbine Pump.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump,multistage pump.
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank, fan,control box.
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump.
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.

Whether you are part of a fire department, an industrial facility, a construction site, or a rural area, the EDJ Diesel Engine Fire Pump System is an indispensable firefighting asset. Count on the EDJ Fire Pump System to provide reliable support and swift containment of fires!

Diesel engine fire pump is suitable for high-lift and high-flow fire-fighting water supply environment or as a backup fire-fighting water supply pump. The reason is that the diesel engine has strong power and can be used with large-flow fire-fighting deep well pumps, and the diesel engine fire pump has the characteristics of self-start after power failure. It can provide emergency water supply and is a good choice in fire pumps.
