ED Fire Pump Set (electric pump + diesel pump)

The diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump. The diesel engine fire pump has the advantages of long head and wide application range, and can meet the fire water supply in multiple places such as warehouses, docks, airports, power plants, liquefied gas stations, and petrochemical industries.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

The electric fire pump unit is driven by an electric motor and has many different structures such as horizontal and vertical.

The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance.

Although the electric fire pump set has the advantages of simple operation and maintenance, most of the design specifications of the fire protection system stipulate that when using the electric fire pump set, it should have the condition of dual-circuit power supply. And usually there should be a diesel engine fire pump set as a backup pump set.

Handling such systems involves:

Zoning: Implement zoned fire protection systems tailored to the specific needs of different areas within the building, such as residential, commercial, and industrial spaces.
Custom Design: Design custom fire pump setups to meet the diverse requirements of each zone, ensuring adequate pressure and flow rates.
Flexible Operation: Use control systems that allow flexible operation and adaptation to the varying fire protection needs of different building areas.
Unified Monitoring: Integrate the fire pump systems into a unified monitoring and control system to ensure coordinated response and management across the entire building.

Perform a flow test: Measure pressure at different flow rates.
Run a churn test: Operate the pump at shut-off to check performance.
Simulate power failure: Ensure backup diesel systems kick in.
Record test results: Compare to manufacturer and NFPA benchmarks.

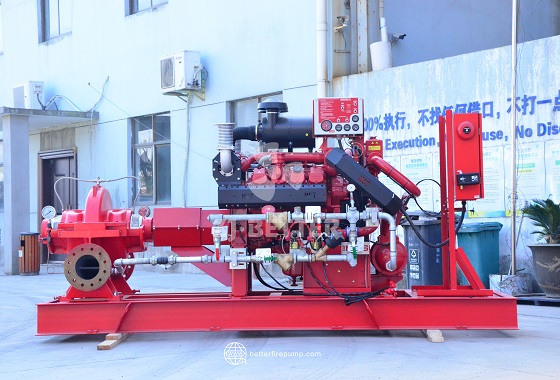

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

In addition to traditional fire suppression activities, firefighting pumps are crucial in specialized scenarios such as aircraft firefighting, where they provide the high-pressure water or foam needed to extinguish fires on aircraft. Similarly, marine firefighting pumps are essential for combating fires on ships and offshore platforms, requiring pumps specifically designed for maritime environments.

Electric motor fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire water. The electric motor fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Outline the specific installation requirements for fire pumps, such as space considerations, accessibility, and adherence to NFPA 20. Explain how correct installation ensures reliability and ease of maintenance, and discuss the importance of proper alignment, securing power sources (for electric pumps), and ventilation (for diesel pumps).

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

Diesel engine fire pump is a kind of fire-fighting equipment that we often see and often use in our life. The diesel engine fire pump has the characteristics of good starting performance, strong overload capacity, compact internal structure, convenient maintenance, simple operation and high degree of automation. It is a very reliable fire fighting equipment.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Firefighting pumps are critical assets in disaster response and emergency management scenarios, where rapid and effective fire suppression is essential for protecting lives and property. These pumps can be deployed in various emergency situations, including natural disasters like wildfires, earthquakes, and floods, as well as human-made disasters such as industrial accidents or terrorist attacks.

Fire pump set consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.

The application of fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise water supply under pressure.

Fire pumps are subject to rigorous testing and maintenance protocols to ensure they are always ready to operate in an emergency. This typically includes regular weekly or monthly churn tests, where the pump runs without discharging water, and annual flow tests, which verify that the pump can achieve its rated flow and pressure. These tests are crucial for identifying potential issues, such as wear and tear on components, blockages in the piping, or problems with the power supply. Additionally, fire pumps must be inspected for leaks, corrosion, and other signs of deterioration. Regular maintenance, including lubrication, alignment checks, and part replacements, helps extend the pump’s lifespan and ensures its reliability when needed most.

EDJ fire fighting package set is composed of diesel fire pump, electric pump, jockey pump.
Electric pump can choose single-stage pump, horizontal split case pump, end suction pump, multistage centrifugal pump, vertical turbine pump which are made of cast iron or stainless steel. Regarding to the impeller, we also could choose the bronze impeller.
Diesel fire pump, the flow is same as the electric pump. The diesel engine is combined by high elastic coupling or universal joint connection. The diesel fire set also includes fuel tank, water tank, fan, control panel and other components.
Jockey pump which is horizontal or vertical. Normally, it has the characteristics of small flow and higher head (more10-15m head than the electric pump and diesel pump).

– Handling of Flammable Materials: Ensuring systems are designed to handle and suppress fires involving highly flammable substances.
– Explosion-Proof Components: Using explosion-proof components to prevent ignition in volatile environments.
– High Capacity and Redundancy: Implementing high-capacity and redundant systems to ensure continuous operation.
– Compliance with Oil and Gas Safety Regulations: Adhering to stringent fire safety regulations specific to the oil and gas industry.

The EEJ fire pump set consists of two electric pumps + one jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, and oil tankers.

Spectrum range: fire pump can use a single-stage end suction pump,a combination of multistage single-suction pumps, single-stage double-suction pumps and other kinds of pumps, pump or more kinds of parallel flow, wide pressure range.
Automatically. when the engine fire pump receives a valid signal fire, remote control start signal when the unit will start automatically; when the fire pump motor supply failure or lack of signal phase, the unit will automatically standby. Diesel fire pump start 10s, if not start running, stop 10s, and then restart. The unit will automaticaly repeat three times.
Alarm System: repeatedly failed to start alarm, low diesel engine oil pressure alarm, ultra-high temperature alarm diesel engine, diesel engine speed alarm, low battery alarm, charging failure alarm, an alarm indicating a lack of fuel.
kinds of ways to start signal fire started, manually start or remote start.

The application of diesel engine fire pump is also more and more extensive. Diesel engine fire pump is a common necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. The diesel engine fire pump is installed together with the electrical instrument, with complete functions, compact structure, automatic fault alarm, accepting the starting signal, and can automatically complete the starting procedure and run at full load quickly. , enough to ensure that the diesel engine fire pump starts in a low temperature environment, the entire system of the diesel engine fire pump is safe, reliable, and easy to use.

Diesel engine fire pumps are mainly used for emergency fire fighting on ships. At the same time, it is also suitable for industrial and mining enterprises, port terminals, warehouses and freight yards and other places. Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, it can also be equipped with other diesel engines as power engines according to the needs of users.

Small electric fire pump set consist of one electric pump, jockey pump, control panel and accessories.

The fire pumps used in the complete diesel engine fire pump unit can be the IS series single-stage type and the D-type series segment multi-stage type produced by our company. The diesel engine water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. They are advanced and reliable fire fighting equipment.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is really high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use Leading the pipeline tools.

First, what’s a water pump? It’s a device used to transport liquid, pressurize the liquid, and make the liquid from the first liquid position to the high liquid position. The first water pump constructed by the Chinese is called” water windmill”. latterly, around 300 BC, the emergence of the” Archimedes screw pump” is more analogous to ultramodern pumps. In addition, the following introductory knowledge points are what you must understand.
1. Centrifugal pump

Centrifugal pump is the most common type of pump. In simple terms, the working principle of centrifugal pump is to rotate the impeller to drive the liquid under the action of centrifugal force. The liquid leaves the impeller and enters the volute. As the inflow passage of the volute gradationally expands, the fluid haste slows down, and the pressure rises continuously, and eventually it’s discharged through the conduit.
2. Impeller
The impeller is one of the main factors in the water pump, and it’s the core element that transmits mechanical energy to the liquid. The impeller is substantially divided into three types open type,semi-open type and closed type. The material conditions for the impeller are high, wear resistance is needed, and the manufacturing process is good.

3. Cavitation

Cavitation is the conformation of numerous bitsy recesses when the liquid connections the liquid under high- speed inflow and pressure, and gradationally expands into grottoes when serious, and cavitation frequently occurs in the impeller and pump covering.

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. The pump set has reasonable layout, firm installation, reliable connection, compact and neat structure, and convenient maintenance. And can run in the case of power failure, suitable for any emergency fire occasions.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Advancements in firefighting pump technology focus on improving efficiency, reliability, and safety. Some emerging trends include the development of more compact and lightweight pumps, integration of smart monitoring and control systems, and the use of alternative fuels for powering pumps, such as hydrogen or electric batteries.
