EDJ 2500gpm@10bar fire fighting package set-ZJBetter

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.​​

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps – the electric pump and the pipe charging pump work when there is electricity, and the diesel pump is started when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

EEJ dual-power fire pump is a fire-fighting water supply equipment with dual drive of electric power and diesel engine designed and manufactured by Better Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. There are many models of Better dual-power fire pumps, which can be customized according to needs.

The minimum fire rated pressure of ED small fire fighting package set water supply equipment is 3 bar and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
Motor: Three-phase asynchronous squirrel-cage motor independently developed and manufactured by our company, which can be controlled in production time and greatly shorten the whole set production time.
Diesel Engine: According to the different parameters of customers, we will choose diesel engines with high cost performance ratio. The main brands are QuanChai, Weichai, ShangChai, FAWDE, Cummins, etc.
Electric Pumps: Electric pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Diesel Pumps: Diesel pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Electronic Components: The main electric components is CHNT, if Schneider or other brand electrical are need, should mention it before place the order.
Safety Valve plays a safety protection role in the system. When the system pressure exceeds the prescribed value, the safety valve opens, and a part of the gas/fluid in the system is discharged into the atmosphere/pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.
Pressure Tank: Water is a non-compressible medium. Generally speaking, the pressure drop of fire-fighting pipe network is normal. However, the pressure drop is very slow, the total loss of water in the pipe network isnot large, and the frequent change of pressure in the pipe network leads to frequent start-up and shutdown of pumps. Especially when the power of equipment is high, it will cause great impact on pressure sensors, relaysand motors, thus affecting the performance and life whole equipment. Therefore, it is necessary to choose the right volume of the pressure tank.

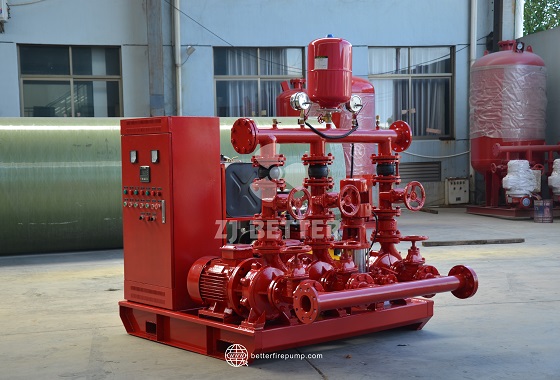

Small electric fire pump set consist of one electric pump, jockey pump, control panel and accessories.

The water source for fire pumps should be reliable, with adequate capacity to meet the demands of firefighting. It can include dedicated water tanks, connection to a municipal water supply, or other approved water sources. Regular checks ensure the availability and quality of the water source.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers. Our company can manufacture fire pumps that meet NFPA20 standards.

1.Flow：1000 GPM
2.Head： 14 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

500gpm8bar EDJ waiting for dispatch

The diesel engine fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a fire-fighting equipment with reliable performance. It can completely meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pump impellers typically have a single- or double-suction design, with the latter being more common. They are usually made of cast bronze, cast iron, or stainless steel and are designed to operate at high pressures and temperatures. The impeller blades are typically curved to provide optimal flow and pressure, and the hub is designed to ensure a secure fit on the motor shaft. The impeller shape and size, as well as the number of blades, are designed to provide an optimal flow rate and pressure for the application.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Diesel engine fire pump is simple in structure, reliable in performance, small in size, light in weight, good in corrosion resistance, low in power consumption, easy to use and maintain, suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating , papermaking, petroleum, mining, equipment cooling, tanker unloading, etc. Diesel engine fire pumps are used in warehouses, wharfs, airports, petrochemicals, power plants, liquefied gas, textiles, ships, tankers, enterprise backup and other fire-fighting water supply in various occasions, and can also be used for domestic water supply.

Now the general diesel engine fire pump set is powered by imported or domestic Cummins, Wuxi Power Engine Factory and other diesel engines produced by large-scale key enterprises in the internal combustion engine industry at home and abroad, through highly elastic couplings or diaphragm couplings produced by professional manufacturers. The engine is directly connected with the water pump, and the power of the diesel engine can reach 880KW. It can be equipped with water pumps of different lifts and flow rates for customers to choose and use according to different needs.

Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.

Applications:
High-rise hotel, high public places;
High-rise office buildings, high-rise residential;
Chemical, oil refining, metallurgical, enterprises;
Energy, medicine and military, enterprises.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

Mechanical seals are commonly used on fire pumps to ensure reliable and long-lasting operation. These seals are designed to create a tight, reliable seal between the pump shafts, and the fire pump’s motor. Mechanical seals are typically composed of stationary and rotating components that move against each other with minimal friction, to form a mechanical seal that can withstand the stresses of the fire pump’s operation. In addition to preventing leaks, mechanical seals can help improve pump efficiency, reduce wear and tear on motor components, and increase the life of the fire pump.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original electric fire pump.

Regular maintenance is crucial to keep fire pumps in optimal condition. It involves inspecting, lubricating, and replacing components as needed. Maintenance helps prevent malfunctions, ensures reliability, and extends the life of the pump.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Diesel engine fire pumps can form an automatic fire water supply system with electric pumps and jockey pumps. See the introduction of “Diesel Engine Control System” for its working process. The equipment can realize joint control with the fire center. The fire pump unit is combined with the fire pump through the high elastic coupling. The unit also includes diesel tank, cooling water tank, fan, control panel (for automatic unit) and other components.

When it is an automatic control unit, the split diesel engine automatic control cabinet realizes the functions of automatic reset, input, automatic switching, automatic protection and other functions of the system. At the same time, it can also interface with the user’s fire center or automatic fire alarm device to realize remote control monitor.
