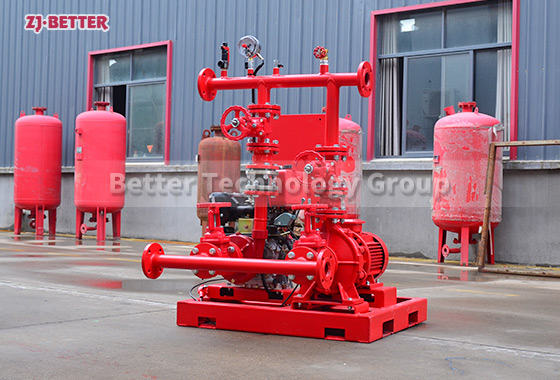

EDJ Fire Pump Set for Maximum Fire Protection

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system produced by our factory to realize the function of remote monitoring.

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake).

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

There is a combination equipment that uses diesel as fuel for firefighting, but it is usually used as a backup firefighting facility, because it can only be started automatically when the firefighting signal comes, and the electric water pump fails or the power supply is cut off, that is, the diesel engine firefighting pump set. It is very different from the electric fire pump in that it has its own independent power supply and storage system.

The electric pump and diesel engine pump of this set of fire pump equipment use ISO pump, the jockey pump adopts CDL pump, the three fire pumps automatically start and stop, and the diesel engine pump is the backup pump. This set of fire pump equipment is not affected by the mains, can work even without electricity, and can be used in any emergency firefighting occasions.

Fire pumps work by drawing water from a water source (such as a dedicated water tank or municipal supply) and pressurizing it before delivering it to the fire sprinkler system or hose lines.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.

Flow: 14-2700 GPM
Head: 12-80 meter
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

EDJ fire pump small flow capacity: 50gpm, pressure: 5bar

1. Better is a professional fire pump manufacturer with 18 years of industry experience

2. Professional sales team and R&D team, strong technology, self-produced control system

3. The motor is self-produced, which can produce 50/60Hz

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Simplifies piping design
Single source unit responsibility
A complete package that will meet NFPA20 requirements
Packaged systems are performance and hydrostatically factory tested at an IS09001 certified manufacturing facility prior to shipment.
No material lost due to on-site material handling
Improves the speed of construction and reduces on-site installation time
Only external suction, discharge and power connection are required on-site
State of the art engineering design

0TS series double suction horizontal split case pump is a new series designed based on improvement and innovantion of our company’s traditional products;S、 SH、 SA series, provide a wider range of hydraulic coverage and wide variety of application.
FEATURES Split case design permits easy disassembly, that is, inspection issimplified, it is not necessary to disturb pump alignment and suction&dscharge piping when parts replacement is necessary.
Double suction with advanced designof suction perfromance ensures high suction lift even with large capacity.

Diesel engine fire pump can be used in fire water supply in warehouses, docks, airports and other occasions. We usually choose the appropriate diesel engine fire pump model and application according to the head, flow, power, medium properties, and required materials provided by the user. In order to avoid mistakes, the loss caused by the installation environment will be comprehensively considered to ensure stable and reliable efficiency.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Diesel engine fire pumps can form an automatic fire water supply system with electric pumps and jockey pumps. See the introduction of “Diesel Engine Control System” for its working process. The equipment can realize joint control with the fire center. The fire pump unit is combined with the fire pump through the high elastic coupling. The unit also includes diesel tank, cooling water tank, fan, control panel (for automatic unit) and other components.

When it is an automatic control unit, the split diesel engine automatic control cabinet realizes the functions of automatic reset, input, automatic switching, automatic protection and other functions of the system. At the same time, it can also interface with the user’s fire center or automatic fire alarm device to realize remote control monitor.

As the name suggests, fire pumps are used in fire protection. They are divided into different types according to different classification methods. They are fully sealed and leak-free. They are used in environmental protection, water treatment, fire protection and other departments to pump various liquids. They are created The ideal pumps for non-leakage, civilized workshops and civilized factories are similar to the pumps for fire protection systems, but the head and flow are different.

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.

DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

Common accessories include:
Control Panels: For monitoring and operation.
Pressure Relief Valves: To prevent overpressure situations.
Hose Reels and Cabinets: For easy access during emergencies.
Flow Meters: To monitor water flow rates.
Jockey Pumps: For maintaining pressure in the system.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

The fire pump group is composed of electric pump + diesel pump + jockey pump. The conventional electric pump is the main pump, and the diesel pump is the backup pump. The jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or When the mains is cut off, the control cabinet will receive the signal from the electric contact pressure gauge and start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal firefighting work.

The small DJ fire pump set is composed of a diesel engine pump and a stabilized pump. The small flow pump set is generally used in low buildings.It is suitable for fire-fighting occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

Benefits include:

Simplified Installation: Pre-packaged systems are easier and quicker to install, reducing on-site labor and potential for errors.
Quality Control: Assembled and tested in a controlled environment, ensuring high quality and reliability.
Space Efficiency: Designed to optimize space, making them ideal for installations with limited space.
Regulatory Compliance: Often pre-engineered to meet specific codes and standards, simplifying the compliance process.

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.
