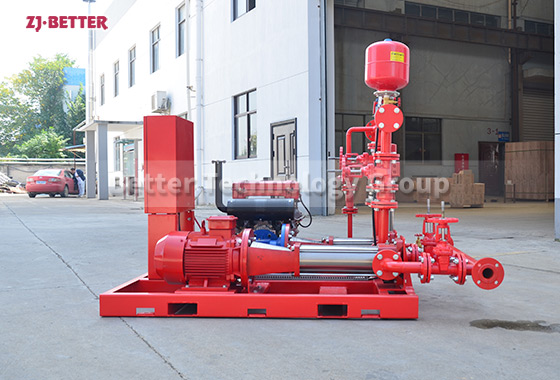

EDJ Fire Pump Set for Residential Fire Safety

Steps include:

Initial Inspection: Perform a thorough inspection of the installation to ensure all components are correctly installed and connected.
Performance Testing: Conduct performance tests to verify that the pump meets the required flow and pressure specifications.
System Calibration: Calibrate control systems and settings to ensure proper operation and response times.
Documentation: Document all tests, inspections, and calibrations, creating a comprehensive commissioning report.
Training: Provide training for facility staff on the operation, maintenance, and emergency procedures related to the fire pump system.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 6 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

The large-scale EDJ electric diesel dual-drive fire pump is a fire-fighting water supply equipment with dual drive of electric power and diesel engine designed and manufactured by Youbeide Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. There are many models of Better dual-power fire pumps, which can be customized according to needs.

50gpm8bar ED fire pump set

two sets 50gpm 8BAR EDJ fire pump after finish product

Flow testing is a critical aspect of fire pump maintenance and compliance with safety standards. This article explores the fundamentals of fire pump flow testing, including procedures, equipment, and the significance of accurate testing to verify system performance. It discusses the relationship between flow testing and water distribution and highlights the need for regular testing to ensure optimal fire protection.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

Electric fire pumps are suitable for pressurized water delivery in fire pipelines. It is used to pressurize water or other liquids whose physical and chemical properties are similar to water. The temperature of the medium used does not exceed 80°C. It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other cold and warm water cycle pressurization and equipment matching, etc.

All places need to be equipped with fire-fighting facilities, and fire pumps are the water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps require power systems. supply. In case of power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

Fire pumps are specifically designed for firefighting purposes. While some may have other applications, their primary function is to provide water at the required pressure for fire protection systems.

Regular maintenance is crucial to ensure the reliability of outdoor fire pumps. This includes checking and changing engine oil, inspecting and cleaning intake strainers, testing pump operation, and ensuring all hoses and connections are in good condition. Additionally, regular testing and inspection by qualified professionals are recommended.

XBD series fire pump set is mainly used for fire hydrant fire extinguishing system, automatic sprinkler fire extinguishing system, etc. in fixed fire fighting systems of various enterprises and institutions, engineering construction, high-rise buildings, etc. The chemical properties are similar to the medium of water, and it can also be used for fire protection, living, production, public water supply systems and buildings, municipal water supply and drainage, etc.

DJ fire pump 500gpm, 7bar
Caliber: 150mm
Flow Range:500gpm
Pressure: 7bar
Matching Power: 37kW
Motor:3ph,415V,50Hz

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system produced by our factory to realize the function of remote monitoring.

Using a fire pump efficiently and reasonably is crucial to ensure its optimal performance and effective firefighting capabilities. Here are some key considerations for using a fire pump efficiently:

Proper Sizing: Ensure that the fire pump is properly sized for the specific application.

Regular Maintenance: Perform regular maintenance on the fire pump to keep it in optimal condition.

Optimal Operating Speed: Operate the fire pump at the optimal speed based on the required flow rate and pressure.

Water Management: Manage the water supply efficiently to avoid unnecessary waste.

Training and Familiarization: Provide training to firefighters and operators on the proper operation of the fire pump.

Monitoring and Control: Utilize monitoring and control systems to optimize pump operation. These systems can provide real-time information on flow rates, pressures, and energy consumption. Use this data to adjust operating parameters as needed and identify any anomalies or inefficiencies that may require attention.

Shut Down When Not in Use: When the fire pump is not actively needed, consider shutting it down to conserve energy and reduce wear on the equipment.

Record Keeping: Maintain records of pump operation, maintenance activities, and any performance issues.

Efficient and reasonable use of a fire pump not only helps conserve resources but also ensures its readiness to combat fires effectively. By following proper operating procedures, conducting regular maintenance, and promoting a culture of efficiency among operators, the fire pump can operate optimally and provide reliable firefighting capabilities when needed most.

EDJ-ISW fire pump is composed of electric pump + diesel engine pump + jockey pump. It is suitable for fire water, but also for industrial city water supply and drainage, high-rise building pressurized water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization Air-conditioning refrigeration system water supply and equipment matching and other occasions.

EDJ Fire Pump Range：
Flow:5-400L/s
Head:3-20Bar
Material:HT200, SS304, Bronze
Caliber:65-350mm
Pressure:0.3~1.5MPa
Speed:740-2900r/min

The first step is to design a comprehensive and comprehensive fire protection system for the premises. This system should include automatic fire sprinklers, water-based fire suppression systems, fire alarms, smoke detectors and fire extinguishers. The fire protection system should be designed and installed according to the local building codes and fire regulations.

The next step is to install a pressurized and stabilized water supply system. This system should be designed and installed according to local regulations, as well as the needs of the premises. The system should include a main water supply line, a storage tank, and a pump system to ensure adequate pressure and flow.

Finally, the fire protection system should be regularly inspected and maintained. This includes regular testing of the fire sprinklers, smoke detectors, alarms and fire extinguishers. Any maintenance and repairs should be done by a qualified technician.

Fire pump is one of the fire-fighting equipment, its function is mainly used to transport water or other fire-extinguishing liquid for fire-fighting. Pumping water with equipment such as fire pumps has a very high water delivery efficiency. There are many types of fire pumps, and the air pumping methods of different fire pumps are also different. Sprinklers, fire hydrants, and water cannons and window sprays commonly used in business have the same pump-starting principle, but the fire-fighting linkage principle is different.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

Diesel engine fire pump is a kind of mechanical and electrical integration equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short period of time. The diesel engine pump set is driven by diesel and does not need an external power supply. Diesel engine water pumps are suitable for various fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles, etc., especially where there is no electricity, When the power grid is not satisfactory, it is most suitable to choose a diesel engine to drive the water pump.

The fire pump is a high-tech product, which is characterized by high efficiency, fast pumping speed, very strong sealing, and low leakage, which can also be said to be no leakage. The use of fire pumps is very extensive, of course, the most important one is used in the fire protection industry, it is also used in water treatment, environmental protection industry and so on. Among these uses, the fire protection industry uses the most. The fire protection industry makes full use of the advantages of fire pumps, which is the advantage of fast pumping. Because most of the work in the fire protection industry is to extinguish fires, the fire pump plays a very important role. Fire pumps are not just used in the firefighting industry. Fire pumps are also used in many other places. In larger industries, such as industry, as well as urban water supply and drainage, and water transportation for the construction of high-rise buildings, there is also water delivery over relatively long distances. There are also smaller industries, such as heating and boilers.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

All accessories of ED small fire-fighting complete water supply equipment are assembled according to the standard (NFPA20). Its configuration depends on the customer’s needs, or the number of pumps and the type of electric and diesel pumps. ED small fire pump sets are usually equipped with two pumps, a main pump (electric centrifugal pump) and a backup pump (diesel centrifugal pump). The choice of electric motor and diesel engine depends on the reliability level of the system.

EEDJ Fire pump set for small flow is made of E+E+D+J
Operation: 2 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 30, 50, 80, 100, 150 GPM with pressure 4, 5, 6, 8, 10Bar.
Pressure vessel 12, 24liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

EDJ dual-power fire-fighting pump set is a fire-fighting water supply equipment with dual drive of electric power and diesel engine designed and manufactured by Better Technology Group Co., Ltd. according to the standard of <>, and has obtained 3CF certification. There are many models of Better dual-power fire pumps, which can be customized according to needs.

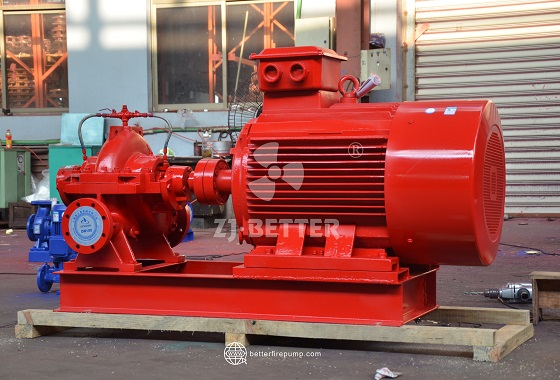

250GPM 8BAR SPLIT CASE PUMP
This is DJ fire pump clients as need
Capacity as 250gpm 8bar

The use of fire pumps is generally based on different situations. Different types will have different classification methods. The fire pump is in its own fully sealed state, without the possibility of leakage, and can resist corrosion. , is widely used, and is mainly used in fire protection, sewage treatment and some departments of environmental protection. It is used to pump different liquids, so that there is no leakage and no pollution. It is very civilized A kind of fire engine, which is very beneficial to the use of all of us.

The complete fire pump system consists of pumps, drivers, controllers and accessories installed on a universal base, and is suitable for fire water supply and emergency water supply in warehouses, storage yards, airports, petrochemicals, liquefied gas in power plants, textiles, ships, oil tankers, etc. This pump set is ideal for firefighting or voltage stabilization in houses or small buildings. We customize it to NFPA 20 and UL standards.
