EDJ fire pump set is suitable for all kinds of emergency standby pump places

EDJ fire pump is a kind of electric and diesel engine dual-drive fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the <> standard, and has obtained 3CF certification. Better dual-power fire pump has many models and can be customized according to needs.

EDJ fire pump set consists of main electric pump (motor driven), standby diesel pump (diesel engine driven) and jockey pump. The pump is assembled from discharge and suction pipes and a control panel. The fire pump system can be customized for different uses such as high-rise buildings, warehouses, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability.

Diesel engine fire pump is simple in structure, reliable in performance, small in size, light in weight, good in corrosion resistance, low in power consumption, easy to use and maintain, suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating , papermaking, petroleum, mining, equipment cooling, tanker unloading, etc. Diesel engine fire pumps are used in warehouses, wharfs, airports, petrochemicals, power plants, liquefied gas, textiles, ships, tankers, enterprise backup and other fire-fighting water supply in various occasions, and can also be used for domestic water supply.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. The fire pumps we commonly use are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

In order to match the service cycle of the fire pump, the inspection of the diesel engine and the fire pump should be regularly checked, and the parts to be replaced or repaired should be adjusted and corrected in a timely manner. We need to check the fuel tank reserves and oil quality of the diesel engine fire pump every day; the usage of the battery; the cooling system, etc., the pump shaft, impeller, bearing, and the wear of the water pipe and filter screen of the water pump. (Diesel engines of different brands may be different, and should be checked and maintained according to the specific model and structure of the diesel engine).

Outline the specific installation requirements for fire pumps, such as space considerations, accessibility, and adherence to NFPA 20. Explain how correct installation ensures reliability and ease of maintenance, and discuss the importance of proper alignment, securing power sources (for electric pumps), and ventilation (for diesel pumps).

Diesel engine fire pump has high efficiency, long operating life and high reliability. It can be used in independent fire water supply systems, and can be used in fire protection and living shared water supply systems. It can also be used in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions .

The fire pump is usually equipped with a local control cabinet. The control cabinet does not have a transfer control switch for automatic and manual conversion, but the automatic control loop leaves start and stop contacts, which are connected to the fire alarm system control module. In addition, according to the relevant regulations, the system using the bus linkage control should also be set in the fire control room with buttons that can directly start and stop the pump. When the fire alarm system receives the signal of the fire hydrant start pump button, the control module automatically starts the fire pump and collects its feedback signal.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The lifespan of a fire pump motor or engine varies based on factors like usage, maintenance, and the quality of the equipment. However, they are typically designed to be durable and long-lasting.

In urban areas, where water supply systems may be complex and highly interconnected, fire pumps play a crucial role in ensuring resilience and reliability. These pumps help maintain adequate water pressure and flow across different zones within the city, especially during peak demand periods or in the event of a fire. Fire pumps are often integrated into municipal water systems, providing additional pressure support for firefighting efforts and ensuring that water can be delivered quickly to where it is needed most. In some cases, fire pumps are also used to support the overall stability of the water supply network by compensating for pressure drops caused by infrastructure issues or increased usage.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Reliable because of professionalism, specializing in the production of industrial centrifugal pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

The fire pump set consists of two electric pumps & jockey pump along with control panel and accessories. It means duty pump and standby pump are electric pumps, without diesel engine pump. The fire pump set is designed to meet 65m³/h@60m.

150gpm 150 psi EJ fire pump set ready dispatch

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In ordinary use, more attention should be paid to maintenance, so as to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment meets the national standards. As fire equipment, all kinds of equipment must be To ensure performance, avoid affecting use in disaster situations and delaying rescue.

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. They are mainly composed of XA pump driven by electric motor and spare pump of XA pump driven by diesel engine. The flow rate is large and the lift is high. This set of equipment is suitable for all kinds of fire fighting. emergency situations.

Fire sprinkler systems are hydraulically calculated prior to installation to determine adequate water flow and in order to ensure the system can reliably suppress a fire until fire crews arrive. When it’s determined inadequate flow is available from a municipal supply for the system to operate effectively, a fire pump is installed. The fire pump operates when the sprinkler system pressure drops below a certain threshold, due to the operation of sprinkler heads. The fire pump draws additional water from the municipal water supply or on site storage tanks, to maintain the sprinkler systems required operating pressure. Fire pumps are often required in high rise construction and large area buildings, due to the size of piping systems and pressure loss.

Schedule regular inspections: Weekly or monthly as per NFPA requirements.
Lubricate moving parts: Prevent wear and tear on bearings and seals.
Clean strainers and filters: Avoid clogs that reduce pump efficiency.
Check alignment and coupling: Misalignment can cause operational issues.
Test automatic start functions: Verify system responsiveness during emergencies.

It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency.
Good stability, vibration proof.
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

The EDJ fire pump set is tested in the Better factory, and our company’s fire pump set needs to be tested after the assembly is completed to ensure the quality. EDJ fire pump sets are widely used in large public places, factories, firefighting and other occasions.

The biggest difference between a diesel engine fire pump and an electric water pump is that it has its own independent power supply system, which ensures the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .
In terms of industrial applications, diesel engine fire pumps are widely used in emergency water supply for large-scale projects such as high-rise buildings, steel plants, chemical plants, hotels, and water works.

As a fixed fire-fighting equipment, the diesel engine fire-fighting pump set has been widely used in fire-fighting diversion, especially for fire-fighting water supply in unexpected situations such as no power supply or abnormal power supply (mains power). The fire pump equipped in the unit is a horizontal single-stage and multi-stage fire-fighting special pump. It is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery pack, intelligent automatic control panel, etc.

The EDJ model is basically a combination of Electric, Deisel and Jockey pumps. They mainly consist of an electric motor driven end suction pump and a backup pump of a diesel engine driven end suction pump. It is also combined with a jockey pump for maintenance to form a complete skid.
The complete EDJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

The lower the pumping head of the fire pump, the smaller the motor load. Under the misleading of this kind of misunderstanding, when purchasing a water pump, the head of the water pump is often selected to be very high. In fact, for centrifugal water pumps, when the pump model is determined, the power consumption is proportional to the actual flow of the pump. The flow rate of the water pump will decrease with the increase of the head, so the higher the head, the smaller the flow rate and the smaller the power consumption. Conversely, the lower the lift, the greater the flow and the greater the power consumption. Therefore, in order to prevent the motor from overloading, it is generally required that the actual pumping head of the pump should not be lower than 60% of the calibrated head.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

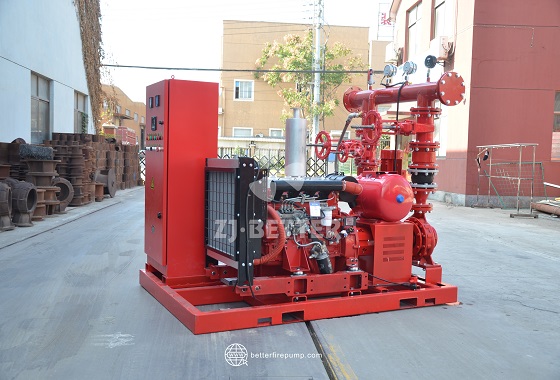

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pump is a new type of fire-fighting product that made strictly according to the national standard GB6245 and NFPA 20 fire pump performance requirements and testing methods, this series have wide head, flow range, can fully meet various occasions fire water supply in the warehouse, docks and airports, petroleum chemical industry, power plant, liquefied gas station, textile and other industrial and mining enterprises.
