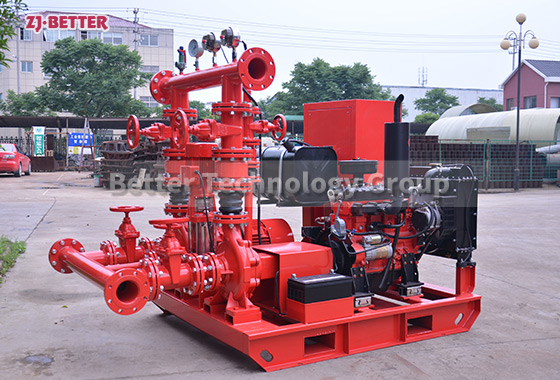

EDJ Fire Pump Units Unrivaled Fire Safety

EDJ fire pump is a kind of electric and diesel engine dual-drive fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the <> standard, and has obtained 3CF certification. Better dual-power fire pump has many models and can be customized according to needs.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The split case Fire Pump Set is combined an electric split case pump and a jockey pump.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The fire pumps used in the complete diesel engine fire pump unit can be the IS series single-stage type and the D-type series segment multi-stage type produced by our company. The diesel engine water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. They are advanced and reliable fire fighting equipment.

Diesel engine fire pump is a new type of fire-fighting product that made strictly according to the national standard GB6245 and NFPA 20 fire pump performance requirements and testing methods, this series have wide head, flow range, can fully meet various occasions fire water supply in the warehouse, docks and airports, petroleum chemical industry, power plant, liquefied gas station, textile and other industrial and mining enterprises.

With the advent of the information age, people have higher requirements for the quality of life, and fire safety is particularly important for high-rise buildings. The state attaches great importance to fire safety work. All workplaces require us to be equipped with fire safety facilities, and fire pumps are necessary water intake equipment for fire infrastructure. The commonly used fire pumps in our country are electric fire pumps and diesel fire pumps. The difference between the two is that the electric fire pumps need a power system. If the diesel engine fire pumps can be started at any time to fill the position of the original electric fire pumps.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

EJ fire pump set has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

Guide readers through the process of determining the ideal fire pump size based on their facility’s unique layout, occupancy, and fire suppression needs. Explain concepts like required water flow rate and pressure, and recommend consulting with a fire protection engineer. Discuss how undersized pumps may fail to provide adequate protection, while oversized pumps may lead to unnecessary costs and maintenance.

Flow-500gpm; Head-125psi
DJ (diesel pump + jockey pump) Fire Pump Set
DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

Regular maintenance is crucial for ensuring the reliability of firefighting pumps. This includes checking and changing oil, inspecting hoses and connections, testing the pump regularly, and following the manufacturer’s maintenance guidelines.

Fire pumps are used to pump all kinds of liquids. They are ideal pumps and fire-fighting systems for creating non-leakage, non-polluting civilized workshops and civilized factories. They are often installed on fire trucks, fixed fire-extinguishing systems or other fire-fighting facilities for transportation. Special pumps for liquid extinguishing agents such as water or foam solutions. Fire Pump
Widely used in environmental protection, water treatment, fire protection and other departments.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Small flow fire pump unit, small volume, large space utilization rate, simple installation, long service life, exquisite appearance, and low price, is the best choice for many customers.

Diesel engine fire pumps are suitable for use in fire water supply environments with high head and high flow rate or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so diesel engine fire pumps are favored.

Outline the specific installation requirements for fire pumps, such as space considerations, accessibility, and adherence to NFPA 20. Explain how correct installation ensures reliability and ease of maintenance, and discuss the importance of proper alignment, securing power sources (for electric pumps), and ventilation (for diesel pumps).

Fire pump installations in historical buildings may have unique considerations to preserve the architectural integrity. Compliance with historical preservation guidelines and coordination with relevant authorities is crucial.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

150gpm 150 psi EJ fire pump set ready dispatch

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

The fire pump group is composed of electric pump + diesel pump + jockey pump. The conventional electric pump is the main pump, and the diesel pump is the backup pump. The jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or When the mains is cut off, the control cabinet will receive the signal from the electric contact pressure gauge and start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal firefighting work.

The fire pump is mainly used to deliver water in the fire system. As an indispensable tool for the fire system, the fire pump has the characteristics of simple structure and stable performance. Due to these advantages of high performance and low energy consumption, the safety and efficiency of the fire pump are far ahead of the pipeline tools of the same purpose.

DJ series fire pump set consists of Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.

Double power fire pump product advantage is that when a fire occurs, a more reliable way to ensure water safety, in the normal power supply when the electric pump group into work, when the power supply failure, the electric fire pump can not be normally put into use, the diesel fire pump group can automatically put into operation to ensure the normal fire fighting.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The fire pumps used in diesel engine fire pump sets can be IS series single-stage type, S, D type series segmental multi-stage type produced by our company. The diesel engines used in this series of equipment are domestic or imported high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable fire-fighting equipment.

1. All personnel must be familiar with the operation manual and the safety regulations of the fire pump before use.

2. When the fire pump is in operation, no one should be allowed to approach the pump or the suction and discharge pipelines.

3. The suction and discharge pipelines should be inspected regularly to ensure that there are no blockages, as blockages can cause the pump to malfunction.

4. The pressure of the pump should be checked regularly to ensure that it is within the range specified by the manufacturer.

5. Before starting the fire pump, all valves in the suction and discharge pipelines must be checked to make sure they are open.

6. All safety devices should be checked regularly to make sure they are in good working condition.

7. The motor should be checked regularly to make sure it is in good working condition.

8. The fuel tank should be checked regularly to make sure it is filled with the correct type and amount of fuel.

9. The temperature of the pump should be checked regularly to make sure it is not too high.

10. If a fault is detected, the pump should be shut down and the fault should be rectified before it is restarted.
