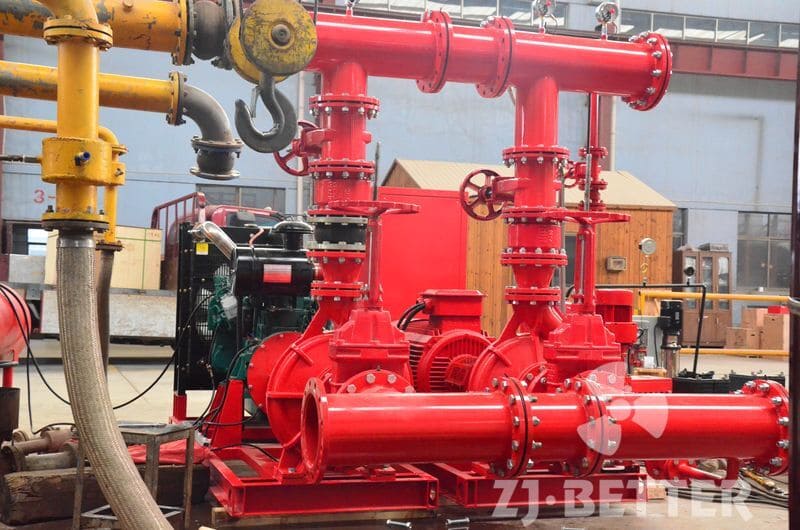

EDJ series fire pump system with electric, diesel and jockey pump

EJ vertical turbine fire pump package is including one electric vertical pump and one CDL jockey pump with accessories of gate valve and check valve, pressure relife valve, pressure Gauge, pressure switch, pressure vessel,and mainfold pipe for suction and discharge

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

120m3/h@70m fire fighting package set-ZJBetter
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Discuss the importance of regular fire pump testing to ensure system readiness in case of an emergency. Describe weekly churn tests and annual flow tests, explaining how these tests verify the pump’s performance, check for potential issues, and maintain compliance with NFPA and insurance requirements. Include a checklist to make testing straightforward and encourage record-keeping.

The diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc., fast automatic start and self-priming, and self-priming after dry running. Heavy-duty pump bearings – longer life; other parts are made of high-quality copper and stainless steel or customized by customers. The high-efficiency open impeller design of the diesel engine fire pump can handle large solids and abrasive materials while maintaining a high flow rate, and the large-capacity air treatment can be used for more “well point dewatering projects”.

Fire pump is one of the fire-fighting equipment, its function is mainly used to transport water or other fire-extinguishing liquid for fire-fighting. Pumping water with equipment such as fire pumps has a very high water delivery efficiency. There are many types of fire pumps, and the air pumping methods of different fire pumps are also different. Sprinklers, fire hydrants, and water cannons and window sprays commonly used in business have the same pump-starting principle, but the fire-fighting linkage principle is different.

When the fire pump is in operation, if the power supply of the motor fire pump power supply is turned off or the electric pump fails to start normally, the diesel engine fire pump will automatically start and run. During normal operation, there is a fully automatic switchover to an electric pump.

1. Water filling treatment Before selecting the power-on power, make sure that the fire pump should be filled with water when it is turned off, and the suction should be increased to make the pressure difference larger and quickly clean up some acid-base reagents and other pollutants. Make sure to fill the water well.

2. Selection of electrified power The horsepower of the fire pump will be selected according to the size of the pump. Before electrifying the pump, carefully check the electrical power. Once the power is not grasped accurately, it is easy to cause insufficient suction. Therefore, in order to make it have sufficient suction, the power should be selected reasonably. If there is no electricity, the fire pump cannot be started, let alone used. But does it mean that the pump can be used as long as there is electricity? Not necessarily, the pump can only be used if the electrified power is reasonable and the voltage is within the normal range.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Diesel and electric fire pumps are the two primary types of fire pumps used in fire protection systems, each with its own advantages and considerations. Diesel fire pumps are powered by internal combustion engines and are typically used in locations where a reliable electric power supply is not available or where redundancy is needed to ensure continuous operation during a power outage. Diesel pumps are known for their reliability and ability to operate independently of the electric grid, but they require regular maintenance of the engine and fuel system, including fuel storage and periodic testing.

The diesel engine fire pump has the characteristics of good starting performance, serious load operation, compact structure, time-saving and labor-saving maintenance, simple application, and high level of automatic control technology. It is a security monitoring device with reliable performance.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

This series of pumps meets the requirements of fire pumps in terms of performance, structure, materials and matching. Due to the use of excellent hydraulic models, this series of pumps has the advantages of meeting user requirements, high efficiency and wide performance range, which can better save floor space; high-quality motors with high-quality bearings make the pump run more safely. Reliable, low noise, low vibration; the use of hydraulic balance axial force can make the operation more stable. The scope of application is suitable for fire water supply in various occasions such as residences, hotels, office buildings, commercial buildings, factories, hospitals, etc.

1.Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump, this jockey pump is optional
4.Control panel: Auto Control for all pumps with overload, over current protection.
5.Accessories: valves, pressure vessel, Pressure Gauge, Pressure Sensor, Common Base plant

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

– Specialized Fire Suppression Systems: Implementing fire suppression systems designed for hazardous waste materials.
– Explosion-Proof Equipment: Using explosion-proof equipment to prevent ignition of flammable or explosive materials.
– Regular Maintenance and Inspections: Conducting regular maintenance and inspections to ensure system reliability.
– Compliance with Environmental Regulations: Adhering to stringent environmental and safety regulations specific to hazardous waste handling.

The application of fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise water supply under pressure.

Fire pump systems are comprised of various components, each playing a critical role in ensuring their proper function. Some of the key components include:

Fire Pump: This is the heart of the system, responsible for pressurizing the water and sending it to the fire protection devices.

Controllers: Controllers monitor the system, automatically starting the pump in response to a fire alarm signal and providing system status information.

Suction and Discharge Piping: Properly designed piping is essential for efficient water flow. Suction piping brings water to the pump, while discharge piping carries it to the fire protection devices.

Pressure Relief Valves: These safety valves release excess pressure to prevent damage to the system.

Valves: Various valves control water flow within the system, allowing for isolation, testing, and maintenance.

These components work in concert to provide reliable water distribution in case of a fire.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

A fire pump is required when the available pressure from the water system is insufficient to supply adequate pressure to all of the sprinkler heads in the structure at the required flow. The required flow is based on heads activating in a given area, which is determined by the hazard to be protected. Fire pumps are more commonly needed in taller buildings, but can also occur in shorter buildings in hilly locations.

Yes, the fire pump configuration inspection cabinet is necessary for the fire protection system, as it stores important information and records related to the fire pump, its maintenance, tests, and repairs. This cabinet is also used to keep records of the operation of the entire fire protection system and any system components.

DJ fire pump equipment is composed of diesel pump + jockey pump. It is widely used in various fire protection occasions. It is not affected by the mains and can run even when power is cut off. We have a professional sales team and R&D team with strong technical skills and self-produced control systems.

Fire pump kits include a combination of electric pumps, diesel engine driven and electric motor driven jockey pumps for use in fire suppression systems. The fire pump group has a large flow rate, plays an important role in fire, and maintains a long-term high-efficiency working state under the condition of continuous water resources. With good reliability, it is welcomed and accepted by customers all over the world.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

1. High power capacity: Fire pump control cabinets are designed to provide a higher power capacity, allowing the system to handle larger loads.

2. Easy installation: Fire pump control cabinets are designed to be easy to install and configure, allowing the pump to be installed quickly and efficiently.

3. Protection: Fire pump control cabinets are designed to provide protection to the electrical components from moisture and other environmental factors.

4. Monitoring: Fire pump control cabinets are equipped with monitoring systems to monitor the performance of the system and alert the user if any issues arise.

5. Alarm system: Fire pump control cabinets are equipped with an alarm system that can alert the user if the system fails or if the pressure drops to a dangerous level.

6. Cost-effective: Fire pump control cabinets are designed to be cost-effective and provide the necessary protection and performance for a facility.
