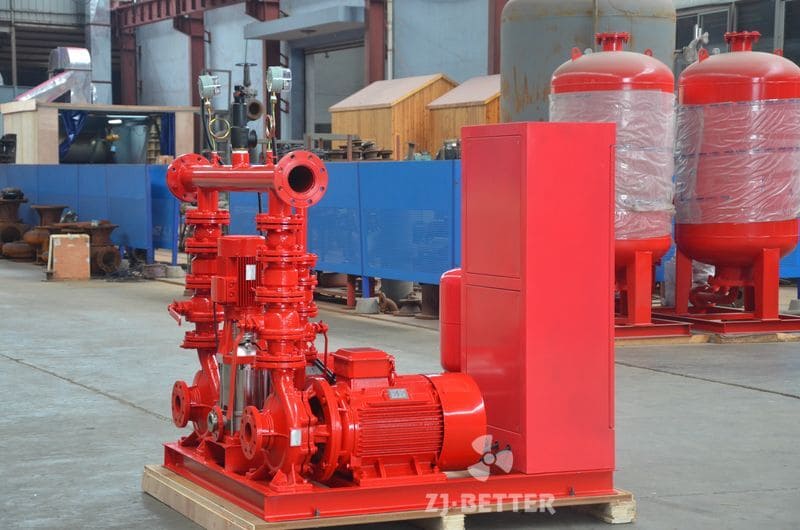

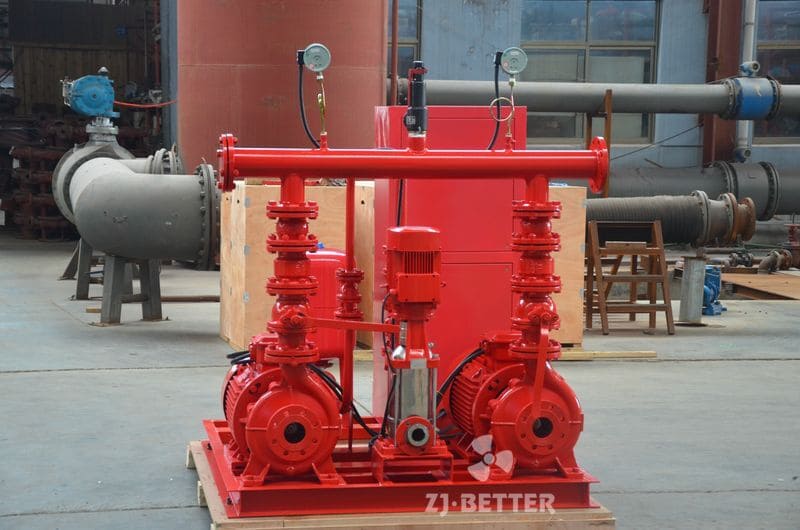

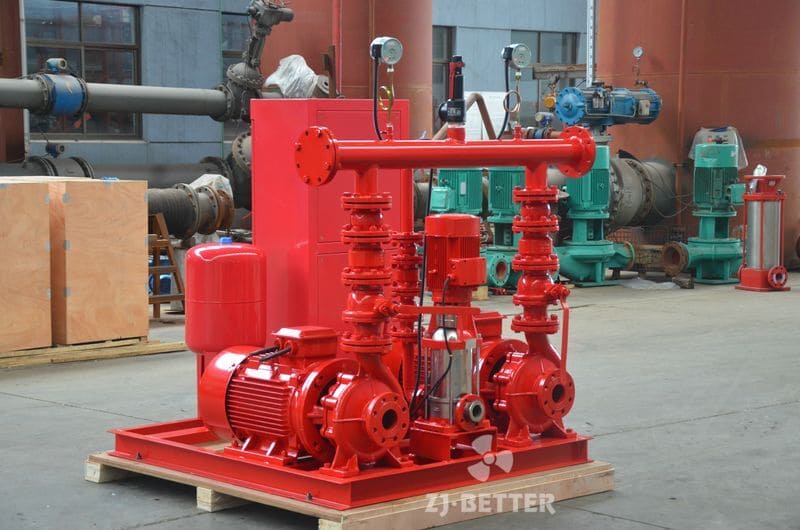

EEJ Electric Fire Pump Set

Jockey pumps help extend the lifespan of fire pumps by maintaining system pressure and preventing unnecessary cycling of the main fire pump. By handling minor pressure fluctuations and small leaks, jockey pumps reduce the wear and tear on fire pumps, which would otherwise start and stop frequently to maintain pressure. This reduced cycling minimizes mechanical stress on the fire pump’s components, such as bearings, seals, and impellers, thereby prolonging its operational life. Additionally, jockey pumps consume less power and operate more quietly than fire pumps, leading to energy savings and reduced noise pollution in facilities. By ensuring that fire pumps only operate during actual emergencies, jockey pumps contribute to the long-term reliability and efficiency of the fire protection system.

Fire pressurized and stabilized water supply equipment can make the fire water supply pipeline system the most unfavorable point always maintain the fire pressure, and the use of air pressure water tank always stored in the 30 seconds of fire water, to ensure the fire pump before the operation of the fire spray water; The device uses the operating pressure set by the air pressure water tank to control the operating condition of the pump and achieve the function of pressurization and pressure stabilization.

Diesel engine fire pump is simple in structure, reliable in performance, small in size, light in weight, good in corrosion resistance, low in power consumption, easy to use and maintain, suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating , papermaking, petroleum, mining, equipment cooling, tanker unloading, etc. Diesel engine fire pumps are used in warehouses, wharfs, airports, petrochemicals, power plants, liquefied gas, textiles, ships, tankers, enterprise backup and other fire-fighting water supply in various occasions, and can also be used for domestic water supply.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, other diesel engines can also be equipped as power engines according to the needs of users.??

Electric fire pumps have a wide range of uses, of course the most important ones are still used in the fire protection industry, and they are also used in water treatment and environmental protection industries. Among these uses, the firefighting profession uses the most. The fire pump is the advantage of fast water pumping that the firefighting profession has fully utilized. Because most of the work of the firefighting profession is to fight fires, the fire pump has played a great role.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

A fire pump starts when the pressure in the fire protection system drops below a set threshold, indicating water flow caused by sprinkler activation or manual use of a fire hose. The pressure drop is detected by pressure-sensing devices, triggering the fire pump to activate and provide adequate water pressure.

1. Increase the suction head: Increasing the suction head, or the vertical distance between the suction inlet and the centreline of the impeller, can reduce the chances of cavitation.

2. Increase the impeller speed: Increasing the impeller speed can also reduce the chance of cavitation.

3. Install an air separator: An air separator in the suction line can help remove any entrained air from the system, thus reducing the chance of cavitation.

4. Install a venturi: A venturi installed in the suction line can help create an area of low pressure, which can reduce the chance of cavitation.

5. Install a priming valve: A primer valve can help reduce the suction head and thus reduce the chance of cavitation.

6. Install a vacuum breaker: A vacuum breaker can be used to reduce the pressure in the suction line, thus reducing the chance of cavitation.

7. Improve the suction piping: Improving the suction piping, such as using larger pipes, can reduce the chance of cavitation.

8. Inspect the pump and suction line: Inspecting the pump and suction line for any signs of wear or damage can help reduce the chance of cavitation.

Controllers ready to dispatch
This is the controller for jockey pump, electric pump and fire pump set

1. Good sealing performance: The mechanical seal of the fire pump has a good sealing performance and can effectively prevent the leakage of liquid.

2. High reliability: The mechanical seal of the fire pump has strong anti-interference ability and can continuously run for a long time under the rated working conditions.

3. Easy installation and maintenance: The mechanical seal of the fire pump is easy to install and maintain, and its performance is not affected by the installation and maintenance process.

4. Long service life: The mechanical seal of the fire pump has a long service life and can work stably for a long time.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The video displays a fire pump set consisting of jockey, electric, and diesel pump. The pump model is the OTS series.

Diesel engine fire pumps are aimed at fire-fighting water supply for large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel, with a wide range of flow and pressure. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

As the name implies, fire pumps are classified into different types according to different classification methods, and are widely used in environmental protection, water treatment, fire protection and other departments because of their fully sealed, leak-free, and corrosion-resistant characteristics. liquid-like. The pump types are similar, but the head and flow are different. The selection basis of the fire pump should be considered according to the process flow, water supply and drainage requirements, and other five aspects.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

While firefighting pumps are specifically designed for extinguishing fires, they can sometimes be adapted for other applications, such as irrigation or water transfer, depending on the pump type and specifications.

120≤Q≤3000GPM
100＜H≤600m
horizontal multistage centrifugal pump is multistage single suction sectional centrifugal pump with excellent hydraulic model, it has advantages of high-efficiency, energy-saving, wide performance range, operating safely and steadily, low noise, long life and convenience for installing and repairing etc.

Double power fire pump is mainly composed of electric fire pump, diesel fire pump and regulator pump, in no power supply or power supply (mains) is not normal will start the diesel fire pump, to ensure the fire water supply in these unexpected circumstances.

USA clients EDJ fire pump test process
The pump is 250gpm 8bar, clients use Cummins brand engine
Pump test well, can match the rated flow and head
After test then package, and dispatch to port direcrtly

EDJ fire pump set is our main product, the conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, The control cabinet will receive the signal from the electric contact pressure gauge and start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal operation of the fire extinguishing work.

Diesel engine fire pump has high efficiency, long operating life and high reliability. It can be used in independent fire water supply systems, and can be used in fire protection and living shared water supply systems. It can also be used in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions .

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

EEDJ fire pump set consists of two electric pumps + diesel pump + jockey pump, which is manufactured according to customer requirements. All fire pumps use ISW pumps. The advantages of this fire pump set are easy installation, high cost performance, and suitable for any fire fighting. In emergency situations, it is equipped with a diesel engine pump, which can run even when the power is cut off.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

A churn test involves running the fire pump without discharging water to ensure it starts and runs correctly. It is important for verifying the pump’s operational readiness and identifying potential issues that need maintenance.

We proudly showcase high-quality fire pump sets and highly recommend the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set, providing excellent performance and reliability for your fire protection system. The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is designed for large-scale fire applications. It possesses powerful capacity and efficient performance, ensuring your fire protection system can respond quickly in emergency situations and deliver sufficient water pressure and flow.

Whether it is for fire protection systems, industrial applications, or municipal projects, the Split Case EDJ fire pump set is capable and ensures efficient operation.

Factors include the building size, height, occupancy type, local fire codes, water supply source, and the required water flow and pressure. A thorough hydraulic analysis is typically performed to determine the appropriate pump size and type.
