EEJ Fire Pump Set

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

The company fire pump design in line with the national standard of general packaging, in line with customer needs, standard loading and unloading transportation. Reasonable price, do not cater to customers with ultra-low prices, equal treatment of every customer.

Schedule regular inspections: Weekly or monthly as per NFPA requirements.
Lubricate moving parts: Prevent wear and tear on bearings and seals.
Clean strainers and filters: Avoid clogs that reduce pump efficiency.
Check alignment and coupling: Misalignment can cause operational issues.
Test automatic start functions: Verify system responsiveness during emergencies.

With the characteristics of full sealing, no leakage and corrosion resistance, fire pumps are widely used in environmental protection, water treatment, fire protection and other departments. They are ideal pumps for building non-leakage, non-pollution civilized workshops and civilized factories. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is that the electric fire pump needs power system supply. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

Choose the installation location: Ensure it’s a clean, ventilated, and non-flood-prone area.
Prepare a solid foundation: Use a robust concrete base to minimize vibration.
Follow manufacturer guidelines: Properly align and secure the pump and diesel engine.
Connect fuel supply and exhaust systems: Ensure safe fuel storage and proper exhaust ventilation.

The complete fire pump system consists of pumps, drivers, controllers and accessories installed on a universal base, and is suitable for fire water supply and emergency water supply in warehouses, storage yards, airports, petrochemicals, liquefied gas in power plants, textiles, ships, oil tankers, etc. This pump set is ideal for firefighting or voltage stabilization in houses or small buildings. We customize it to NFPA 20 and UL standards.

This series of pumps meets the requirements of fire pumps in terms of performance, structure, materials and matching. Due to the use of excellent hydraulic models, this series of pumps has the advantages of meeting user requirements, high efficiency and wide performance range, which can better save floor space; high-quality motors with high-quality bearings make the pump run more safely. Reliable, low noise, low vibration; the use of hydraulic balance axial force can make the operation more stable. The scope of application is suitable for fire water supply in various occasions such as residences, hotels, office buildings, commercial buildings, factories, hospitals, etc.

A typical firefighting pump system consists of the pump itself, intake and discharge hoses, nozzles, strainers or filters to prevent debris from entering the pump, and sometimes additional accessories like foam injection systems for enhanced fire suppression capabilities.

EDJ fire pump after packaged
250gpm 10bar EDJ fore pump set

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

A fire pump is part of the water supply for a fire sprinkler system and is powered by electricity, diesel or steam. It uses water from an external source to increase water flow and pressure. The pump inlet is either connected to a public groundwater supply line or to a static water source. The pump provides higher pressure water flow to the sprinkler system risers and hose risers. Fire pumps must be tested monthly and annually to ensure they are operating as designed. These two different tests are called the monthly “churn” test and the annual flow test.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability.

These are pictures of a stock outdoor fire pump set. It is composed of electric pump, diesel engine pump, jockey pump, and accessories.

Yes, various national and international standards and regulations govern the design, performance, and installation of firefighting pumps. It’s essential to ensure that the pump you choose complies with relevant standards and meets the requirements of local building and fire codes.

As the name implies, fire pumps are used in firefighting. They are divided into different types according to different classification methods. They are widely used in environmental protection, water treatment, firefighting and other departments to pump various liquids due to their fully sealed, leak-free, and corrosion-resistant characteristics. , It is the ideal pump for creating leak-free, pollution-free civilized workshops and civilized factories.

Fire pumps and jockey pumps work together to ensure that a fire protection system is always ready to operate at peak efficiency. The jockey pump is primarily responsible for maintaining the system’s normal pressure, compensating for minor leaks, and preventing the fire pump from running unnecessarily. When a fire occurs, and a significant drop in pressure is detected due to water discharge from sprinklers or hoses, the fire pump is activated to provide the necessary water flow and pressure. This interaction ensures that the system operates efficiently, minimizing wear and tear on the fire pump while keeping the system primed and ready for an emergency.

ZJBetter provide three types of fire pump system, such as diesel engine fire pump set, electric driven fire pump set, EDJ fire pump set.

Testing Requirements:
Weekly Run Tests: Diesel pumps should be tested for 30 minutes weekly, and electric pumps should run for 10 minutes.
Annual Flow Tests: Measure pump performance at 100%, 150%, and churn conditions to verify proper operation.
Check Suction & Discharge Pressure: Ensure the pump meets its rated pressure at all test points.
Evaluate System Response Time: Confirm that the pump starts automatically when required.

Fire pumps work by drawing water from a water source (such as a dedicated water tank or municipal supply) and pressurizing it before delivering it to the fire sprinkler system or hose lines.

Diesel engine fire pump is simple in structure, reliable in performance, small in size, light in weight, good in corrosion resistance, low in power consumption, easy to use and maintain, suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating , papermaking, petroleum, mining, equipment cooling, tanker unloading, etc. Diesel engine fire pumps are used in warehouses, wharfs, airports, petrochemicals, power plants, liquefied gas, textiles, ships, tankers, enterprise backup and other fire-fighting water supply in various occasions, and can also be used for domestic water supply.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pumps are specifically designed for firefighting purposes. While some may have other applications, their primary function is to provide water at the required pressure for fire protection systems.

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw

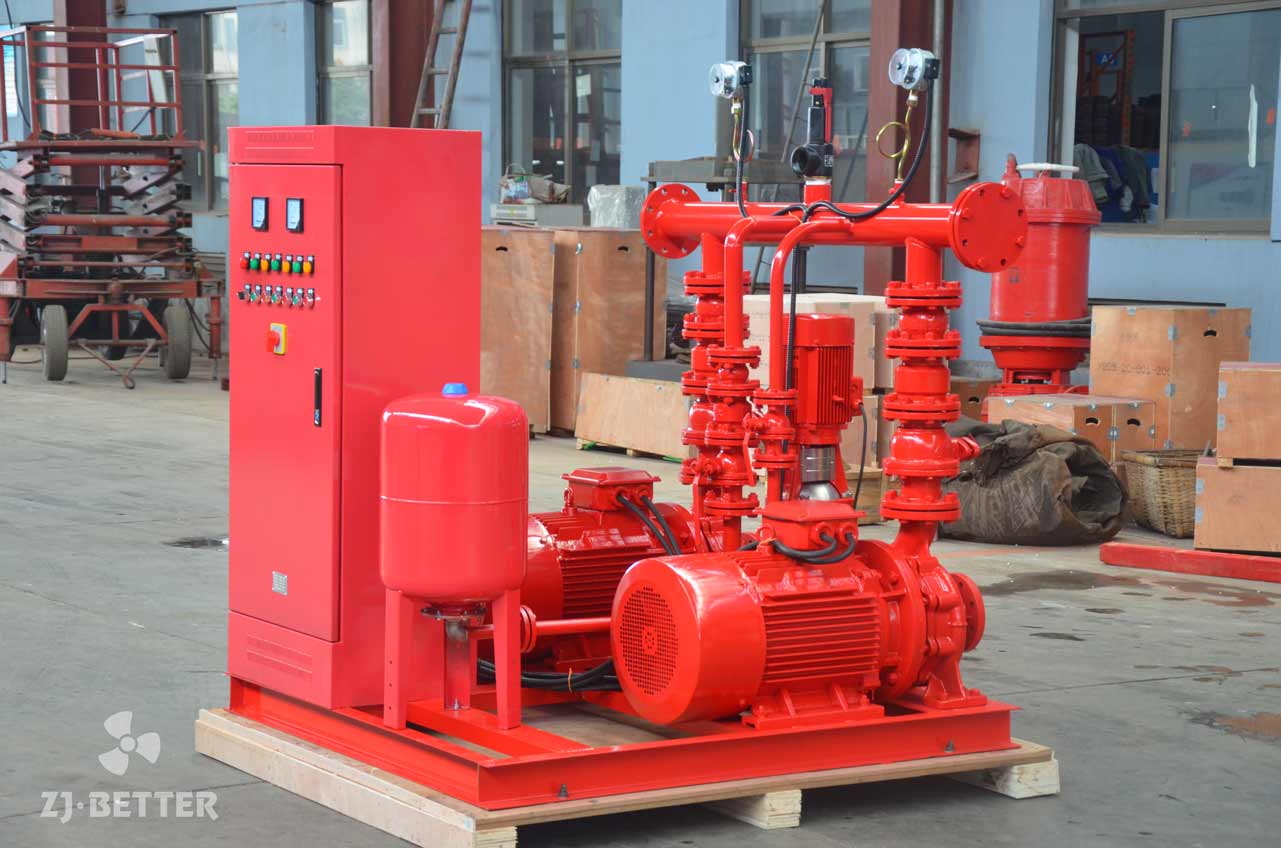

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The function of diesel fire pump is very powerful, we can set the control time during use, for example: preheating in advance, preparatory lubrication or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.

Dual power fire pump consists of an electric motor driving fire pump, a diesel engine driving fire pump, a common fire pump controller, pressure vessel, standard fittings and base frame.
