EEJ Fire Pump Set: Reliable Fire Safety Tool

ISW horizontal single-stage single-suction centrifugal pump is to be used for clean water or other liquid with similar physical and
chemical property to clean water. It is suitable for industrial and city water supply and drainage, pressure water supply for high-rises, garden sprinkling, fire fighting booster, distance conveyance, cooling circulation in heating and ventilating system, bathroom and other cool or hot water circulation boosters or accessories, whose operation temperature is below 60C.

1. The fire pump should be capable of supplying the rated flow and pressure for a duration of two hours, at a rate of 150% of the rated capacity, and should not be affected by prolonged operation.

2. The fire pump should be able to start up automatically by a power source when activated.

3. All switches, gauges, alarms, controllers and monitoring systems should be certified to UL and FM standards.

4. The fire pump should be sized to meet the NFPA 20 standard for fire pump design.

5. The fire pump should be able to handle the maximum system flow and pressure required for the building.

6. The fire pump driver should match the requirements of the pump and meet NFPA 20 requirements for fire pump drivers.

7. The fire pump should be installed according to NFPA 20 standards for fire pump installation.

8. The fire pump should be tested and inspected in accordance with NFPA 25 standards for testing and inspection of fire pumps.

EDJ fire pump set is composed of electric pump, diesel pump and stabilized pressure pump. In daily use, as an auxiliary pump, the stabilized pressure pump keeps the existence of liquid (water) in the fire pipeline at all times, and the electric pump works as the main power pump in normal work. When the circuit system is burnt out due to a serious fire, the diesel pump will start instead of the electric pump within ten seconds, which will not be affected by the circuit and complete the fire fighting work. In recent years, EDJ fire pump group has gradually become the first choice of fire protection systems in various office buildings and residential buildings, and its safety

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Benefits include:

Simplified Installation: Pre-packaged systems are easier and quicker to install, reducing on-site labor and potential for errors.
Quality Control: Assembled and tested in a controlled environment, ensuring high quality and reliability.
Space Efficiency: Designed to optimize space, making them ideal for installations with limited space.
Regulatory Compliance: Often pre-engineered to meet specific codes and standards, simplifying the compliance process.

First, what’s a water pump? It’s a device used to transport liquid, pressurize the liquid, and make the liquid from the first liquid position to the high liquid position. The first water pump constructed by the Chinese is called” water windmill”. latterly, around 300 BC, the emergence of the” Archimedes screw pump” is more analogous to ultramodern pumps. In addition, the following introductory knowledge points are what you must understand.
1. Centrifugal pump

Centrifugal pump is the most common type of pump. In simple terms, the working principle of centrifugal pump is to rotate the impeller to drive the liquid under the action of centrifugal force. The liquid leaves the impeller and enters the volute. As the inflow passage of the volute gradationally expands, the fluid haste slows down, and the pressure rises continuously, and eventually it’s discharged through the conduit.
2. Impeller
The impeller is one of the main factors in the water pump, and it’s the core element that transmits mechanical energy to the liquid. The impeller is substantially divided into three types open type,semi-open type and closed type. The material conditions for the impeller are high, wear resistance is needed, and the manufacturing process is good.

3. Cavitation

Cavitation is the conformation of numerous bitsy recesses when the liquid connections the liquid under high- speed inflow and pressure, and gradationally expands into grottoes when serious, and cavitation frequently occurs in the impeller and pump covering.

EEJ fire pump set is composed of two electric pumps and one jockey pump. The fire pump adopts ISW pump, which has the characteristics of convenient installation and convenient maintenance, and is widely used in any fire emergency situation.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake).

There is a combination equipment that uses diesel as fuel for firefighting, but it is usually used as a backup firefighting facility, because it can only be started automatically when the firefighting signal comes, and the electric water pump fails or the power supply is cut off, that is, the diesel engine firefighting pump set. It is very different from the electric fire pump in that it has its own independent power supply and storage system.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are also other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers and multi-stage fire pump furnaces, etc., can all be completed by means of fire pump systems.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Flow: 30-9000GPM
Head:3-20Bar
Caliber: 25-800mm
Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed: 740-2900r/min
Material:SS304, Bronze

The motor fire pump set is a fire pump powered by an electric motor, and generally consists of a group of fire pumps, motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps – the electric pump and the pipe charging pump work when there is electricity, and the diesel pump is started when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

The diesel engine fire pump set has the characteristics of high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. When the factory suddenly fails, the diesel engine emergency water supply pump set will automatically start to supplement the pressure of the pipe network.

Yes, diesel fire pumps can often be retrofitted or upgraded to improve performance, reliability, and compliance with current regulations or standards. This may involve replacing outdated components, installing new safety features or emission control technologies, or integrating digital monitoring and control systems. Retrofitting or upgrading diesel fire pumps can extend their lifespan, enhance their efficiency, and ensure continued compliance with evolving regulatory requirements.

The motor fire pump unit is powered by an electric motor to drive the fire pump and output pressure water for fire fighting. The pump unit is mainly composed of a motor, a water pump, a transmission device, a common base and an instrument table. The starter cabinet is installed near the pump unit for starting the motor.
The electric fire pump set has the advantages of quick start, reliable water diversion, stable operation, high degree of automation, wide range of pressure and flow, etc. It is an advanced and reliable fixed fire-fighting equipment.

Common issues with firefighting pumps include priming failures, leaks, clogs, engine or motor problems, and inadequate water supply. Troubleshooting steps may include checking for obstructions, inspecting hoses and connections, verifying fuel and oil levels, and consulting the pump’s manual for troubleshooting guidance.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Single-stage fire pumps have only one impeller, and multistage fire pumps can have two or more impellers. Because the pump core in them is different, the structure is different. The impeller of the multi-stage pump is more than that of the single-stage pump, which can achieve a larger head at the same flow rate. The multi-stage pump is the sum of the single-stage pumps, and the head and outlet pressure can be made very high.

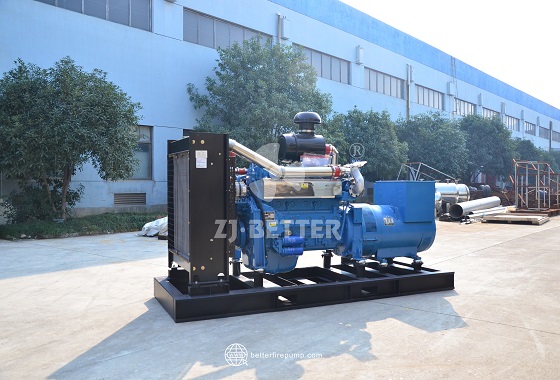

Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

A fire pump is part of the water supply for a fire sprinkler system and is powered by electricity, diesel or steam. It uses water from an external source to increase water flow and pressure. The pump inlet is either connected to a public groundwater supply line or to a static water source. The pump provides higher pressure water flow to the sprinkler system risers and hose risers. Fire pumps must be tested monthly and annually to ensure they are operating as designed. These two different tests are called the monthly “churn” test and the annual flow test.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

The dual-power fire pump is driven by a diesel engine. When the power grid cannot meet the requirements, the diesel engine can be used to drive the water pump to ensure that the unit can reach the running state.

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

The fire pump is actually a pump that needs to be used in fire protection. According to different classification methods, it can be divided into different types of pumps. With its characteristics of full sealing, no leakage and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. The pump types of the system are similar, but the head and flow are different. The selection basis of the fire pump should be considered from five aspects according to the technological process and water supply and drainage requirements. Fire truck fire pumps are used in fire protection, water treatment, environmental protection and other departments to pump various liquids.
