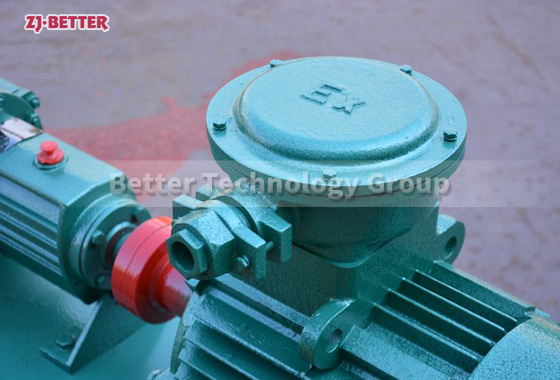

Efficient and Reliable IS Single-Stage Centrifugal Pumps for Fluid Transfer

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

Flow：50-5000 GPM
Head：3-16 Bar
ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

The video shows the process of electric vertical turbine pump testing. Vertical turbine pump is better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Vertical turbine pump is a kind of centrifugal pump. From the perspective of centrifugal pump, it is improved from the performance of submerged pump. The pump can be used to transport rainwater, iron oxide water, sewage, corrosive Industrial wastewater, seawater and other liquids. Widely used in water companies, sewage treatment plants, steel plants, mines and other industrial and mining enterprises, as well as municipal water supply and drainage, farmland irrigation, flood control and drainage projects.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

·UL Standard
Flow：100-2500 GPM
Head：90-250 PSI
·NON-UL Standard
Flow：250-10000 GPM
Head：30-200 m / 3-20 Bar / 40-290 psi

The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. The long shaft pump provides flexibility through customization options and multiple driving choices. It is a reliable solution for water supply, sewage treatment, and chemical processes. Choose the long shaft pump for reliable and efficient fluid handling in your engineering projects.

The XBD-W horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the XBD-W horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

– Jockey pumps in large-scale facilities:

Pressure Maintenance: Keep the fire protection system pressurized to prevent false alarms and ensure immediate response during a fire event.
Leak Compensation: Compensate for minor leaks in the system, maintaining steady pressure without activating the main fire pump.
System Readiness: Ensure the system is always ready for immediate use by maintaining constant pressure levels.

The pressure stabilizer pump is used in conjunction with the air pressure tank, which is generally a complete set of equipment. Simply speaking, when the water in the air pressure tank decreases (that is, when the user uses it), the gas pressure in the tank decreases. To draw water, it can meet the user’s use pressure and the storage pressure in the tank at the same time. When the storage pressure in the tank reaches the standard, stop the pump and wait for the user to use it.

Benefits include:

Sustainability: Reduce the environmental impact by using renewable energy sources such as solar or wind power.
Energy Security: Enhance energy security by reducing dependence on grid power and fossil fuels.
Cost Savings: Lower operating costs over time by utilizing free or low-cost renewable energy.
Resilience: Improve system resilience by incorporating renewable energy sources with battery storage, providing reliable power during outages.

Electric fire pumps offer several advantages compared to other types of fire pumps, such as diesel-driven or steam-driven pumps. Here are some of the key advantages of electric fire pumps

Key installation requirements include:

A stable and reliable power source, often with a backup generator.
Proper sizing based on the building’s fire protection needs.
Adequate ventilation and cooling in the pump room to prevent overheating.
Installation of controllers and alarms to monitor pump status.
Compliance with local fire codes and standards such as NFPA 20.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Vertical turbine electric pump are better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Flow: 30-5000 GPM
Head: 3-20.5BAR
Speed: 980~ 3550 r/min

Vertical turbine pumps are used to extract normal temperature water and warm water below 100¡ãC from wells, rivers, lakes and seas. It is more suitable for urban, factory sewage and water with high sand content in rivers and seas, and is widely used in factories and mines, cities and countries, planting and farmland irrigation. They are also used for groundwater supply in municipalities that do not depend on surface water.

The OTS Double-Suction Split-case centrifugal Pump with High-Pressure Electric Motor is an exceptional firefighting equipment. This powerful combination delivers high flow rates and unmatched pumping efficiency, ensuring robust and continuous firefighting actions. Its compact design allows for quick deployment and rapid response, making it suitable for various settings. From rural wildfires to urban firefighting needs, this firefighting pump safeguards communities of all sizes, representing the pinnacle of safety and protection.

CDL multistage pipeline centrifugal pump is my unit at home and abroad on the basis of excellent pump type combined with user requirements and fire protection standards.

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions. With its compact size and lightweight design, the pump is easy to install and maintain. It finds extensive use in industries such as chemical, petroleum, food and beverage, paper-making, and environmental protection. The pump’s leak-free and eco-friendly operation ensures safe and sustainable fluid handling processes. Its versatility, efficiency, and reliability make it an ideal choice for fluid transportation in various industrial applications.

ISG vertical single-stage single-suction centrifugal pump
1.Suction pressure≤1.0Mpa, or maximum operation pressure
of pump system≤1.6Mpa, that is, pressure in suction nozzle+pump
lift≤1.6Mpa. If operation pressure of pump system is higher than
1.6Mpa, it should be indicated in order, so that we can use more
reasonable material for flow and connecting parts in pump.
2. Ambient temperature＜40℃ ＜ , relative humidity 95%.
3. In the conveyed medium, solid particles should be less than
0.1% in unit volume, and granularity＜0.2mm.

Key performance metrics include flow rate (measured in gallons per minute, GPM), pressure (measured in pounds per square inch, PSI), and the pump’s power rating.

Flow：50-5000 GPM
Head：3-16 Bar
The XA series single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing.

Selection criteria include:

Required flow rate and pressure.
Depth and characteristics of the water source.
Type of installation (indoor or outdoor).
Compliance with relevant standards and regulations.
Environmental conditions and potential hazards.

Series OTS pumps are single stage,double suction with horizontally split casings.
They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105℃.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.
They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.
