EJ Fire Pump Set

diesel fire pump set, also known as a diesel engine-driven fire pump, is a type of fire pump system used for fire protection in buildings, facilities, and industrial settings. It is designed to provide water at high pressure and flow rates to fire sprinkler systems, standpipe systems, and other fire protection equipment in the event of a fire emergency. Diesel fire pump sets are an essential component of fire protection systems, especially in areas with unreliable or insufficient electric power supply.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EDJ fire pump set equipment produced by Better Technology Group Co., Ltd. is composed of electric fire pump and diesel fire pump. It is designed and manufactured according to the fifth part of GB 27898.5-2011 fixed fire water supply equipment <>, in line with the new 3CF Require certification and obtain 3CF certification for fire protection products.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Setting up the fire pump control system correctly is crucial to ensure the pump operates efficiently and reliably during emergencies. Here are the general steps to set up the fire pump control

– Marine-Grade Materials: Using materials that can withstand the corrosive marine environment.
– Integration with Ship Safety Systems: Coordinating with onboard safety systems for comprehensive fire protection.
– High Capacity Systems: Providing high-capacity systems to handle fires on large ships and offshore platforms.
– Compliance with Maritime Safety Standards: Adhering to fire safety regulations specific to the shipping and maritime industries.

The fire pump set is a customized 160kw EDJ fire pump, which is composed of electric pump + diesel pump + jockey pump. It is a standard fire pump set, which is easy to install the fire pump set on site; easy to debug; Wiring electrical connections; less space requirements; all (pump, drive and controller) on one base, etc.

In the daily maintenance of the fire pump, we need to meet the following requirements: we need to ensure that the water inlet and outlet pipes, the various components of the controller, and the diesel engine system can work normally, and ensure that the power part is firmly connected to the water pump. We also need to check the opening status of the pump room, fire pump system, and various valves to ensure that the pump room has good heat dissipation conditions and that the components of the pump are in normal working condition.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

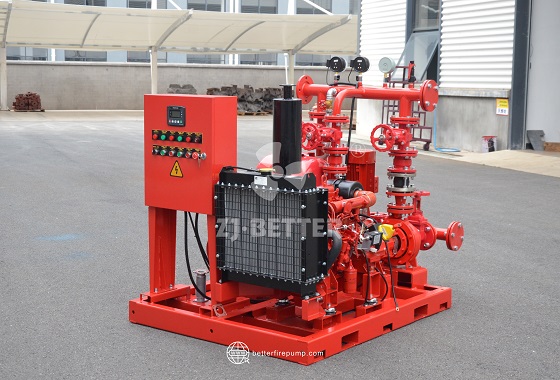

Diesel engine with mechanical emergency fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, and convenient maintenance. Where batteries are allowed to be used, the unit can be installed and used with a battery starting device. The diesel engine is vertical, multi-cylinder, four-stroke, water-cooled. It can also be matched according to the requirements of air cooling.

Diesel engine fire pumps are aimed at fire-fighting water supply for large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel, with a wide range of flow and pressure. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel fire pumps are ideal for applications where a separate pump room already exists or where the pump room is located on an exterior wall. Facilities using diesel fire pumps include warehouses, aircraft hangars and industrial facilities. Since they have a larger footprint than electric fire pumps, they are not suitable for installations where space is small. Unlike diesel pumps, electric fire pumps can be located inside buildings. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps – the electric pump and the pipe charging pump work when there is electricity, and the diesel pump is started when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

While the primary purpose of fire pumps is firefighting, some systems may incorporate them for other water supply needs, such as industrial processes or water distribution. However, their design and functionality are optimized for firefighting applications.

Fire pump maintenance is essential to guarantee the system’s longevity and reliability. This article provides an in-depth examination of best practices for fire pump maintenance, covering preventive maintenance schedules, routine inspections, lubrication, and replacement of wear components. It emphasizes the role of NFPA standards in guiding maintenance procedures and underlines the importance of documenting all maintenance activities.

The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

1. The fire pump should be capable of supplying the rated flow and pressure for a duration of two hours, at a rate of 150% of the rated capacity, and should not be affected by prolonged operation.

2. The fire pump should be able to start up automatically by a power source when activated.

3. All switches, gauges, alarms, controllers and monitoring systems should be certified to UL and FM standards.

4. The fire pump should be sized to meet the NFPA 20 standard for fire pump design.

5. The fire pump should be able to handle the maximum system flow and pressure required for the building.

6. The fire pump driver should match the requirements of the pump and meet NFPA 20 requirements for fire pump drivers.

7. The fire pump should be installed according to NFPA 20 standards for fire pump installation.

8. The fire pump should be tested and inspected in accordance with NFPA 25 standards for testing and inspection of fire pumps.

This fire pump set uses Cummins diesel engine and ISO pump. The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, other diesel engines can also be equipped as power engines according to the needs of users.??

The kit includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories on the base. Fire pumps shall be end-suction or single-stage horizontal split or horizontal multi-stage centrifugal, depending on system capacity and head requirements. The electric fire pump is flexibly coupled with the motor. The diesel engine is fixed on the base with an anti-vibration rubber pad, and the pump is directly coupled with the diesel engine through an elastic coupling, according to the power output of the engine.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

EDJ fire fighting package set is composed of diesel fire pump, electric pump, jockey pump.
Electric pump can choose single-stage pump, horizontal split case pump, end suction pump, multistage centrifugal pump, vertical turbine pump which are made of cast iron or stainless steel. Regarding to the impeller, we also could choose the bronze impeller.
Diesel fire pump, the flow is same as the electric pump. The diesel engine is combined by high elastic coupling or universal joint connection. The diesel fire set also includes fuel tank, water tank, fan, control panel and other components.
Jockey pump which is horizontal or vertical. Normally, it has the characteristics of small flow and higher head (more10-15m head than the electric pump and diesel pump).

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
