Electric fire pump set is used for pressurization and water delivery of fire system pipelines

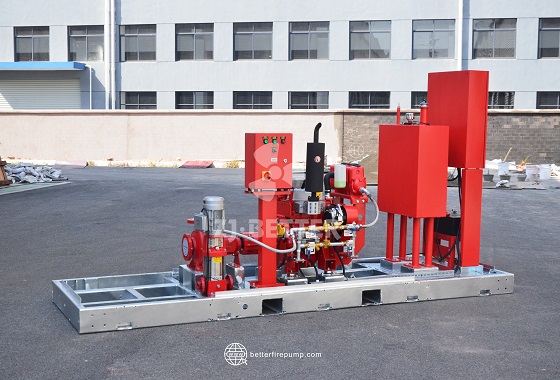

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pump is a special diesel engine equipment, which has the characteristics of simple structure, reliable operation and long service life, and is widely used in the field of fire protection. When using a diesel engine fire pump, it is necessary to pay attention to maintenance and maintenance, and replace fuel, oil and filters in time to ensure the normal operation of the fire pump.

As the name implies, fire pumps are used in firefighting. They are divided into different types according to different classification methods. They are widely used in environmental protection, water treatment, firefighting and other departments to pump various liquids due to their fully sealed, leak-free, and corrosion-resistant characteristics. , It is the ideal pump for creating leak-free, pollution-free civilized workshops and civilized factories.

Better Technology Group Co., Ltd. is a manufacturer specializing in 3CF products such as fire pumps, XBD fire pumps, diesel engine fire pumps, diesel engine water pumps, diesel engine self-priming pumps, fire pump control cabinets, and fire-fighting gas top pressure equipment. Pressure equipment fire water supply equipment, diesel engine fire pump group, submersible fire pump, non-negative pressure water supply equipment, fire water supply equipment, submersible sewage pump, self-priming sewage pump, WQ non-clogging sewage pump, ISG, IRG, IHG, ISGD series Vertical pipeline pump, ISW, ISWD series horizontal centrifugal pump, DL type vertical multistage pump, GDL type detachable pipeline multistage pump, fire pump, LG demountable high-rise building water supply multistage pump, frequency conversion water supply equipment, etc. . Better Technology Group Co., Ltd. is looking forward to your visit!

Zhejiang Better Technology Group Co., Ltd. mainly produces various industrial pumps, electric motor fire pumps, diesel engine fire pumps, fire-fighting special water supply equipment, fire-fighting dual-power water supply equipment, general-purpose fire-fighting gas top pressure water supply equipment, fire pump control cabinets, fire-fighting frequency conversion automatic Inspection cabinets, fire protection dual power supply cabinets, submersible sewage pumps, pipeline pumps, chemical pumps, oil pumps, slurry pumps, vacuum pumps and complete sets of vacuum equipment, non-negative pressure water supply equipment, frequency conversion constant pressure water supply equipment and water tanks of various materials, fire protection, Domestic pump room control cabinets, etc., products are widely used in agriculture, machinery, chemical industry, papermaking, medicine, food, sugar, electronics, metallurgy, ceramics, water diversion, printing and dyeing, building materials and other fields.

The National Fire Protection Association (NFPA) has established standards and guidelines governing the installation and maintenance of fire pumps. NFPA 20, the Standard for the Installation of Stationary Pumps for Fire Protection, provides comprehensive requirements for fire pump design, installation, testing, and maintenance.

Compliance with NFPA 20 standards is essential to ensure that fire pump systems are installed and maintained in a manner that meets nationally recognized safety practices. These standards help ensure the reliability and effectiveness of fire pumps in protecting lives and property during fire emergencies.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Fire pumps are often integrated with fire alarm systems to provide automatic alerts in case of pump activation or failure. This integration ensures that building occupants and emergency responders are immediately informed during a fire event.

Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.

The minimum rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum rated capacity is 25 GPM.EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories,measurement and control instrunnents, control cabinets, outdoor rain cover, etc.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Floating impeller axial force tone- balancing device
The balancing slice device has two gaps, the radial gap behind the impeller and the axial gap of the balancing slice, because of these two gaps, the balancing slice can automatically acclimate the axial l gap to achieve automatic balance of axial force, and the tableware rotor is in a floating state.

The principle of the balance plate is scattered to the impeller, the impeller back mouth ring radial concurrence below the axial concurrence, this device that’s the same as the balance plate, the conformation of two gaps, only in a different position. Because the impeller has these two gaps to round each other, so that the impeller can also achieve automatic balance of axial forces.

Fire pumps are pumps used in fire protection. They are divided into different types according to different classification methods. They have the characteristics of full sealing, no leakage and corrosion resistance. They are widely used in environmental protection, water treatment, fire protection and other departments. Liquid is an ideal pump and fire-fighting system for creating a leak-free, pollution-free civilized workshop and civilized factory. The pump types are similar, but the head and flow are different. The selection basis of the fire pump should be considered according to the process flow, water supply and drainage requirements, and other five aspects.

Electric Fire pump set consists of a main electric pump(driven by electric motor), a multistage jockey pump, control panel and accessories. We provide high quality and competitive price fire pump system. Welcome to inquiry

Fire pump systems are comprised of various components, each playing a critical role in ensuring their proper function. Some of the key components include:

Fire Pump: This is the heart of the system, responsible for pressurizing the water and sending it to the fire protection devices.

Controllers: Controllers monitor the system, automatically starting the pump in response to a fire alarm signal and providing system status information.

Suction and Discharge Piping: Properly designed piping is essential for efficient water flow. Suction piping brings water to the pump, while discharge piping carries it to the fire protection devices.

Pressure Relief Valves: These safety valves release excess pressure to prevent damage to the system.

Valves: Various valves control water flow within the system, allowing for isolation, testing, and maintenance.

These components work in concert to provide reliable water distribution in case of a fire.

0TS series double suction horizontal split case pump is a new series designed based on improvement and innovantion of our company’s traditional products;S、 SH、 SA series, provide a wider range of hydraulic coverage and wide variety of application.
FEATURES Split case design permits easy disassembly, that is, inspection issimplified, it is not necessary to disturb pump alignment and suction&dscharge piping when parts replacement is necessary.
Double suction with advanced designof suction perfromance ensures high suction lift even with large capacity.

XBC diesel engine fire pump set is in accordance with the standard GB6245-2006 “Fire Pump Performance Requirements and Test Methods”. This series of products has a wide range of head and flow, which can fully meet the fire water supply in various occasions of industrial and mining enterprises such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, and textiles. The advantage is that the electric fire pump cannot be started after the power system of the building suddenly loses power, and the diesel engine fire pump is automatically started and put into emergency water supply.

Fire pumps are used to pump all kinds of liquids. They are ideal pumps and fire-fighting systems for creating non-leakage, non-polluting civilized workshops and civilized factories. They are often installed on fire trucks, fixed fire-extinguishing systems or other fire-fighting facilities for transportation. Special pumps for liquid extinguishing agents such as water or foam solutions. Fire Pump
Widely used in environmental protection, water treatment, fire protection and other departments.

EJ fire pump is composed of electric pump + jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc. The pump set is deeply loved by domestic and foreign customers.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System includes two electric pumps and a jockey pump.With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Electric fire pumps are mainly used for fire-fighting water supply in high-rise buildings, with a wide range of head and flow. Basically, the needs of most users can be met. The operation of electric fire pumps is relatively simple. The main function of electric fire pumps is water supply. If Insufficient water output will affect emergency use, so everyone should choose a matching and suitable fire pump model.

Guide readers through the process of determining the ideal fire pump size based on their facility’s unique layout, occupancy, and fire suppression needs. Explain concepts like required water flow rate and pressure, and recommend consulting with a fire protection engineer. Discuss how undersized pumps may fail to provide adequate protection, while oversized pumps may lead to unnecessary costs and maintenance.

Flow:5-400L/s
Head:3-20Bar
Material:HT200, SS304, Bronze
Caliber:65-350mm
Pressure:0.3~1.5MPa
Speed:740-2900r/min

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake).

Safety precautions include wearing appropriate protective gear, ensuring proper ventilation when operating gasoline or diesel-powered pumps indoors, following proper procedures for fueling and starting the pump, and maintaining a safe distance from flames and hazardous materials.

“Fire-fighting gas top-pressure water supply equipment is usually composed of basic components such as air-pressure water tanks, control cabinets, top-pressure gas storage systems, and decompression release devices; in the fire-fighting state, compressed gas is charged into the air-pressure water tank to replace the fire-fighting water storage in the tank. , and always maintain the rated working pressure of fire protection, and the fixed fire water supply equipment that supplies water to the fire pipe network.”

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

Electric motor fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire water. The electric motor fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.
