Electric fire pump set

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Electric fire pumps are driven by electric motors, and are divided into horizontal, vertical and many other structural varieties. The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance. Although electric fire pumps have the advantages of simple operation and maintenance, most fire protection system design specifications stipulate that when electric fire pumps are used, they should have the conditions for dual-circuit power supply, and diesel engine fire pumps are usually used as backup pumps.

The advantage of its product is that when a fire occurs, the power supply fails, and the electric fire pump set cannot be put into use normally, the diesel engine fire pump set can be put into operation automatically to ensure the normal fire fighting. Compared with the electric fire pump set, it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time. The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

With the advent of the information age, people have higher requirements for the quality of life, and fire safety is particularly important for high-rise buildings. The state attaches great importance to fire safety work. All workplaces require us to be equipped with fire safety facilities, and fire pumps are necessary water intake equipment for fire infrastructure. The commonly used fire pumps in my country are electric fire pumps and diesel fire pumps. The difference between the two is that electric fire pumps require a power system, and diesel engine fire pumps can be started at any time to fill the original position of electric fire pumps.

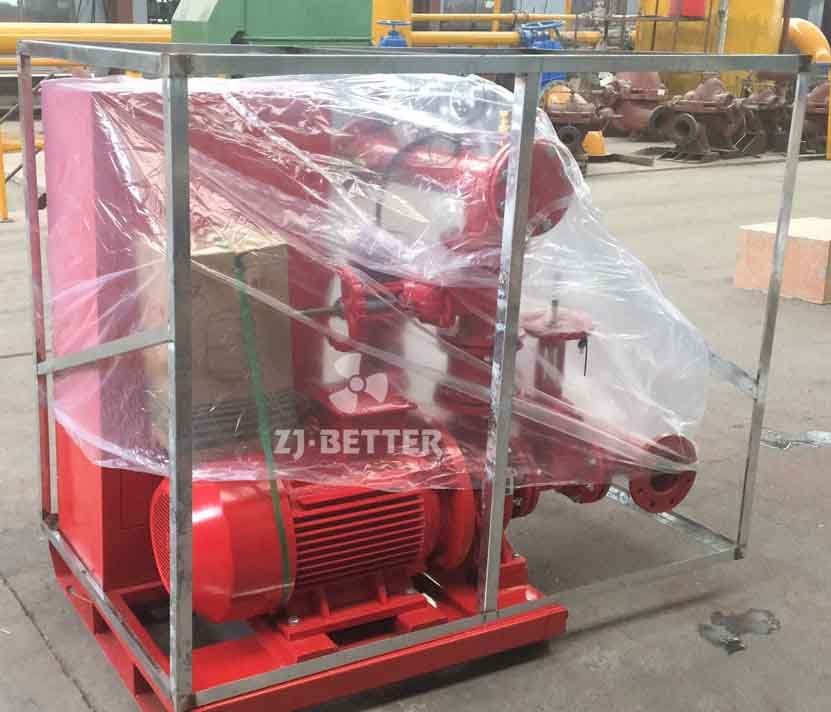

Small electric fire pump set consist of one electric pump, jockey pump, control panel and accessories.

1. The fire pump pump room should be located close to the water source.

2. The location should allow easy access for maintenance and repair.

3. The area should be well-ventilated and protected from extreme weather conditions.

4. The room should be suitable for operation and maintenance of the fire pump system.

5. The pump room should be protected from unauthorized access.

6. The area should not be subject to flooding.

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. They are mainly composed of XA pump driven by electric motor and spare pump of XA pump driven by diesel engine. The flow rate is large and the lift is high. This set of equipment is suitable for all kinds of fire fighting. emergency situations.

Diesel engine fire pump is simple in structure, reliable in performance, small in size, light in weight, good in corrosion resistance, low in power consumption, easy to use and maintain, suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating , papermaking, petroleum, mining, equipment cooling, tanker unloading, etc. Diesel engine fire pumps are used in warehouses, wharfs, airports, petrochemicals, power plants, liquefied gas, textiles, ships, tankers, enterprise backup and other fire-fighting water supply in various occasions, and can also be used for domestic water supply.

Dual power fire pump has high efficiency, remarkable energy-saving effect, compact structure, low noise, small floor area, saving investment and energy, and has obtained UL certification.

The fire pump’s pump casing should be regularly inspected for signs of corrosion, warping, and damage. The casing should also be visually inspected for leakage, and all fittings should be tested regularly to ensure they are properly sealed. All gaskets and seals should be checked for wear and replaced when needed. The impeller should be routinely checked to make sure it is free of debris and that all blades are in good condition. Any abnormal sound or vibration should be investigated immediately.

Multi stage pump refers to a pump with two or more impellers, which can absorb and press water in stages and stages, so as to lift the water to a very high position. The lift can increase or decrease the number of stages of pump impellers according to needs; When the single-stage pump head needs to be equipped with two-stage motors, the multi-stage pump can be equipped with four-stage motors by increasing the number of impellers, which can improve the service life of the pump and reduce the noise of the unit. When the actual required lift of the pump is less than 125 meters, the selection of a single-stage pump or a multi-stage pump can be comprehensively considered according to the area of the pump room, the pump price (the price of a multi-stage pump is generally higher than that of a single-stage pump) and other factors.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

XBD series fire pump sets are mainly used for fire hydrant fire extinguishing systems and automatic sprinkler fire extinguishing systems in fixed fire protection systems of various enterprises, institutions, engineering construction, high-rise buildings, etc. The chemical properties are similar to the medium of water, and it can also be used for fire protection, living, production, public water supply systems and buildings, municipal water supply and drainage, etc.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Residential buildings may have specific regulations governing fire pump installations, depending on factors like building size, occupancy, and local codes. Compliance with these regulations is crucial for ensuring safety.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

At the morning of the design of the fire pump, the lift, inflow and power are different according to the occasion and model. In general domestic structures, the choice of fire pump is also different according to the age, the height of the bottom, and the number of residers.

The fire pump is used for conveying clear water without solid patches and liquids with analogous physical and chemical parcels to water. Water force, heating, restroom, boiler hot and cold water rotation, water force of pressurized air exertion refrigeration system and outfit matching and other occasions.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Fire pumps are necessary because municipal water supplies might not always provide sufficient water pressure to effectively fight fires in large buildings or areas. Fire pumps boost the water pressure to ensure proper coverage and firefighting capabilities.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the fire control system control cabinet produced by our factory to realize the function of remote monitoring.

Product Overview
Product Introduction of EDJ Fire Pump System
1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

Fire pump is a general term for special pumps involved in water supply of various fire systems. The fire pump model is XBD. Fire pumps must be tested and approved by relevant national units before they can be used in various fire protection systems in buildings, such as: fire hydrant system, sprinkler fire extinguishing system, foam fire extinguishing system, large space high-altitude water cannon, water mist fire extinguishing system, rain shower fire extinguishing systems, water curtains, etc.

XBC diesel engine fire pump set is in accordance with the standard GB6245-2006 “Fire Pump Performance Requirements and Test Methods”. This series of products has a wide range of head and flow, which can fully meet the fire water supply in various occasions of industrial and mining enterprises such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, and textiles. The advantage is that the electric fire pump cannot be started after the power system of the building suddenly loses power, and the diesel engine fire pump is automatically started and put into emergency water supply.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Prior to installation, fire sprinkler systems are hydraulically calculated to ensure adequate water flow and that the system can reliably suppress a fire until fire crews arrive. When it is determined that there is insufficient flow from a municipal supply for the system to function properly, a fire pump is installed. The fire pump activates when the sprinkler system pressure falls below a certain threshold as a result of sprinkler head operation. To maintain the required operating pressure of the sprinkler system, the fire pump draws additional water from the municipal water supply or on-site storage tanks. Due to the size of piping systems and pressure loss, fire pumps are frequently required in high rise construction and large area buildings.

The fire-fighting dual-power water supply equipment is suitable for all kinds of emergency backup pump places. The dual-power fire pump is suitable for various fire-fighting pressurization and pressure-stabilizing pump occasions; various villas, residential areas and other fire-fighting systems; industrial and civil building fire-fighting systems; suitable for various oil depots, oil product loading and unloading terminals, logistics parks and other fire protection levels Demanding places.
