Emergency Ready: High-Performance Diesel Fire Pump Solutions

Diesel engine fire pump XBC-D equipment is powered by X6135, 12V135, 4102, 4105, 6102 and other series diesel engines. The diesel engine (can be equipped with a clutch) is connected with the fire pump through a highly elastic coupling to form a fire pump group. The unit also includes a diesel tank. , cooling water tank, fan, control panel (for automatic units) and other components.

-UL Standard:
Flow：100-3000 GPM
Head： 90-250 PSI
– NON-UL Standard:
 Flow：100-10000GPM
Head： 40-250 PSI

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw

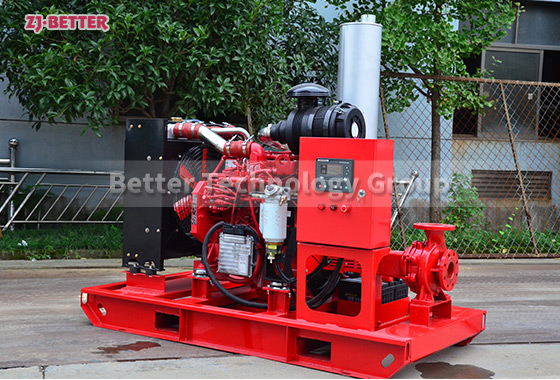

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Diesel engine fire pumps are very versatile and play a very important role in fire protection. Using it can also solve many problems that we could not solve before, and it has brought great help to firefighters. It saves time and effort. efficiency.

The XBC-D Diesel Engine Fire Pump is specifically designed for various firefighting locations, including factories, commercial buildings, residential areas, and public facilities. It provides a reliable source of firefighting water and increases water pressure to meet emergency water supply and firefighting needs, especially in situations without electricity supply or during power outages.

The scientific name of diesel engine self-priming pump is: self-priming diesel pump unit, also known as diesel engine-driven non-clogging pump, is mainly used for municipal sewage and waterlogging prevention projects, garden irrigation, industrial drainage, sewage and other wide uses. According to the type, it can be divided into, Ordinary type, outdoor type and mobile type (two-wheel mobile type and four-wheel mobile type).

The XBC-D Diesel Engine Fire Pump is specifically designed for various firefighting locations, including factories, commercial buildings, residential areas, and public facilities. It provides a reliable source of firefighting water and increases water pressure to meet emergency water supply and firefighting needs, especially in situations without electricity supply or during power outages.

The advantages of diesel engine fire pumps are wide application range, convenient use and high efficiency. It can start quickly and provide emergency fire protection in the external environment without electricity. The diesel engine fire pump can ensure that the water pump will not overheat during long-term operation through the diesel engine cooling system. Moreover, this type of fire pump can better store water resources and avoid disasters caused by insufficient water sources during fire fighting. In addition, the construction of diesel engine fire pump is simpler than traditional fire fighting equipment, and it is easier to maintain and maintain.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

The XBC-JC Diesel Engine Driven Vertical Turbine Fire Pump is a reliable and efficient hydraulic solution designed for extracting water from deep wells and hot springs. With its unique long shaft design and advanced technology, this pump delivers powerful pumping capacity and lift height, swiftly transporting large volumes of water to desired locations. Its compact structure makes it suitable for various complex working environments, including construction sites and agricultural irrigation. Equipped with an automatic start-stop function, the XBC-JC pump intelligently controls its operation, saving energy and reducing maintenance costs. It finds versatile applications in firefighting, urban water supply systems, and hot spring facilities, providing dependable hydraulic support for smooth operations.

The XBC-IS 10/50 fire pump has a wide range of applications. It is suitable for fire protection systems in various buildings, factories, warehouses, ports, and ships. Whether you are in a large office building in the city center or an industrial area far from the city, the XBC-IS 10/50 fire pump can provide reliable firefighting support in emergency situations. It is an ideal choice for equipping your fire protection systems.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The Diesel Single-stage Single-suction Fire Pump is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the Diesel Single-stage Single-suction Fire Pump delivers dependable performance to safeguard lives and properties from fire risks.

The fire pumps used in diesel engine fire pump sets can be IS series single-stage type, S series new single-stage double-stage type, and D-type series segmental multi-stage type produced by our company. The diesel engines used in this series of equipment are domestic or imported products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a reliable fire-fighting equipment.

The diesel engine fitted with the equipment is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The equipment is really a fire-fighting one advanced and reliable in performance.

This diesel fire pump adopts OTS pump, which has large flow and fast speed. The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working status of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable.

The diesel engine fire pump has automatic, manual and fault self-inspection functions. It can monitor the working status of the whole process, restore the fault start, automatic pre-lubrication and preheating automatic restart function, and make the equipment start safer and more reliable. It has the functions of central control room remote control, remote transmission control and field bus connection. The battery is fully automatic floating charging (constant current, constant voltage, trickle charging) mode to ensure that the battery is in a standby state at any time. The diesel engine fire pump is easy to use, equipped with remote transmission meters and meters, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-400 mm
Frequency：50 or 60 Hz

The correct maintenance of the diesel engine fire pump, especially the preventive maintenance, is easy and economical maintenance, so it is the key to prolong the service life and reduce the cost of use. Daily maintenance can be carried out according to the following steps to check the amount of fuel in the fuel tank – check the amount of fuel stored in the fuel tank and add it as needed.

Diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc. Heavy duty pump bearings – longer life; other components are selected from high-quality copper and stainless steel or by customer. The diesel engine fire pump has a high-efficiency open impeller design, which can handle large solids and abrasive materials while maintaining high flow rates, and high-volume air handling can be used for more “well point dewatering projects”.

Diesel engine fire pumps can choose ductile iron and 304 stainless steel materials, which can meet various special use conditions and technical requirements of users, and diesel engine fire pumps can be matched with different brands of diesel engines to ensure stable performance and long service life of diesel engine fire pumps Long, high degree of automation.

Fire pump is a kind of water pump widely used in environmental protection, sewage treatment and fire fighting units. It is similar to the general pump, but its head and total flow are different. And the pump can also be divided into single-stage and multi-stage two forms according to the structure.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system to realize the function of remote monitoring.

This fire pump features an advanced dual-power system, supporting both electric and diesel modes to ensure uninterrupted operation even during power outages. The high-efficiency pump body delivers a stable and powerful water flow, meeting emergency rescue demands. Its automatic control system enables remote monitoring and intelligent alarm functions, providing real-time equipment status feedback for enhanced safety. With a compact structure and small footprint, it is easy to install and maintain, making it suitable for various complex environments. Additionally, the pump is built with corrosion-resistant materials, ensuring long-term stability and reduced maintenance costs, offering users a highly reliable fire protection solution.

The Diesel Engine with Mixed Flow Pump is an advanced firefighting and rescue equipment. This combination consists of a robust diesel engine and an efficient mixed flow pump, offering advantages such as independent power supply, high performance, agile mobility, versatility, and cost-effectiveness. During sudden fire emergencies, the Diesel Engine with Mixed Flow Pump operates autonomously, requiring no external power source, and rapidly provides a substantial water supply to minimize fire damage. Its exceptional mobility allows firefighters to swiftly transition and address ever-changing disaster scenarios. It is suitable for various environments, especially in areas with unstable power supply, where it maintains its peak efficiency. Moreover, this equipment is cost-effective, easy to maintain, and offers long-lasting firefighting assurance.

Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

Flow rate:80-3000 gpm
Head: 20m- 180 m
Speed:1500-1800 rpm

Diesel emergency fire pumps are suitable for pressurized water supply in fire pipelines. Or it is used to transport clear water or other liquids with physical and chemical properties similar to clear water for pressurization. The temperature of the medium does not exceed 80°C. It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other cold and hot water cycle pressurization and equipment matching.

Diesel engine fire pump is suitable for unattended fire water supply system. Diesel engine fire pump is mainly used for fire hydrant fire extinguishing, automatic sprinkler fire extinguishing and other fire fighting systems in fixed fire fighting systems such as industrial and mining enterprises, engineering construction, and high-rise buildings. The clean water and chemical properties of the particles are similar to the medium of water, and can also be used in life, production and shared water supply systems and buildings, municipal water supply and drainage, docks, offshore platforms and other occasions without power supply.

1. Natural ventilation When setting up and arranging diesel machine fire pumps, it’s first necessary to consider adequately sized ventilation openings and exhaust openings, and secondly, to insure that there’s enough fresh air to supply diesel machine combustion within the temperature limit. In this way, the heat of the circulating cooling water can be taken down by the water force radiator to take down the heat radiated from the face of the unit.

2. Forced ventilation when the natural ventilation conditions can not be met, forced ventilation can be espoused. Inlet suckers and exhaust suckers can be installed at the reflections. The addict specifications and the position of the air bay and outlet in the machine room should be named to give enough cold air for the diesel machine. At the same time, the hot air in the pump room is taken down, and the small air input volume of the unit needs to be about 6- 7 times that of the diesel machine air input.

3. Arrange grooves and seamsters By arranging seamsters around the unit foundation and arranging mountain grooves in the middle of the unit foundation, the purpose of this is to grease the flushing of sewage and diesel oil painting, thereby icing the sanitation of the pump room.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.
