Enhanced Safety with ED Fire Pump

Application Scope:

Equipment for small buildings, warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction:

Altitude ≤ 1000m;

Ambient temperature: +5 °C ~ +40 °C;

Relative humidity: <= 90%.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

EDJ fire pump set consists of main electric pump (motor driven), standby diesel pump (diesel engine driven) and jockey pump. The pump is assembled from discharge and suction pipes and a control panel. The fire pump system can be customized for different uses such as high-rise buildings, warehouses, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

Fire pumps are subject to rigorous testing and maintenance protocols to ensure they are always ready to operate in an emergency. This typically includes regular weekly or monthly churn tests, where the pump runs without discharging water, and annual flow tests, which verify that the pump can achieve its rated flow and pressure. These tests are crucial for identifying potential issues, such as wear and tear on components, blockages in the piping, or problems with the power supply. Additionally, fire pumps must be inspected for leaks, corrosion, and other signs of deterioration. Regular maintenance, including lubrication, alignment checks, and part replacements, helps extend the pump’s lifespan and ensures its reliability when needed most.

Local building codes dictate specific requirements for fire pump installation, including minimum flow and pressure, power supply standards, and room construction. Compliance with these codes is essential for the system’s approval and operation.

Fire pumps are widely used in our production and life, such as in water treatment, fire safety and other departments. After the reform and opening up, it is widely used in life and production due to its characteristics of complete sealing, no leakage, and corrosion resistance.

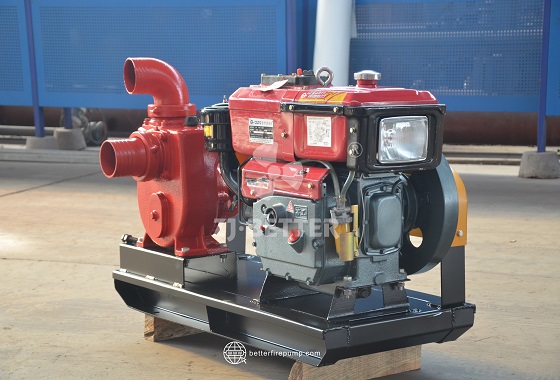

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

In fire protection systems, various types of fire pumps are used. Fire pumps are classified as horizontal split case, vertical split case, vertical in-line, vertical turbine, or end suction. These fire pumps may be powered by an electric motor, a diesel engine, or on rare occasion powered by a steam turbine.

Diesel engine fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. This diesel engine pump set can transport clean water or other liquids whose physical and chemical properties are similar to water. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump’s flow parts, sealing form and adding a cooling system.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

The EJ Pump Set is designed according to the customer’s specifications which is including 1 electric pumps, 1 jockey pump and 1 control panel.

1. Manual Operation: This method involves manually operating the fire pump by an operator who is trained to handle it.

2. Automatic Operation: This method uses an automatic sensing and control system to start and stop the fire pump when needed.

3. Pressure Control: This method uses a pressure switch to monitor the pressure in the system and activate the fire pump when necessary.

4. Flow Control: This method uses a flow switch to monitor the flow in the system and activate the fire pump when necessary.

5. Variable Frequency Drives (VFDs): This method uses a VFD to provide precise control over the speed and torque of the fire pump. This helps to ensure that the fire pump is operating optimally.

6. Remote Monitoring: This method uses a remote monitoring system to provide real-time data on the condition of the fire pump and to allow for remote operation if necessary.

Best practices for maintaining diesel fire pumps include following the manufacturer’s recommended maintenance schedule, conducting regular inspections of critical components such as belts, hoses, seals, and bearings, performing routine lubrication and fluid checks, and keeping detailed records of maintenance activities and any repairs or replacements performed. Additionally, it’s essential to address any issues promptly and to ensure that all maintenance personnel are adequately trained and equipped to perform their duties safely and effectively.

Instructions for use of EJ fire pump set:
Altitude: ¡Ü1000m;
Ambient temperature: +5¡æ¡«+40¡æ;
Relative humidity: <= 90%. Scope of application: Equipment suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

The jockey pump of the jockey fire water supply system must be kept running at ordinary times to maintain the pressure of the pipe network. When a fire occurs, it should still be able to run for a period of time until the main fire pump is started. It must be set according to the main and standby pumps. pressure pump. Due to the need for the stabilizing pump to keep running, energy is wasted, and the stabilizing pump is in working condition for a long time.

The use of fire pumps is generally based on different situations. Different types will have different classification methods. The fire pump is in its own fully sealed state, without the possibility of leakage, and can resist corrosion. , is widely used, and is mainly used in fire protection, sewage treatment and some departments of environmental protection. It is used to pump different liquids, so that there is no leakage and no pollution. It is very civilized A kind of fire engine, which is very beneficial to the use of all of us.

Outdoor controller for fire pump set use for outdoor fire pump set

The EJ model is basically a combination of an electric drive and a jockey pump. They consist primarily of an end suction pump driven by an electric motor, with no backup pump. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete EJ-style skid is assembled with all discharge line accessories and connected to the skid-mounted control panel.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The diesel fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a fire-fighting equipment with reliable performance. This series of fire pump sets has a wide range of head and flow, which can fully meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

diesel fire pump set, also known as a diesel engine-driven fire pump, is a type of fire pump system used for fire protection in buildings, facilities, and industrial settings. It is designed to provide water at high pressure and flow rates to fire sprinkler systems, standpipe systems, and other fire protection equipment in the event of a fire emergency. Diesel fire pump sets are an essential component of fire protection systems, especially in areas with unreliable or insufficient electric power supply.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The pump will start to work when the pressure in the fire extinguishing system pipeline of EDJ small Fire Fighting water supply equipment drops suddenly. The first triggered pump is the jockey pump(pressure stabili-zation pump). The pressure stabilization pipeline of the jockey pump is allowed to start frequently within a certain range. In general, the pressure of the jockey pump is 1-1.5 bar higher than that of the main pump.

Flow: 750GPM

Head:3-20Bar

Speed: 740-2900r/min

Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw

Reliable because of professionalism, specializing in the production of industrial centrifugal pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!
