Finished Fire Pump Packing

Diesel fire pump is suitable for discharging seriously polluted industrial wastewater, sewage discharge station in main residential area, water distribution system of urban sewage treatment plant, drainage station of civil air defense system, water supply equipment of waterworks, sewage discharge of hospitals and hotels, municipal engineering construction site, mine auxiliary machinery , rural biogas digesters, farmland irrigation and other industries. Sewage and dirt from conveyor belt particles can also be used for clean water and weakly corrosive media.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar

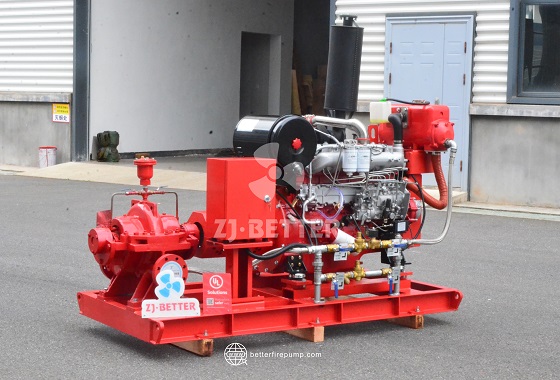

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

Regular maintenance is crucial to keep fire pumps in optimal condition. It involves inspecting, lubricating, and replacing components as needed. Maintenance helps prevent malfunctions, ensures reliability, and extends the life of the pump.

Fire pumps are an important part of the fire protection system, especially in high rise structures.In basic 400 – 500 or advanced water situations, fire pumps are important to distribute water into water lines and sprinkler systems where the water pressure of the fire fighting equipment cannot reach. Especially in low-rise structures, fire pumps are important for fire control.
Stylistically, fire protection is a dangerous activity, but without a well-designed and professionally installed system and pump, it certainly becomes more dangerous and commercial assets and lives are less at risk.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

EDJ fire pump set is composed of diesel engine pump + electric pump + vertical jockey pump. Diesel fire pumps are typically used where there are potential reliability issues with the local power grid, with available flows of 50-5000GPM.

DJ fire pump 500gpm, 7bar
Caliber: 150mm
Flow Range:500gpm
Pressure: 7bar
Matching Power: 37kW
Motor:3ph,415V,50Hz

Fire pump sets are often required when the local water system cannot provide sufficient pressure to meet the design hydraulic requirements of the fire sprinkler system. This typically occurs in multi-story buildings or systems that require relatively high terminal pressures at fire sprinklers in order to release large volumes of water, such as storage warehouses. A fire pump is also required if the water supply is provided from above-ground or underground storage tanks.

Our pump for pumps has ISO centrifugal pump with high efficiency, XA centrifugal single-stage pump, ISW centrifugal pump which can be used for all customers with more competitive price, XBD centrifugal pump which has same specification as ISW centrifugal pump, OTS split case which has high capacity to meet the customers requirements, D multistage pump with high pressure up to 60bar. JC vertical turbine pump for the water level lower than the pump suction. XBC diesel engine fire pump for all pumps use diesel engine.

1. Ensure that you understand the manual or instructions that accompany the fire pump and water pump.
2. Follow the manufacturer’s instructions and recommendations for installation and operation.
3. Make sure that the power supply used is in good condition and always isolated from the power when setting up the pump.
4. Make sure that the pump and its parts are maintained in perfect condition all times.
5. Test the readiness of the pump for use and ensure that it is in top working condition before putting it to use.
6. Determine the exact amount of water needed and make sure that the pump is operated within the recommended pressure limits and flow rates.
7. Do not operate the pump for longer periods of time than prescribed in the manual.
8. Use the proper safety equipment and clothing when operating the pump.
9. Ensure that the water is discharged in a controlled way.

Fire pumps are primarily designed for structural fire protection, and their use in wildfire prevention is limited. However, water pumps and other firefighting equipment may be employed for vegetation fire control in specific situations.

EDJ fire pump set consists of main electric pump (motor driven), standby diesel pump (diesel engine driven) and jockey pump. The pump is assembled from discharge and suction pipes and a control panel. The fire pump system can be customized for different uses such as high-rise buildings, warehouses, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Extreme temperatures, humidity, and corrosive environments can impact fire pump performance. Proper housing, insulation, and corrosion-resistant materials are necessary to protect pumps and ensure reliable operation.

• Automatic switching between three pumps, when the electric fire pump fails, the diesel engine backup pump will automatically start
• Works even with power outages
• Adopt high-quality NSK bearing, wear-resistant mechanical seal or packing seal
• Product parameters available upon request

Fire pumps play a pivotal role in fire protection systems by ensuring a reliable and pressurized water supply for firefighting efforts. When a fire breaks out, immediate access to water at a sufficient flow and pressure is critical to containing and extinguishing the flames. In many cases, the water supply provided by municipal water mains may not be adequate, necessitating the use of fire pumps to boost water delivery to firefighting equipment.

Fire pumps are especially crucial in large industrial or commercial buildings, as they ensure that every corner of the facility has access to water for firefighting. Without fire pumps, there might be inadequate pressure or flow, resulting in a delayed response, potentially leading to greater fire damage.

Fire sprinkler systems are an important part of life safety in buildings. International building codes allow some exceptions when buildings are “fully watered”, such as reducing rated spacing, reducing hydrant flow requirements, increasing exit travel distance, and increasing building height and area. These exceptions are allowed so that in the event of a fire, the sprinkler system will suppress the fire enough that occupants can safely evacuate the building and that the spread of the fire is contained before the fire department has fully arrived to extinguish it.

Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

Diesel fire pumps are suitable for the discharge of heavily polluted industrial wastewater, sewage discharge stations in major residential areas, water distribution systems in urban sewage treatment plants, drainage stations in civil air defense systems, water supply equipment in waterworks, sewage discharge in hospitals and hotels, municipal engineering construction sites, mine auxiliary machines , Rural biogas digesters, farmland irrigation and other industries. Sewage and dirt with conveyor belt particles can also be used for clean water and weakly corrosive media.

EDJ-ISW is a brand-new fire pump designed to tackle various fire scenarios. It is renowned for its exceptional performance and efficient operation, making it the ideal choice for fire safety. No matter the firefighting challenge you face, EDJ-ISW is a fire pump you can rely on. Choose EDJ-ISW and fortify your safety with solid fire protection.

Floating impeller axial force tone- balancing device
The balancing slice device has two gaps, the radial gap behind the impeller and the axial gap of the balancing slice, because of these two gaps, the balancing slice can automatically acclimate the axial l gap to achieve automatic balance of axial force, and the tableware rotor is in a floating state.

The principle of the balance plate is scattered to the impeller, the impeller back mouth ring radial concurrence below the axial concurrence, this device that’s the same as the balance plate, the conformation of two gaps, only in a different position. Because the impeller has these two gaps to round each other, so that the impeller can also achieve automatic balance of axial forces.

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump set are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. At the same time According to the material quotation required by the customer, accurate selection is conducive to on-site use and reduces failure problems.

The full name of diesel engine fire pump is engineering diesel engine fire pump set, which can be automatically charged, automatically started, and has the functions of automatic alarm and automatic preheating. The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

The equipment is suitable for fire water supply and emergency water supply in various occasions such as warehouses, docks, airports, petroleum, chemical, factories, power plants, liquefied gas, textiles, ships, cruise ships, etc.

The fire pump is part of the water supply of the fire sprinkler system and can be powered by electricity or diesel. The inlet of the pump is connected either to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). The pump supplies water at higher pressure to the sprinkler system risers and hose risers.
Fire pumps generally use three driving forces, including diesel engines, gasoline engines and electric motors. Gasoline engines are commonly used in portable fire pumps and light duty firefighting. Electric motors are the most widely used driving force for fire pumps and are both efficient and convenient.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

While firefighting pumps are specifically designed for extinguishing fires, they can sometimes be adapted for other applications, such as irrigation or water transfer, depending on the pump type and specifications.
