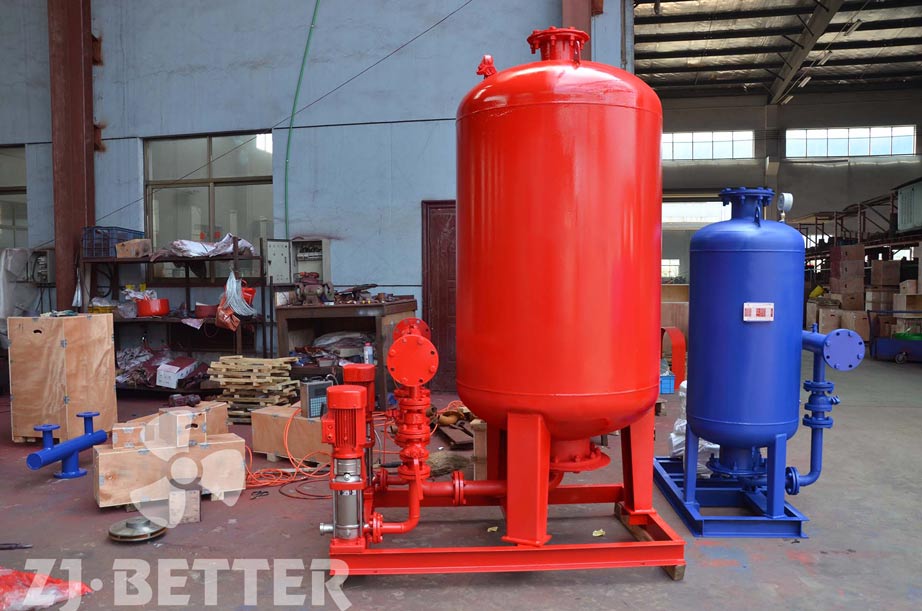

Fire booster and stabilized water supply equipment

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

ZJBetter provide three types of fire pump system, such as diesel engine fire pump set, electric driven fire pump set, EDJ fire pump set.

The various types of fire pump sets produced by our company mainly have the following characteristics: reliable performance, compact structure, convenient operation and maintenance, wide range of pressure and flow selection, and are highly praised by users. At the same time, our company can equip diesel engine cooling water preheating and engine oil pre-lubricating devices according to user needs, so that the fire pump set is always on standby to meet the emergency fire fighting equipment and improve the life of the fire pump set. The product is based on GB6245-1998 “Fire Pump Performance Requirements and Experimental Methods”.

Flow:5-400L/s
Head:3-20Bar
Material:HT200, SS304, Bronze
Caliber:65-350mm
Pressure:0.3~1.5MPa
Speed:740-2900r/min

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The split case Fire Pump Set is combined an electric split case pump and a jockey pump.

Fire pumps can encounter various issues that affect their performance. This article provides an in-depth guide to troubleshooting common problems, including cavitation, air binding, and leaks. It offers step-by-step solutions and preventive measures to address these issues and maintain reliable fire pump operations.

Diesel engine fire pump is a kind of mechatronics equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short time. Diesel engine pump set is driven by diesel oil without external power supply. Diesel engine pump is suitable for agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles and other fire-fighting water supply occasions, especially in the absence of electricity, When the power grid is not satisfied, it is the safest choice to use a diesel engine to drive the water pump.

1. Knowledge of Fire Pump Design and Components: Fire pumps are complex pieces of machinery, and technicians must be familiar with its components, including the electric motor, reservoir, impeller, and check valves.

2. Electrical Troubleshooting: Electric motor control centers, circuit breakers, and other electrical components must be understood by technicians in order to properly maintain fire pumps.

3. Instructions for Proper Maintenance: Technicians must be able to read and understand manufacturer’s instructions for inspection and required maintenance, such as oil and filter changes.

4. Record Keeping: Accurate records of maintenance must be kept in order to ensure that fire pumps are in peak working condition.

5. Diagnose and Repair of Pump Malfunctions: Technicians must have the ability to diagnose and fix common pump problems such as bearing wear, corrosion, and bearing failure.

6. Troubleshoot Accessories and Peripherals: Technicians should be familiar with fire pump accessories such as pressure switches, gauges, and houseline piping.

7. Handle Power Sources: Technicians must have the knowledge to recognize safe levels of power sources, such as AC or DC, to ensure fire pump operations.

8. Pressure Testing: Technicians must understand and follow safety procedures when pressure testing fire pumps and their related houselines.

“Fire-fighting gas top-pressure water supply equipment is usually composed of basic components such as air-pressure water tanks, control cabinets, top-pressure gas storage systems, and decompression release devices; in the fire-fighting state, compressed gas is charged into the air-pressure water tank to replace the fire-fighting water storage in the tank. , and always maintain the rated working pressure of fire protection, and the fixed fire water supply equipment that supplies water to the fire pipe network.”

Small flow fire pump unit, small volume, large space utilization rate, simple installation, long service life, exquisite appearance, and low price, is the best choice for many customers.

Yes, installing diesel fire pumps in different environments or applications may require special considerations to address factors such as ambient temperature, altitude, seismic activity, corrosive atmospheres, and specific regulatory requirements. For example, pumps installed in outdoor or exposed locations may require weatherproof enclosures or additional corrosion protection, while pumps installed in seismic zones may need to be anchored securely to withstand earthquakes.

The function of the diesel fire pump is very powerful. We can set the control time during use, for example: preheating in advance, pre-lubrication or timing start. The use of high technology has made some complicated and time-consuming things easier. The preheating setting in advance has greatly reduced the preparation time for rescue, allowing firefighters to rescue at the first time. In the face of disasters, time is money, time It is life.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

The diesel engine fire pump unit is directly driven by the diesel engine fire pump, and it is a mechatronic equipment that can start and complete the water supply in a short time. The diesel engine pump set is driven by a diesel engine without external power supply. Diesel pumps are suitable for fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, and textiles. Especially in the case of no electricity and dissatisfaction with the grid, choosing a diesel engine-driven water pump is the safest choice.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

EDJ-ISW fire-fighting pump set is a fire-fighting water supply equipment with dual drive of electric power and diesel engine designed and manufactured by Better Technology Group Co., Ltd. according to the standard of <>, and has obtained 3CF certification. There are many models of Beide fire pump sets, which can be customized according to needs.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

Fire pumps are used to pump various liquids. They are ideal pumps and fire protection systems for building non-leakage, pollution-free civilized workshops and civilized factories. They are often installed on fire trucks, fixed fire extinguishing systems or other fire-fighting facilities for transportation Special pumps for liquid extinguishing agents such as water or foam solutions. Fire pumps are widely used in environmental protection, water treatment, fire protection and other departments.

The kit includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories on the base. Fire pumps shall be end-suction or single-stage horizontal split or horizontal multi-stage centrifugal, depending on system capacity and head requirements. The electric fire pump is flexibly coupled with the motor. The diesel engine is fixed on the base with an anti-vibration rubber pad, and the pump is directly coupled with the diesel engine through an elastic coupling, according to the power output of the engine.

1. When the pipeline fire pump noise occurs, the most likely fault is the imbalance of the fire pump rotor. Since the water output of the fire pump mainly depends on the high-speed rotation of the rotor, when the rotor is unbalanced for some reason, it will cause the fire pump to deviate from the original rotation track during the rotation process, resulting in the fire pump appearing in the pipeline. When judging the failure of the rotor, it is mainly to replace the rotor of the pump or make a balance hole on the rotor blade of the pump to find out the balance difference.

2. The production noise of the fire pump pipeline has a certain effect. For example, forcing a small flow of a pipe “fire pump” to increase power to increase the original flow will create vibrations in the fire pump. Therefore, whether you use a pipeline fire pump or other types of water pumps, you should follow the water pump use standards to prevent the water pump from making noise, which will affect the service life of the water pump. The solution is to use the pump according to the instructions. If the efficiency of use is affected, it is recommended to replace the appropriate pipeline “fire pump” for use.

3. The installation did not meet the standards, resulting in abnormal noise from the pipeline fire pump. Fire pumps and fire hydrant pumps vibrate at a high frequency during operation, so they must be fixed during installation. If the bolt between the pump body and the base or between the base and the base is loose when installing the pipe fire pump, the transmission shaft between the pump body and the motor of the pipe pump will be bent. It lowered the concentricity and caused an imbalance in the fire pump rotor. This is one of the noise phenomena of fire pumps. In order to improve this phenomenon, the pump shaft of the fire pump needs to be balanced and then reinstalled. Finally, the base of the pump was reinforced.

4. Blockage of the impeller passage can also cause fire pump noise. When the internal flow channel of the fire pump is blocked by foreign matter, it will cause uneven resistance of the fire pump impeller and vibrate the fire pump. Therefore, it is necessary to regularly disassemble and maintain the fire pump to prevent foreign matter from blocking the pipeline.

5. The bearing of the fire pump is damaged. Bearing damage generally does not occur on the main body of an in-line fire pump. If there is a problem with the quality of the pump, or because some hard objects enter the pump body of the tube pump, the bearing is damaged, and the rotor is unstable at first. Causes noise from pipeline fire pumps.

6. Finally, cavitation, cavitation occurs in any type of pump, but some are obviously not noticeable. If cavitation occurs, consider raising the fire pump or increasing the pressure in the piping. If the cavitation phenomenon cannot be changed, the fire pump model needs to be redesigned and replaced.

The video displays a fire pump set consisting of jockey, electric, and diesel pump. The pump model is the OTS series.

Building occupants should receive training on the location and proper use of firefighting equipment, including fire pumps. Regular drills and educational sessions contribute to increased awareness and preparedness during a fire emergency.

Electric fire pumps have a wide range of uses, of course the most important ones are still used in the fire protection industry, and they are also used in water treatment and environmental protection industries. Among these uses, the firefighting profession uses the most. The fire pump is the advantage of fast water pumping that the firefighting profession has fully utilized. Because most of the work of the firefighting profession is to fight fires, the fire pump has played a great role.

The fire pump unit is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected to the input shaft of the fire water pump, and the other end of the output shaft of the double shaft extension motor is connected to a One end of the clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

Flow: 120GPM≤Q≤1500GPM
Rated pressure: ＜150m
Speed: 2950 to 3550 RPM
Frequency: 50Hz or 60Hz

Suction and Discharge Connections: The fire pump has dedicated suction and discharge connections for the water supply and the distribution system, respectively. The suction connection draws water from a water source such as a reservoir or hydrant, while the discharge connection delivers the pressurized water to the fire protection system.

The fire booster pump is designed to increase the flow and pressure rate of the water supply coming into the fire system. This is accomplished by drawing water from a municipality main, tank, or hydrant, and then boosting the pressure rate of the water supply with an electric motor and pump. The adjusting of the pressure rate is accomplished by changing the speed of the electric motor that is powering the pump, which in turn changes the amount of water being pushed through the system.

The fire pump is used to transport various liquids. It is an ideal pump and fire system for building civilized factories, non-leakage, and non-polluting civilized workshops. It is often installed on fire extinguishing systems, fire trucks or other fire-fighting facilities to transport water. Or a special pump for foam solution fire extinguishing. Pipeline fire pumps are widely used in water treatment, environmental protection, fire protection and other departments.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.
