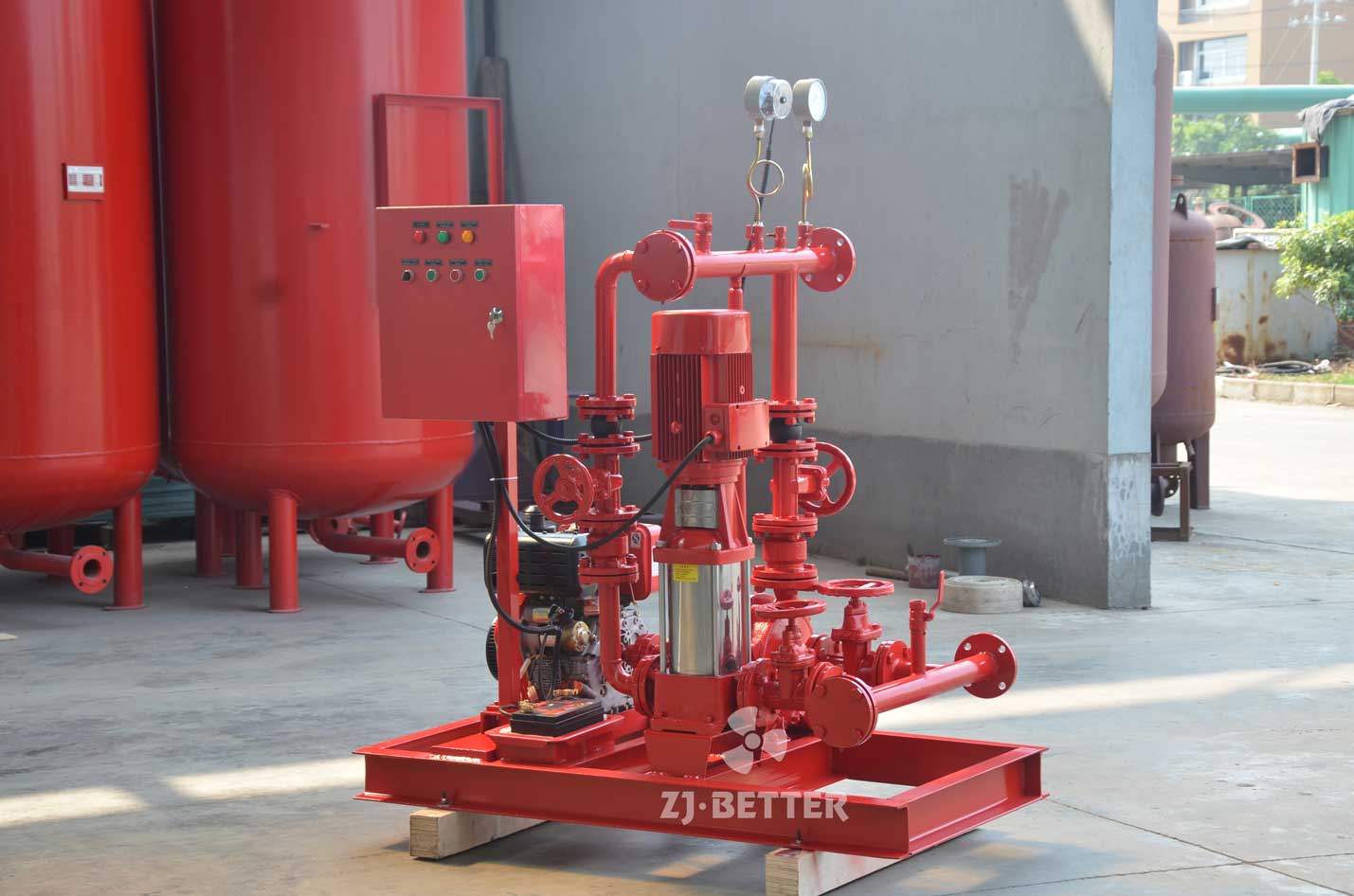

Fire fighting package set with small flow

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system produced by our factory to realize the function of remote monitoring.

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. The fire pumps we commonly use are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

The electric fire pump set is an important fire pump equipment, usually in a horizontal state. Each pump group is composed of five parts: front pump, electric motor, hydraulic coupling, main feed water pump, lubricating oil device (including lubricating oil cooler and working oil cooler. In normal state, two sets are running, one There are two standby pumps, and any feedwater pump set can be used as a standby pump. When one of the two running pumps stops due to an accident, the standby pump will be put into operation automatically.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

Fire pumps and jockey pumps work together to ensure that a fire protection system is always ready to operate at peak efficiency. The jockey pump is primarily responsible for maintaining the system’s normal pressure, compensating for minor leaks, and preventing the fire pump from running unnecessarily. When a fire occurs, and a significant drop in pressure is detected due to water discharge from sprinklers or hoses, the fire pump is activated to provide the necessary water flow and pressure. This interaction ensures that the system operates efficiently, minimizing wear and tear on the fire pump while keeping the system primed and ready for an emergency.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

The diesel engine fire pump and the electric fire pump are “one standby and one use”. The control boxes of the diesel engine fire pump and the electric fire pump should be kept independent of each other, and the diesel engine fire pump must be used as the backup pump of the electric fire pump, and cannot be used as backup for each other.

The pump start signal in the fire extinguishing system is directly connected to the electric fire pump control box, and it is not suitable to be connected to the diesel engine fire pump control box at the same time. The pump start fault signal of the electric fire pump control box and the pump start signal in the fire extinguishing system are used as the automatic start pump start signal of the diesel engine fire pump control box, and the line is connected to the control box of the diesel engine fire pump. The pump start failure signal of the diesel engine fire pump control box received an alarm from the fire control center. After receiving the alarm, the authorized personnel rushed to the pump room to force the diesel pump to start in an emergency.

Fire pump is a general term for special pumps involved in water supply of various fire systems. Fire pumps must be tested and approved by relevant national units before they can be used in various fire protection systems in buildings, such as: fire hydrant systems, sprinkler fire extinguishing systems, foam fire extinguishing systems, large space high-altitude water cannons, water mist fire extinguishing systems, rain shower fire extinguishing systems systems, water curtains, etc.

DJ fire pump equipment is composed of diesel pump + jockey pump. It is widely used in various fire protection occasions. It is not affected by the mains and can run even when power is cut off. We have a professional sales team and R&D team with strong technical skills and self-produced control systems.

The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability. Elevate your fire safety standards with this powerful solution and gain peace of mind knowing that your property and lives are protected. Choose the Outdoor Fire Pump Set and experience the ultimate fire protection solution.

1. The performance of the fire pump should meet the flow and pressure requirements of the fire water supply system.
2. The power of the driver equipped with the fire pump should meet the requirements of the power required for operation at any point on the performance curve of the selected pump’s flow and lift.
3. When a motor-driven fire pump is used, a dry-installed fire pump with the motor should be selected.
4. The fire pump should be installed dry, and the pump should be placed outside the pool, and the submersible pump cannot be directly placed in the water for water absorption.

The fire pumps produced by our company are suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers and so on.

Instructions for use:
Altitude: ≤1000m;
Ambient temperature: +5℃～+40℃;
Relative humidity: <= 90%.

A fire pump is a critical component of a fire protection system. It is designed to increase the pressure and flow of water to ensure an adequate water supply for firefighting.

EDJ fire pump is the main pump used for various fire hydrants and sprinkler fire pumps; it is suitable for various fire boosting and pressure stabilizing pumps; various villas, community and other fire protection systems; industrial and civil building fire protection systems; suitable for Various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

50gpm 6bar ED fire pump set test video

The box-type fire pump set can be used outdoors, without the need to build an additional pump room, saving costs, small footprint.There is a complete set of standard EDJ fire pump set in the box, which is composed of electric pump, diesel pump and stabilized pump, equipped with control cabinet, which is more convenient to use.

Fire pump professional production manufacturers, complete products, manufacturers direct sales, after-sales worry, pump quality is good, durable products.

There are several types of fire pumps, each designed for specific applications. Two common categories are centrifugal and positive displacement pumps.

Centrifugal pumps are widely used in fire protection systems due to their simplicity and reliability. They work by imparting kinetic energy to the water, which then exits the pump under pressure. These pumps are well-suited for maintaining consistent water pressure for fire suppression.

Positive displacement pumps, on the other hand, use a different mechanism. They trap water in a chamber and then force it into the discharge piping, creating pressure. Positive displacement pumps are typically used in situations where high pressure or low flow is required.

The choice of pump depends on the specific needs of the fire protection system and the facility it serves.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

We can manufacture fire pumps that are NFPA20 compliant and UL listed.
Fire pumps can function with electric motors or diesel engines, and if local building codes require electricity independent of the local grid, pumps using electric motors can use the installation of an emergency generator when connected through a transfer switch listed.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The full name of diesel engine fire pump is engineering diesel engine fire pump set, which can be automatically charged, automatically started, and has the functions of automatic alarm and automatic preheating. The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.

Water supply reliability is paramount for the effective operation of fire pumps. This article explores the significance of a consistent and adequate water source, such as municipal water mains, dedicated fire service water tanks, or reservoirs. It highlights the measures required to ensure water supply reliability and the potential consequences of water source inadequacy.

Advancements in firefighting pump technology focus on improving efficiency, reliability, and safety. Some emerging trends include the development of more compact and lightweight pumps, integration of smart monitoring and control systems, and the use of alternative fuels for powering pumps, such as hydrogen or electric batteries.

Controllers ready to dispatch
This is the controller for jockey pump, electric pump and fire pump set

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.
