Fire Pump Selection

Small diesel fire pump system consist of diesel engine, motor pump and jockey pump. It mainly used in warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers, government embassies, military bases, administrative buildings, port commercial buildings, high-rise buildings, hotels, offices, hospitals, correctional institutions, nursing homes, schools and other occasions of a fire service.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Yes, firefighting pumps are often used in conjunction with other fire suppression methods, such as fire extinguishers, fire sprinkler systems, and fire blankets, to provide comprehensive fire protection in various environments.

Features of diesel multi-stage pump:
1. Multiple impellers are combined in series, the output pressure is large, so the lift is high.
2. The shaft seal adopts packing seal or mechanical seal, the seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick.
3. The shaft is a fully sealed structure, which ensures no contact with the medium, no rust, and long service life.

Diesel fire pumps are suitable for the discharge of heavily polluted industrial wastewater, sewage discharge stations in major residential areas, water distribution systems in urban sewage treatment plants, drainage stations in civil air defense systems, water supply equipment in waterworks, sewage discharge in hospitals and hotels, municipal engineering construction sites, mine auxiliary machines , Rural biogas digesters, farmland irrigation and other industries. Sewage and dirt with conveyor belt particles can also be used for clean water and weakly corrosive media.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1.Flow：1000 GPM
2.Head： 14 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The application of fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

A fire pump starts when the pressure in the fire protection system drops below a set threshold, indicating water flow caused by sprinkler activation or manual use of a fire hose. The pressure drop is detected by pressure-sensing devices, triggering the fire pump to activate and provide adequate water pressure.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System includes two electric pumps and a jockey pump.With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.

Experience unmatched performance and reliability with the EDJ Fire Pump.
Designed to meet the highest standards of fire protection, our pump offers exceptional functionality and dependability.
Whether for residential, commercial, or industrial applications, the EDJ Fire Pump provides the peace of mind you need for effective fire prevention and suppression. Trust in our advanced technology and ensure the safety of your property with the EDJ Fire Pump.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

The electric fire pump set is powered by a motor from a well-known manufacturer. At the same time, it can be equipped with low-voltage, high-voltage and explosion-proof motors with different protection levels according to the user’s use environment and conditions. It is characterized by simple operation and maintenance, low noise, and less equipment requirements.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

EDJ is our flagship product:
The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Fire pump control systems are critical for ensuring the reliable operation of fire pumps. This article delves into the components and functionalities of fire pump control systems, including starting mechanisms, alarms, and interface with fire alarm systems. It emphasizes the role of these systems in enhancing safety and reliability during fire emergencies.

Double power fire pump is mainly composed of electric fire pump, diesel fire pump and regulator pump, in no power supply or power supply (mains) is not normal will start the diesel fire pump, to ensure the fire water supply in these unexpected circumstances.

Using a fire pump efficiently and reasonably is crucial to ensure its optimal performance and effective firefighting capabilities. Here are some key considerations for using a fire pump efficiently:

Proper Sizing: Ensure that the fire pump is properly sized for the specific application.

Regular Maintenance: Perform regular maintenance on the fire pump to keep it in optimal condition.

Optimal Operating Speed: Operate the fire pump at the optimal speed based on the required flow rate and pressure.

Water Management: Manage the water supply efficiently to avoid unnecessary waste.

Training and Familiarization: Provide training to firefighters and operators on the proper operation of the fire pump.

Monitoring and Control: Utilize monitoring and control systems to optimize pump operation. These systems can provide real-time information on flow rates, pressures, and energy consumption. Use this data to adjust operating parameters as needed and identify any anomalies or inefficiencies that may require attention.

Shut Down When Not in Use: When the fire pump is not actively needed, consider shutting it down to conserve energy and reduce wear on the equipment.

Record Keeping: Maintain records of pump operation, maintenance activities, and any performance issues.

Efficient and reasonable use of a fire pump not only helps conserve resources but also ensures its readiness to combat fires effectively. By following proper operating procedures, conducting regular maintenance, and promoting a culture of efficiency among operators, the fire pump can operate optimally and provide reliable firefighting capabilities when needed most.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pump refers to a clean water pump used for fire water supply, and a single water pump with a treatment medium temperature lower than 80 degrees and non-corrosive. The pump unit is a joint operation of multiple fire pumps to ensure the quantity and stability of water supply. The electric fire pump set adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump set are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. At the same time According to the material quotation required by the customer, accurate selection is conducive to on-site use and reduces failure problems.

The EDJ （Diesel Pump:IS, Electric Pump:ISW）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1.The electric pump is the main fire pump, which can be automatically started according to the fire situation;
2. Equipped with jockey pump;
3.The diesel engine pump is a standby fire pump, and the fire is automatically started without power supply;
4. The diesel engine starts when the electric pump fails;

The first step is to design a comprehensive and comprehensive fire protection system for the premises. This system should include automatic fire sprinklers, water-based fire suppression systems, fire alarms, smoke detectors and fire extinguishers. The fire protection system should be designed and installed according to the local building codes and fire regulations.

The next step is to install a pressurized and stabilized water supply system. This system should be designed and installed according to local regulations, as well as the needs of the premises. The system should include a main water supply line, a storage tank, and a pump system to ensure adequate pressure and flow.

Finally, the fire protection system should be regularly inspected and maintained. This includes regular testing of the fire sprinklers, smoke detectors, alarms and fire extinguishers. Any maintenance and repairs should be done by a qualified technician.

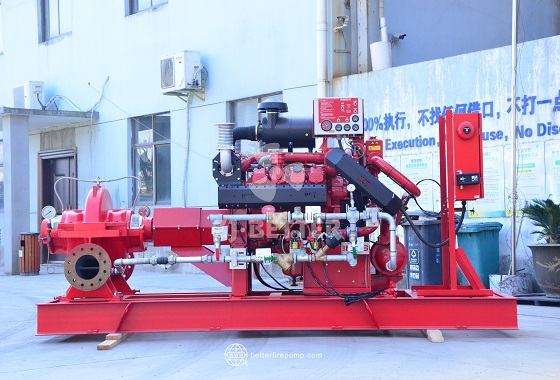

Diesel engine fire pump is a kind of mechatronics equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short time. Diesel engine pump set is driven by diesel, no external power supply is required. Diesel engine pump is suitable for agricultural irrigation, emergency rescue, smelting, hangar, petrochemical oil depot, power plant, liquefied gas station, textile and other fire-fighting water supply occasions, especially in the absence of electricity, When the power grid is not satisfied, it is the safest choice to use a diesel engine to drive the water pump.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

The diesel engine fire pump is usually used as a backup facility. It will only start automatically when the electric water pump fails or is powered off when the fire signal comes. When equipped with an ultra-low pressure pump starting device, the matching electric pump control cabinet should also be equipped with an ultra-low pressure pump starting device, and the lower limit of the pump should have a certain pressure difference. Of course, it is also possible to design a control system that is more suitable for customer needs according to customer requirements.

Proper design and installation of suction and discharge piping are vital for the efficient operation of a fire pump system. The suction piping connects the fire pump to the water supply source, while the discharge piping carries water from the pump to the fire protection devices.

Key considerations for these piping systems include the sizing, material selection, and routing. Proper sizing ensures that water can be drawn from the source at the required rate, and the piping material must be compatible with the water and the environment. Piping routing should minimize friction losses and ensure that the system operates without cavitation or other issues.
