Fire Pump System

Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

EDJ fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance. For conveying clean water or other liquids similar to water in physical and chemical properties.

A fire pump is required when the available pressure from the water system is insufficient to supply adequate pressure to all of the sprinkler heads in the structure at the required flow. The required flow is based on heads activating in a given area, which is determined by the hazard to be protected. Fire pumps are more commonly needed in taller buildings, but can also occur in shorter buildings in hilly locations.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

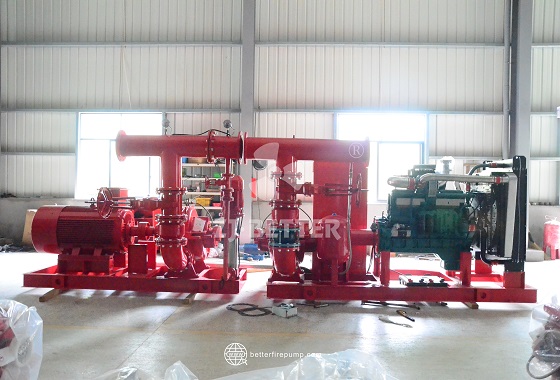

EDJ fire pump set is composed of electric pump + diesel engine pump + jockey pump. The fire pump set has the characteristics of high efficiency and energy saving, reliable quality, strong overload capacity, compact structure, convenient maintenance and high degree of automation. Suitable for any emergency firefighting occasion.

DJ series fire pump set consists of Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.

The advantage of its product is that when a fire occurs, the power supply fails, and the electric fire pump set cannot be put into use normally, the diesel engine fire pump set can be put into operation automatically to ensure the normal fire fighting. Compared with the electric fire pump set, it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time. The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

EDJ fire pump set is composed of electric pump, diesel pump and stabilized pressure pump. In daily use, as an auxiliary pump, the stabilized pressure pump keeps the existence of liquid (water) in the fire pipeline at all times, and the electric pump works as the main power pump in normal work. When the circuit system is burnt out due to a serious fire, the diesel pump will start instead of the electric pump within ten seconds, which will not be affected by the circuit and complete the fire fighting work. In recent years, EDJ fire pump group has gradually become the first choice of fire protection systems in various office buildings and residential buildings, and its safety

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

1. Verify that the fire pump is correctly sized for the building’s fire protection system.

2. Ensure that the fire pump is installed in a location that is accessible for maintenance and operation.

3. Ensure that the fire pump is properly electrically grounded and has a dedicated power source.

4. Verify that the fire pump is connected to the water supply system in accordance with local codes and regulations.

5. Ensure that the fire pump is installed in accordance with the manufacturer’s instructions.

6. Install a controller to automatically start and stop the fire pump as needed.

7. Ensure that the fire pump is tested to meet local codes and regulations.

8. Verify that the fire pump is properly maintained and inspected on a regular basis.

Key Considerations:
High-rise buildings require adequate water pressure to reach upper floors efficiently.
NFPA 14 recommends a minimum residual pressure of 100 psi (6.9 bar) at the highest standpipe outlet.
Fire pump discharge pressure should be calculated based on:
Elevation height (0.433 psi per foot of elevation).
Friction loss in pipes, fittings, and valves.
Minimum operating pressure required at hose connections.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

Yes, fire pumps can be essential in remote or rural areas where a dedicated water supply for firefighting may not be readily available. They can draw water from natural sources or dedicated water tanks.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is indeed high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use. Leading the pipeline tools.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

Application areas: commercial, municipal and residential high-rise buildings, large industrial plants and warehouses, offshore and remote facilities, airports, power stations.
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc.; national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports; fire engineering companies;

In cold climates or areas prone to extreme weather, fire pumps face unique operational challenges that require careful design and maintenance. Freezing temperatures can cause water to freeze in the pipes, potentially damaging the fire pump and other components of the fire suppression system. To mitigate this, fire pumps may be installed in heated enclosures, and antifreeze solutions or dry-pipe systems are often used to prevent freezing. Jockey pumps help maintain system pressure, but in extreme weather, they must be monitored closely to ensure they don’t overcompensate for changes in pressure caused by temperature fluctuations. High winds, flooding, or snow accumulation can also impact the performance of fire pumps, especially in outdoor or exposed installations. Ensuring that fire pumps have robust weather protection, backup power supplies, and regular winterization procedures is critical for maintaining their reliability in harsh conditions. Additionally, these pumps should be designed with durable, weather-resistant materials to withstand long-term exposure to extreme environmental factors while still delivering dependable fire protection.

1.Flow：1000 GPM
2.Head：14bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The function of diesel fire pump is very powerful, we can set the control time during use, for example: preheating in advance, preparatory lubrication or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.

DJ fire pump is composed of diesel engine pump + jockey pump, which can be operated in any fire-fighting occasion,diesel engine fire pumps can work without electricity and are widely used.
Our company has professional technicians and sales staff, who can customize products according to their own needs.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.

Diesel engine fire pump group is a new type of fire fighting equipment (referred to as equipment) developed by the company in strict accordance with the national standard GB6245-2006 “Fire Pump” and the American Fire Protection Association Standard NEPA20 “Installation of Centrifugal Fire Pump”. The flow range is wide, and its application almost meets all kinds of occasions required for fire protection.
The diesel engines equipped with the equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, easy maintenance and simple use, and high degree of automation. It is an advanced and reliable fire fighting equipment.

Fire pump installations must consider factors such as temperature, humidity, and potential flooding. Pumps should be installed in environments that protect them from extreme conditions to ensure reliable operation.

1.Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump, this jockey pump is optional
4.Control panel: Auto Control for all pumps with overload, over current protection.
5.Accessories: valves, pressure vessel, Pressure Gauge, Pressure Sensor, Common Base plant

Fire pumps are necessary when the water supply available does not generate the necessary hydraulic pressure required to meet demand of a fire protection system such as automatic sprinklers and standpipes, or even foam systems.
