Guide to Buying EDJ Fire Pump Set

The size and capacity of a firefighting pump depend on factors such as the size of the area to be protected, the potential fire hazard, and the water supply available. Calculating factors such as flow rate, pressure requirements, and the distance water needs to be delivered can help determine the appropriate pump size and capacity.

As usual, Fire pump system include Diesel engine pump + Electric motor pump+Jockey pump. Sometime, it just include Electric pump+Jockey pump.
Its power: 1.0 to 20kw, flow: 15-300gpm, head: 3-10bar, 50/60hz. The material: Cast iron or SS, bronze impeller.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

What are the components of the fire pump group
1. Electric pumps: various end suction pumps and split case pump.
2. Jockey pump: vertical, small flow, head higher than electric pump or diesel pump.
3. Control panel: Automatically control the water pump, with overload and overcurrent protection functions.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, expansion joint, pressure switch, pressure gauge, base, etc.

25≤Q≤100GPM
30≤H＜120m

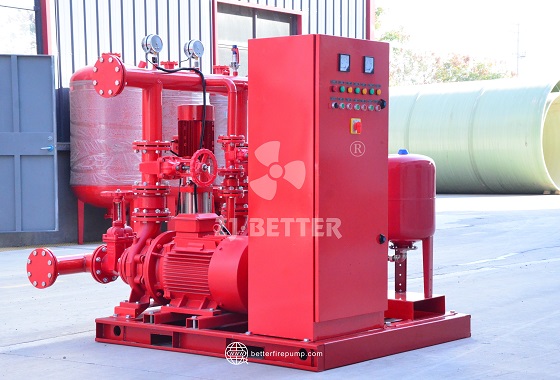

The minimum fire rated pressure of EDJ small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

After several years of R&D testing and certification, Beide Technology Group Co., Ltd. has obtained FM/UL certification for its existing fire pumps after obtaining domestic 3CF certification, and joined the NFPA Fire Engineers Association. Beide Technology Group Co., Ltd. has been committed to providing human beings with more reliable, more energy-saving and safer pump products.

Outline the specific installation requirements for fire pumps, such as space considerations, accessibility, and adherence to NFPA 20. Explain how correct installation ensures reliability and ease of maintenance, and discuss the importance of proper alignment, securing power sources (for electric pumps), and ventilation (for diesel pumps).

Diesel engine fire pumps are used more and more widely. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

The small flow fire pump system includes Electric pump, Jockey pump and accessories.
Its power: 1.0 to 20kw, flow: 15-300gpm, head: 3-10bar, 50/60hz. The material: Cast iron or SS, bronze impeller.
This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers. Our company can manufacture fire pumps that meet NFPA20 standards.

The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.
All products are tested before delivery to ensure no quality problems.

Flow:13-1300 GPM
Pressure:2-20 BAR (30-290 PSI)

The minimum fire rated pressure of small fire fighting package set water supply equipment is 6 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

EEJ Fire pump set
Flow:100gpm
Head:17bar
This pump uses horizontal multistage pump.
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump. The diesel engine fire pump has the advantages of long head and wide application range, and can meet the fire water supply in multiple places such as warehouses, docks, airports, power plants, liquefied gas stations, and petrochemical industries.

1. Make sure the fire pump is regularly inspected and tested according to the manufacturer’s recommendations.

2. Inspect all electrical components and wiring to ensure they are in good working order.

3. Ensure the fire pump is properly lubricated and any worn parts are replaced.

4. Check the suction and discharge valves for proper operation.

5. Inspect the motor and its bearings for signs of wear or damage.

6. Test the fire pump for pressure, flow, and suction.

7. Clean the fire pump, its components, and the surrounding area regularly.

8. Ensure any repairs or maintenance is done by a certified technician.

Yes, various national and local codes and standards, such as NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection), provide guidelines for the installation, operation, and maintenance of fire pumps.

The tank-pump integrated fire water tank includes a water tank, an air pressure water tank, a water pump unit, an electric control cabinet, a liquid level instrument, a pipeline, a bottom plate, and an internal and external ladder. The water tank, the air pressure water tank and the bottom plate are connected as a whole, and the water pump unit Located on one side of the water tank, the electric control cabinet is arranged in the water tank, the pipeline is connected with the water pump unit and the water tank, and the inner and outer ladders are connected on the side of the water tank. The fire-fighting equipment of the utility model is simple in structure, low in cost and easy to install. While meeting the fire-fighting needs, the project cost, construction period and floor space are reduced.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. It is the ideal pump and fire protection system to create no leakage, no pollution civilized workshop and civilized factory.

50gpm8bar ED fire pump set

two sets 50gpm 8BAR EDJ fire pump after finish product

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Proper design and installation of suction and discharge piping are vital for the efficient operation of a fire pump system. The suction piping connects the fire pump to the water supply source, while the discharge piping carries water from the pump to the fire protection devices.

Key considerations for these piping systems include the sizing, material selection, and routing. Proper sizing ensures that water can be drawn from the source at the required rate, and the piping material must be compatible with the water and the environment. Piping routing should minimize friction losses and ensure that the system operates without cavitation or other issues.

Offer a troubleshooting guide for common fire pump problems, such as low water pressure, priming issues, air leaks, and overheating motors. Break down step-by-step solutions, and advise when it’s necessary to call a professional. Include preventative tips to reduce the occurrence of these issues, such as regular inspection and maintenance practices.

Diesel engine fire pumps are large-scale fire pumps. Diesel engine fire pumps are currently the hottest fire pumps on the market, especially in large warehouses, docks, airports, petrochemicals, power plants, and liquefied gas stations. This kind of fire pump with large flow and high power is often needed.

Flow-500gpm; Head-125psi
DJ (diesel pump + jockey pump) Fire Pump Set
DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.
