High Efficiency EDJ Multistage Fire Pump

Measure pump head: Plot flow vs. pressure to establish head-capacity relationships.
Use test results: Compare actual performance to manufacturer data.
Identify pump efficiency: Evaluate power consumption at different operating points.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.

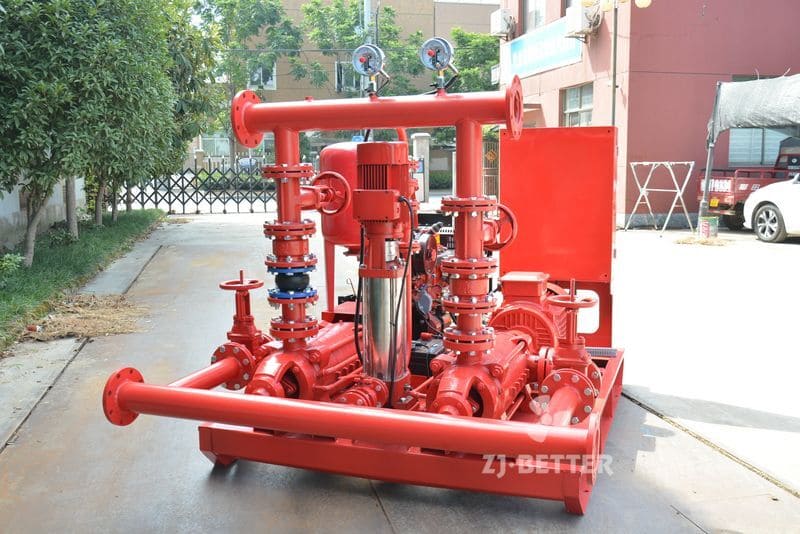

The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

Operation of complete fire pump:
1. Design general packaging that meets the national standard, meet customer needs, standard loading and unloading transportation;
2. All products are tested before leaving the factory to ensure that there are no quality problems;
3. Actively and properly solve the after-sales problems reported by customers;
4. The price is reasonable and does not cater to customers with ultra-low prices.

Fire pumps can be integrated into smart building systems through advanced controllers and sensors that allow for remote monitoring and control. These systems can track the performance of the fire pump, alert maintenance teams to potential issues, and even adjust pump operation in real time to optimize efficiency and response during emergencies.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EJ Pump Set is designed according to the customer’s specifications which is including 1 electric pumps, 1 jockey pump and 1 control panel.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The video displays a fire pump set consisting of jockey, electric, and diesel pump. The pump model is the OTS series.

EEJ fire pump set is an electric-driven fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. Better produces many types of fire pumps, which can be customized according to needs.

The dual-power fire pump is driven by a diesel engine. When the power grid cannot meet the requirements, the diesel engine can be used to drive the water pump to ensure that the unit can reach the running state.

High quality and low price fire pump, factory direct sales, professional production and sales team, actively and properly solve customer feedback after-sales problems.

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

Packaging and delivery

Packaging details: standard export wooden cases or as required delivery detail: within 30 days

Specification

Compact structure, stable performance
Install and maintain conveniently
Mechanical or packing seal

Application

Use in fire system water supply, and also suitable for water supply plant, irrigation, drainage pumping plant, electric plant, air conditioning water supply, industry water supply, fire system, shipping industry, oil refining system, mining and other water supplying situations.

Fire pumps and jockey pumps work together to ensure that a fire protection system is always ready to operate at peak efficiency. The jockey pump is primarily responsible for maintaining the system’s normal pressure, compensating for minor leaks, and preventing the fire pump from running unnecessarily. When a fire occurs, and a significant drop in pressure is detected due to water discharge from sprinklers or hoses, the fire pump is activated to provide the necessary water flow and pressure. This interaction ensures that the system operates efficiently, minimizing wear and tear on the fire pump while keeping the system primed and ready for an emergency.

All accessories of EJ small fire complete water supply equipment are assembled according to the standard (NFPA20). Its configuration depends on the customer’s needs, or the number of pumps and the type of electric pump. EJ small fire pump group consists of electric pump and jockey pump. EJ small fire-fighting complete set of water supply equipment has reasonable layout, firm installation, reliable connection, compact structure, neatness and convenient maintenance.

Fire pumps are often integrated with fire alarm systems to provide automatic alerts in case of pump activation or failure. This integration ensures that building occupants and emergency responders are immediately informed during a fire event.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers.

Diesel engine fire pump is a special diesel engine equipment, which has the characteristics of simple structure, reliable operation and long service life, and is widely used in the field of fire protection. When using a diesel engine fire pump, it is necessary to pay attention to maintenance and maintenance, and replace fuel, oil and filters in time to ensure the normal operation of the fire pump.

Diesel engine fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. This diesel engine pump set can transport clean water or other liquids whose physical and chemical properties are similar to water. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump’s flow parts, sealing form and adding a cooling system.

As a fixed fire-fighting equipment, the diesel engine fire-fighting pump set has been widely used in fire-fighting diversion, especially for fire-fighting water supply in unexpected situations such as no power supply or abnormal power supply (mains power).

Yes, firefighting pumps are often used in conjunction with water tanks, lakes, rivers, or other water sources to ensure a constant and adequate water supply during firefighting operations. Portable water tanks or drafting equipment can be employed to access water from non-traditional sources when necessary.

1. Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
2. Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

1. High power capacity: Fire pump control cabinets are designed to provide a higher power capacity, allowing the system to handle larger loads.

2. Easy installation: Fire pump control cabinets are designed to be easy to install and configure, allowing the pump to be installed quickly and efficiently.

3. Protection: Fire pump control cabinets are designed to provide protection to the electrical components from moisture and other environmental factors.

4. Monitoring: Fire pump control cabinets are equipped with monitoring systems to monitor the performance of the system and alert the user if any issues arise.

5. Alarm system: Fire pump control cabinets are equipped with an alarm system that can alert the user if the system fails or if the pressure drops to a dangerous level.

6. Cost-effective: Fire pump control cabinets are designed to be cost-effective and provide the necessary protection and performance for a facility.

Potential risks associated with diesel fire pumps include fuel spills, engine emissions, mechanical failures, and electrical hazards. These risks can be mitigated through proper risk assessment and mitigation strategies, such as implementing spill containment measures, ensuring proper ventilation in pump rooms, conducting regular equipment inspections and maintenance, and implementing safety protocols for fuel handling, storage, and disposal. Additionally, it’s essential to comply with relevant regulatory requirements and industry standards to minimize risks and ensure the safe operation of diesel fire pump systems.

The fire pump set is composed of electric pump + diesel pump + jockey pump. It is a set of 750gpm@90m pump set, which is manufactured in strict accordance with the NFPA20 standard.
The fire pump adopts XA pump, the product combines the advantages of similar products at home and abroad, and adopts the excellent hydraulic model design. Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operating cost of the pump in various applications. The fire pump group of this group is not affected by the mains. When the electric pump fails, the diesel pump will automatically start to operate.

Flow-500gpm
Head-8bar
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The pump and the motor are coaxial, which simplifies the connection of the pipeline. The pump inlet and outlet are on the same horizontal axis, and the diameter and specifications are the same. The pump is provided with a mounting base, which is easy to install and increases the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The fire booster pump is designed to increase the flow and pressure rate of the water supply coming into the fire system. This is accomplished by drawing water from a municipality main, tank, or hydrant, and then boosting the pressure rate of the water supply with an electric motor and pump. The adjusting of the pressure rate is accomplished by changing the speed of the electric motor that is powering the pump, which in turn changes the amount of water being pushed through the system.

The motor of this fire pump set is directly connected to the fire pump, which simplifies the intermediate transmission structure and enhances the stability of operation. The equipment occupies a small area, saves costs, and is a cost-effective fire pump set.
