High-Performance Fluid Transfer with XA Pumps

Features:
1. The pump is a vertical structure, the inlet and outlet diameters are the same, and are located on the same center line. It can be installed in the pipeline like a valve. The appearance is compact and beautiful, the floor space is small, and the construction investment is low. Can be used outdoors.
2. The impeller is directly installed on the elongated shaft of the motor, the axial dimension is short, the structure is compact, and the pump and motor bearings are reasonably arranged, which can effectively balance the radial and axial loads generated by the operation of the pump, thereby ensuring the smooth operation of the pump. Low vibration and low noise.
3. The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy sealing ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively prolong the service life of mechanical seal.
4. Easy installation and maintenance, no need to dismantle the pipeline system, just remove the pump joint seat nut to extract all the rotor parts.
5. The series and parallel operation modes of pumps can be adopted according to the requirements of use, that is, the needs of flow and head.
6. The vertical and horizontal installation of the pump can be adopted according to the requirements of the pipeline arrangement

Fire pump system alarms notify operators of potential issues or malfunctions. Alarms are tested during routine inspections to ensure their functionality. Testing may include simulating alarm conditions to verify proper activation.

Key installation requirements include:

A stable and reliable power source, often with a backup generator.
Proper sizing based on the building’s fire protection needs.
Adequate ventilation and cooling in the pump room to prevent overheating.
Installation of controllers and alarms to monitor pump status.
Compliance with local fire codes and standards such as NFPA 20.

The electric motor fire pump is a relatively important water supply equipment in the fire protection system. The electric motor fire pump has a wide coverage of lift, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensuring emergency use.

The IS series single-stage centrifugal pump is a reliable and versatile solution for fluid transfer applications. Known for its simplicity and ease of use, this horizontal centrifugal pump is designed to efficiently transport clear water and fluids with similar properties. With a compact structure and convenient maintenance, the IS pump offers stable and low-noise operation, making it suitable for a wide range of industrial, agricultural, and municipal tasks. Whether it’s for industrial cooling systems, municipal water supply, agricultural irrigation, or firefighting applications, the IS single-stage centrifugal pump provides efficient and dependable liquid handling. Its durable construction and corrosion-resistant materials ensure long-lasting performance.

If an electric fire pump fails during an emergency, the following steps should be taken:

Activate the backup pump: If available, switch to a secondary pump or manual firefighting methods.
Investigate the cause of failure: After the emergency, perform a thorough inspection to determine the cause of the failure.
Repair or replace the pump: Address the identified issues and restore the pump to full operational status.
Review maintenance practices: Ensure regular testing and maintenance procedures are followed to prevent future failures.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Flow：250-10000 GPM
Head： 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

The Portable Irrigation Pump is a portable and user-friendly tool used primarily by farmers and gardening enthusiasts for small-scale irrigation in fields, vegetable gardens, and flower beds. With its manual operation, this pump requires no external power source, making it suitable for remote areas lacking electricity or other energy supplies.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

This is a set of vertical turbine pump with a flow of 500gpm and a pressure of 7.5bar customized by a UAE customer. The vertical turbine pump is mainly composed of three parts: the upper part is the motor, the middle part is the water delivery pipe and the drive shaft. The lower end is the deep well. The working part of the pump, submerged below the surface of the well. Due to the depth of the well, the lift is required to be larger.

Site conditions
YE3 series motors air suitable for almost all applications and operate satisfactorily at temperatures from -20 to +40 and
altitudes up to 1000 meters above sea level.
Temperature and insulation
The Motors’ insulation system are designed by Class F(155 ), operated with Class B(80K). Which incerase the motor useful
life and reliability.
Cooling and ventilation
The standard cooling method is totally Enclosed Fan Cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard
motors are equipped with radialflow plastic fans.
Protection class
The standard degrees of protection is IP55.The IP55 enclosure means complete hoseproof and dustproof protection. A
higher degrees of protection is available.
Motor protection
Motors can be installed with PTC, PT100, such as winding and bearing temperature measurement as well as other kinds of
protection on request

ISW series horizontal centrifugal pump is a new generation of energy saving,environment friendly verticalcentrifugal pump researched and developed by our company,whichabsorbs advanced technology of similar products abroad and adoptsdomestic general performance parameters of centrifugal pumps.

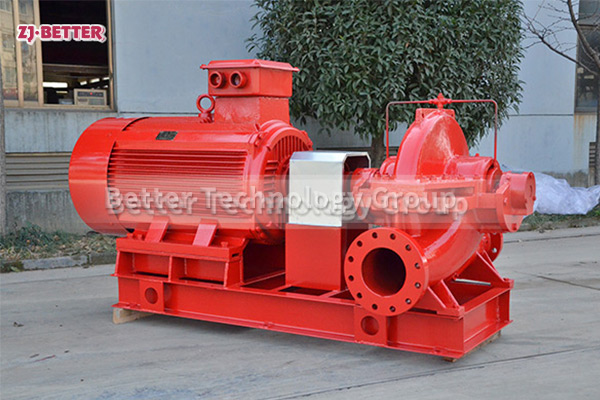

Horizontal fire pump has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

XBD fire pump compact structure, small volume, beautiful appearance, its structure determines the installation of small area, convenient installation and maintenance, no need to disassemble the pipeline system, pump inlet and outlet for the same caliber, simplifying the connection of the pipeline.

Flow：50-7500 GPM
Head：3-20 Bar
The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

The video shows the testing for a vertical multistage fire pump. Multistage pumps can be used to meet high pressure.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Regular testing ensures that fire pumps are functional and ready in an emergency. Insurance providers mandate this to mitigate risk and ensure compliance with safety regulations, potentially affecting coverage and premiums.

Sewage pump is a pump and motor connected, and at the same time into the liquid work pump products, compared with the general horizontal pump or vertical sewage pump, sewage pump compact structure, small footprint. Easy installation and maintenance, large sewage pumps are generally equipped with automatic coupling device can be automatically installed, installation and maintenance is quite convenient. Long continuous operation time. Sewage pump because pump and motor coaxial, shaft is short, rotating parts light weight, so the bearing load (radial) is relatively small, life is much longer than the general pump. There is no cavitation damage and irrigation water problems. In particular, the latter point brings great convenience to the operator. Low vibration noise, low motor temperature rise, no pollution to the environment.

Electric fire pumps offer several advantages, including:

Consistent and reliable operation as long as there is an electrical power supply.
Lower maintenance compared to diesel-powered fire pumps.
Quieter operation.
Environmentally friendly with no exhaust emissions.

UL Flow：100-2500 GPM
UL Head：90-250 PSI

Flow：250-10000 GPM
Head：30-200 m / 3-20 Bar / 40-290 psi

Vertical turbine pumps, electric motor fire pumps, diesel engine fire pumps and submersible deep well pumps can all use mechanical seals, and mechanical seals with different materials and performances can be selected according to different environments. In pumps with different frequency of use, mechanical seals should be inspected and maintained according to actual conditions to ensure their long-term stability.

Vertical turbine electric pump are better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Packaging & Delivery
Packaging details: standard export wood case packing or as required
Delivery detail: within 30 days
Specifications
1.Fire Water
2.Fire sprinkler system water supply
3. Industrial process water recycling
4. Long operation life
Application
1. Fire sprinkler system water supply, high-rise building partitions, fire water supply.
High-rise buildings and residential group domestic water supply system.
2. The district water supply and water transportation, industrial process water recycling, cleaning systems, high pressure washing systems.

The lifespan of a fire pump depends on factors like maintenance, usage, and environmental conditions. With proper maintenance, fire pumps can last for several decades.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

The Vertical Single stage fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more.
