High Pressure Fire pump set for 270m

Yes, the fire pump configuration control cabinet is an important part of any fire system. The cabinet holds all of the system’s controls, relays, and other components, which allow the system to function properly. Without the control cabinet, the fire system would not be able to function correctly.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.

In large industrial complexes, fire pumps are vital in supporting firefighting efforts by providing a reliable water supply to extensive fire protection systems, including sprinklers, hydrants, and hose reels. These facilities often have complex layouts and multiple hazards, requiring robust fire pumps capable of delivering high water flow rates and pressure over long distances. Fire pumps in these settings are typically part of a comprehensive fire protection strategy that includes redundant pumps, emergency power supplies, and advanced control systems to ensure continuous operation even if one component fails. By delivering a consistent and adequate water supply, fire pumps help ensure that firefighting efforts are effective, minimizing damage and protecting both personnel and assets.

50gpm8bar ED fire pump set

two sets 50gpm 8BAR EDJ fire pump after finish product

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.

Non-UL Flow：30-9000 GPM
Non-UL Head： 3-20 Bar (40-300 psi)
UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)

Diesel pump is a pump powered by diesel engine, which completely reduces the labor intensity of workers, and it is convenient to use, move, install, rarely maintain, and stable performance

The dual-power fire pump is mainly used for various fire hydrants and spray fire main pumps. It is also suitable for various fire booster and pressure stabilizing pumps. It is also suitable for various villas, residential areas and other fire systems, industrial It is also suitable for various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection level requirements.

The fire pump is designed to divert water when a fire is detected by the sprinkler system or other fire-detection device. The pump will then draw water from the water supply source and deliver it to the sprinkler system, fire hoses, or other fire suppression devices.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

There are many types of fire-fighting equipment, fire hydrants and fire extinguishers are a common category, and there is also a category of fire pumps, which can be described as the heart of the fire-fighting system and play an important role in pressurising the water supply for the fire-fighting system. Among the many fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

Multi-stage pumps have high efficiency, corrosion resistance, reliable operation and other properties, strong bearing capacity of the pump body, strong resistance to overload and more sensitive start. Ltd. introduces you to the relevant features of multi-stage pumps. First of all, Shanghai Xizhiquan multi-stage pumps have a compact structure, with small spacing between parts and small volume. The equipment runs smoothly, has a long service life and produces less vibration during operation, so the practical life of the equipment is correspondingly long.

With its unique structure, the direction of the water inlet and outlet can be adjusted according to different needs, so it is suitable for various place environments. The direction of the inlet and outlet is horizontal, which reduces the number of bends in the pipeline connection, thus simplifying the pipeline connection and greatly enhancing the efficiency of the fire fighting system.

The efficient operation of the multistage pump is used in many larger, more demanding fire-fighting locations. Its role is mainly to play a role in the fire fighting pipeline system to pressurise and send water, multi-stage pumps are not only suitable for all kinds of fire fighting systems, but also for industrial drainage, high-rise building water pressure supply, long-distance water delivery, water circulation pressure and other occasions.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, it can also be equipped with other diesel engines as power machines according to the needs of users.

Electric fire pumps can be located inside the building. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.

Reliability is ensured through regular maintenance, including fuel quality checks, battery inspections, and routine testing. Diesel engines should also have a dedicated fuel supply and meet the standards set by NFPA 20.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Diesel and electric fire pumps are the two primary types of fire pumps used in fire protection systems, each with its own advantages and considerations. Diesel fire pumps are powered by internal combustion engines and are typically used in locations where a reliable electric power supply is not available or where redundancy is needed to ensure continuous operation during a power outage. Diesel pumps are known for their reliability and ability to operate independently of the electric grid, but they require regular maintenance of the engine and fuel system, including fuel storage and periodic testing.

The diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc., fast automatic start and self-priming, and self-priming after dry running. Heavy-duty pump bearings – longer life; other parts are made of high-quality copper and stainless steel or customized by customers. The high-efficiency open impeller design of the diesel engine fire pump can handle large solids and abrasive materials while maintaining a high flow rate, and the large-capacity air treatment can be used for more “well point dewatering projects”.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The diesel engine fire pump can deliver clean water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of living and production water supply conditions are taken into account. The products can be used not only in independent fire-fighting water supply systems, but also in fire-fighting and living shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

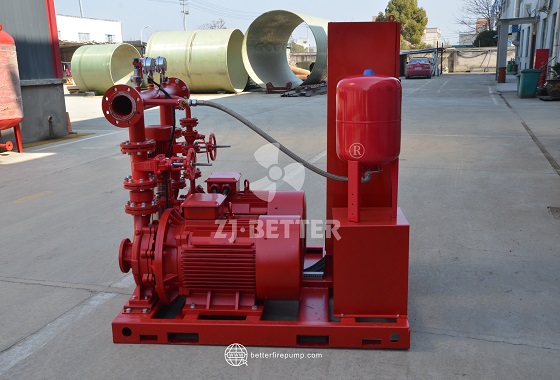

Fire pump system is made of Electric+Diesel+Jockey pump
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, storage and other places, and the performance requirements and quality requirements are different. The commonly used types of fire pumps are vertical electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multiple Level fire pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Outdoor controller for fire pump set use for outdoor fire pump set

Using Instruction
Altitude: ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

Philippines clients DJ fire pump set waiting for package and dispacth
250gpm 8bar DJ fire pump, with ISW model engine pump and one jockey pump on one skid

For research laboratories, quiet operation, reliability, and precise pressure control are essential. Electric fire pumps are often suitable, given their steady power flow and lower emissions, which may be critical for sensitive environments. Jockey pumps can also maintain pressure without large pumps constantly running.
