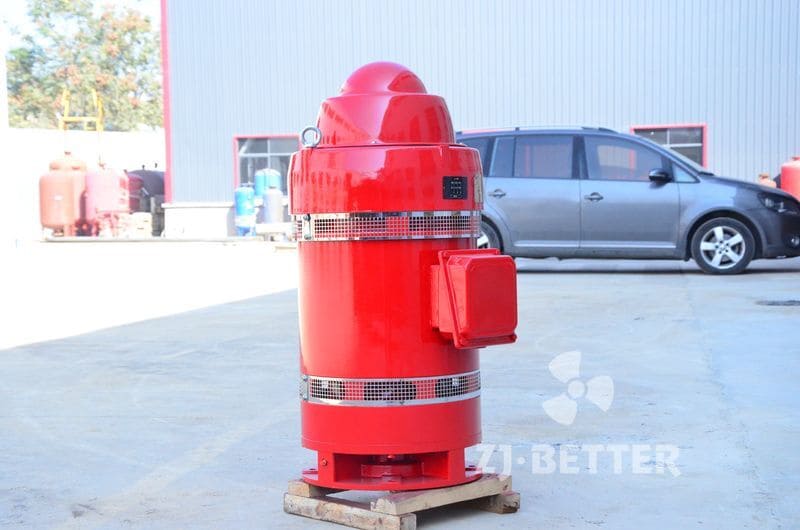

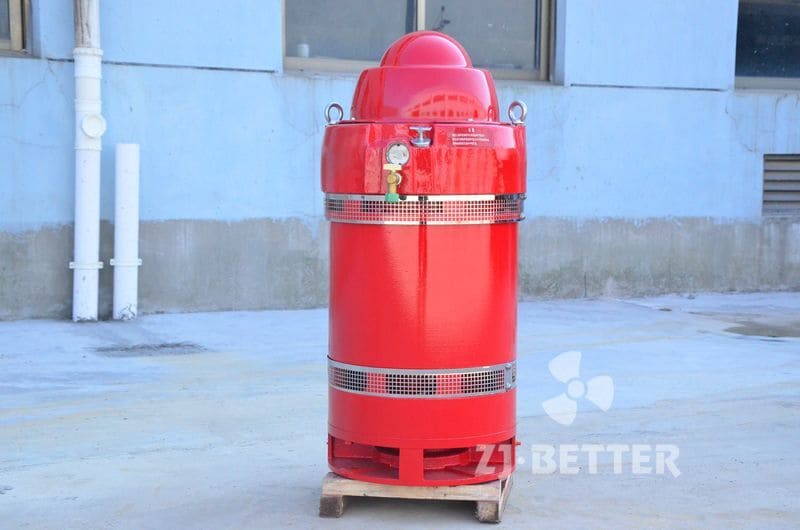

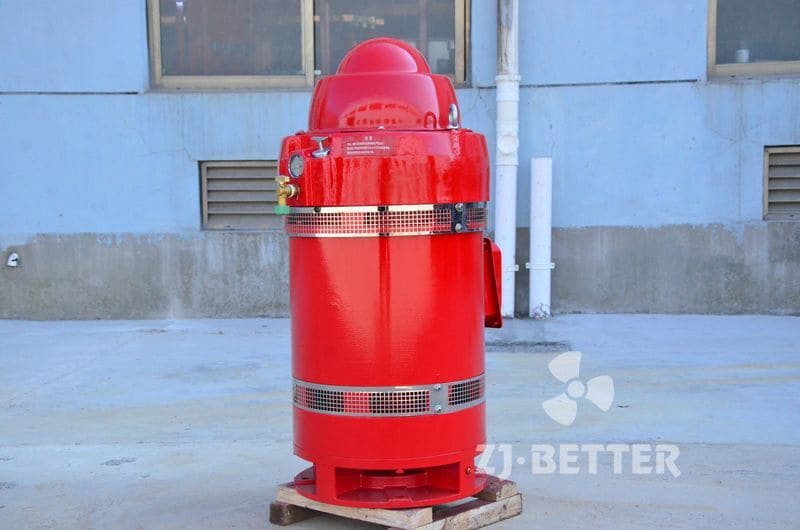

Hollow shaft Motor for vertical turbine pump

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L

The integrated prefabricated sewage pumping station of Beide Technology Group Co., Ltd. serves the glass production base in Xingan County Development Zone, Ji’an, Jiangxi Province. On-site commissioning training is delivered to relevant departments. Thank you and leaders for the support.

The multistage fire pump consists of two parts: the motor and the pump, and the motor and the pump are coaxial. The structure of the pump consists of pump body, impeller, pump cover, mechanical seal and so on. The inlet and outlet of the pump are on the same horizontal axis and have the same caliber specification, so the loading and unloading is very convenient, and the floor space is small. The pump is fitted with a base for easy installation and increased pump stability. It is used to transport clear water without solid particles, liquids with physical and chemical properties similar to water. It is mainly used for pressurized water delivery in fire-fighting system pipelines, and is also suitable for industrial and urban water supply and drainage.

The remote monitoring system for the water supply pump station is suitable for the remote monitoring and management of the pressurized pump station in the urban water supply system.
The pump station manager can remotely monitor the water level of the pump station pool or the entry pressure, the working status of the booster pump group, the outbound flow, and the exit pressure from the monitoring center; they can remotely control and automatically control the start and stop of the booster pump group; When optical fiber communication is used, the panorama and important stations in the station can be monitored by image, so that the pump station can be unattended.

The sewage pump station is to enhance the sewage, rainwater, drinking water, wastewater and other equipment to enhance the drainage, the factory focus on design, manufacture, assembly and transported to the site to install a new generation of environmentally friendly turnkey pumping station.

This kind of controller was fit for high-voltage motor，which is the voltage of motor is 6000V or 10KV.

including high-voltage switch cabinet, High-pressure solid-state soft starter device,High-voltage reactive power centralized compensation device,direct current cabinet, onsite cabinet, intellengint inspection cabinet, High-voltage patrol inspection contact cabinet, Emergency starting cabinet for high-voltage machinery

The electrical control cabinet of fire pump set mainly has the functions of starting and stopping the pump, switching between main and standby pumps, manual and automatic switching, dual power switching, patrol inspection, protection, and feedback for mechanical emergency start.

The QXB submersible centrifugal aerator adopts the direct drive of the motor and the impeller, and uses the centrifugal force generated by the rotation of the impeller to displace the surrounding water to form a low-pressure area to inhale the water flow. At the same time, a vacuum is created at the inlet of the impeller to inhale air. The water is fully mixed to form a uniform gas-water mixture, which is quickly discharged under the action of centrifugal force.
Due to the extremely strong water jet, the effective water circulation is caused, and the air is sheared into a large number of tiny air bubbles. The surface area is greatly improved, and because the bubbles rise slowly, a large amount of oxygen in the air is dissolved in the water, which makes the power efficiency of the machine better than other types of aerators.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L

YCB series multistage centrifugal oil pump is used mainly for petroleum refining, petrochemical and chemical industries to transport the petroleum-containing no solid grains, liquefied petroleum gas, other petroleum products, high-temperature high pressure, combustible and explosive liquids.This horizontal oil pump is an electric pump with explosion-proof device, which can be customized.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency. Widely applied in industrial, construction, agricultural, and municipal sectors, this energy-efficient solution optimizes water supply systems to meet diverse user demands effectively.

While the initial investment in firefighting pumps and fire protection infrastructure may represent a significant capital expenditure, the long-term benefits of enhanced fire safety, reduced property damage, and potential savings in insurance premiums outweigh the costs. Cost-benefit analyses and risk assessments help stakeholders make informed decisions about allocating resources to improve fire protection capabilities and mitigate financial risks associated with fire emergencies.

Yes, vertical turbine pumps can be constructed from materials such as stainless steel or high-strength alloys to withstand corrosive fluids or abrasive particles. Additionally, various coating and lining options are available to further protect pump components from corrosion or wear.

IRG series vertical hot water pump are designed according to the unique structure of pipe centrifugal pump.These series pump adopt the advanced fluid model optimized by pump experts. So the pumps have high efficiency and reliability. Some units and components have exported to internal markets and gained good comments from both domestic and oversea clients.

Oil-water separation device is a device that separates oil and water. The oil-water separation device is one of the important environmental protection facilities in the sewage treatment plant. Its function is to improve the biodegradability of sewage and reduce the energy consumption and treatment cost of sewage treatment.

The pump integrates self-priming and non-clogging sewage discharge, adopts the axial return and external mixing type, and through the unique design of the pump body and the impeller flow channel, it does not need to install the bottom valve and irrigation water like the general self-priming clean water pump. It can also suck and discharge liquids containing large particles of solids and long fibers. It can be widely used in municipal sewage projects, river and pond aquaculture, light industry, papermaking, textiles, food, chemicals, electricity, fibers, pulp and mixed suspension. The ideal impurity pump.

YW TYPE NON-BLOCKING LIQUID LOWER SEWAGE PUMP is a new generation of pump products developed successfully on the basis of the introduction of foreign advanced technology, combined with the use characteristics of domestic water pump, which has the characteristics of remarkable energy-saving effect, anti-winding, no blockage, automatic installation and automatic control. It has a unique effect in discharging solid particles and long fiber waste.

Widely used in water supply and drainage of industry and city, pressurized water supply of high-rise buildings, irrigation of gardens, fire-fighting pressurization and relevant equipments. This series have many advantages, such as wide range of performance parameters, convenient installation, little vibration, low noise, high efficiency, long service life and so on, very popular with users.

A Pressure Type Foam Proportioning Mixing Device is a sophisticated system used in fire suppression to mix foam concentrate with water, creating an effective foam solution for combating fires. This device ensures a precise and consistent mixing ratio, enhancing the fire-extinguishing capabilities of the foam.

This large, high-efficiency firefighting foam canister is designed for industrial and professional settings, offering exceptional fire extinguishing performance and reliable safety assurance. Whether in factories, warehouses, or other high-risk environments, it is the best choice for fire rescue operations.

XBD-S fire pump set is mainly used for pressurized water supply in fire protection system, and also suitable for water supply, irrigation, drainage pumping station, power station, air-conditioning circulating water, industrial water supply system, fire protection system, shipping industry, oil refining system, mining, etc. When transporting liquids.

Submersible mixer, also known as submersible propeller, is suitable for promoting and stirring sewage containing suspended solids, dilute mud and industrial process liquid in the technological process of sewage treatment plant, creating water flow, strengthening the stirring function and preventing sludge precipitation. It is an important equipment in the technological process of municipal and industrial sewage treatment.

NL type sewage mud pump is used for the suction, delivery and sprinkling of river mud, feces and river water, and is suitable for municipal, infrastructure, chemical, printing and dyeing industries.
It can be used for municipal, infrastructure, chemical, printing and dyeing, medicine, shipbuilding, casting, food and other industries to suck thick liquid, muddy liquid, paste, quicksand and flowing sludge in urban rivers, and it can also be used for queuing up the fluid containing mud and small gravel in coal mines If combined with high pressure and hydraulic pine, the hydraulic machinery Earthwork unit can also be used for excavation and transportation of small water conservancy projects such as land leveling, dredging and digging of rivers and ponds, as well as air defense works and underground works in cities. Fish culture is used to clean ponds with water and increase oxygen in fish ponds.

Submersible sewage pump is suitable for conveying sewage and dirt with particles in chemical industry, petroleum industry, pharmaceutical industry, mining industry, paper industry, cement plant, steel plant, power plant, coal processing industry, urban sewage treatment plant drainage system, municipal engineering, construction site and other industries. It can also be used for pumping clean water and corrosive media.

The fire control cabinet is a control cabinet that controls the operation of the fire pump. The fire control cabinet is a collection of many electrical components. These electronic components have different functions. They cooperate with each other to effectively control the operation of the fire pump. In addition to the function of controlling the operation of the fire pump, the fire control cabinet also has functions such as overload protection, overvoltage protection, overcurrent protection, phase loss protection, short circuit protection, and overheat protection that a single fire pump cannot possess.

It is a fire pump that is directly connected with a light engine and a water pump, and can be lifted and moved by manpower. It is used to fight general material fires and small oil fires. Because the hand pump is light and flexible, and is not restricted by traffic, electricity, and regional obstacles, it has been widely used in industrial and mining enterprises, warehouses, ports, docks and rural areas. The place where the fire started.

Fuel tank specifications：200L/ 400L/ 600L/ 800L/ 1000L/
1200L/ 1500L/ 1800L/ 2100L/ 2500L/ 3100L/ 3600L/ 4100L/ 4500L
The diesel fire pump system serves as a backup power solution, utilizing a diesel engine to provide power and ensure the fire pump’s reliable operation during electrical outages. The associated fuel tank is a crucial component for storing diesel fuel and providing a continuous supply to the diesel engine, ensuring a sustained water flow during fire incidents. The system not only boasts reliability but also requires minimal maintenance, backed by comprehensive after-sales service. Whether for large commercial buildings, industrial facilities, airports, or hospitals, this system offers users a dependable firefighting solution to safeguard security.

The pressure tank, also known as the pressure tank, is one of the important components in the secondary water supply equipment. Its core function is to stabilize the water pressure, so it is called the pressure tank.
The reason why the surge tank can stabilize the water pressure is mainly achieved by compressing the gas in the capsule, because water is an incompressible fluid, and water with the same pressure can compress the gas to store water and have a certain pressure.

Hygienic and clean to use, high efficiency, low noise, mild corrosion resistance and compact structure, beautiful appearance, small size, light weight, convenient use and maintenance, reliable sealing performance

The electrical control cabinet of the fire pump set has the switching control mode of single pump, multiple pumps, and multiple main and standby pumps. According to the power of the pump and user requirements, the starting mode of the pump motor can be configured as direct start, star-delta start and other forms.
