Horizontal EDJ pump set

This fire pump set uses Cummins diesel engine and ISO pump. The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1. The biggest feature of the complete fire pump set is its strong reliability. Even if it is restarted for a long time, it will not bite to death, and it can be restarted normally.
2. The use efficiency is very high. During the use process, there will not be too much noise. The installation form of the fire pump set is very flexible, and it is convenient for maintenance, which can effectively save installation and maintenance costs.??

The diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc., fast automatic start and self-priming, and self-priming after dry running. Heavy-duty pump bearings – longer life; other parts are made of high-quality copper and stainless steel or customized by customers. The high-efficiency open impeller design of the diesel engine fire pump can handle large solids and abrasive materials while maintaining a high flow rate, and the large-capacity air treatment can be used for more “well point dewatering projects”.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools,commercial buildings, supermarkets,subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Product Introduction of EDJ Fire Pump System
1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

ED small Fire Fighting package set water supply equipment (abbreviated as ED small Fire Fighting package set water supply equipment) refers to the flow less than 100 GPM and A highly integrated mechanical and electrical system consisting of electric centrifugal pump, multi-stage centrifugal pump(pressurized pump group), Diesel Engine Centrifugal pump, pressure limiting protection device(safety valve), valve fittings, control system, pressure sensor system, water-free protection device, backflow preventer, soft joint. bypass pipelines, common base, filters, etc. It is a fire water supply equipment that continuously supplies water to the fire pipe network by preset pressure mode. All accessories of ED small fire fighting package set water supply equipment are assembled according to the standard(NFPA20). Its configuration depends on the needs of customers, or the number of pumps and the type of electric and diesel pump. ED small fire fighting package set water supply equipment is usually equipped with two pumps, one main pump(electric centrifugal pump) and one standby pump(diesel centrifugal pump). The selection of motor and diesel engine depends on the reliability level of the system.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

1. Ensure that you understand the manual or instructions that accompany the fire pump and water pump.
2. Follow the manufacturer’s instructions and recommendations for installation and operation.
3. Make sure that the power supply used is in good condition and always isolated from the power when setting up the pump.
4. Make sure that the pump and its parts are maintained in perfect condition all times.
5. Test the readiness of the pump for use and ensure that it is in top working condition before putting it to use.
6. Determine the exact amount of water needed and make sure that the pump is operated within the recommended pressure limits and flow rates.
7. Do not operate the pump for longer periods of time than prescribed in the manual.
8. Use the proper safety equipment and clothing when operating the pump.
9. Ensure that the water is discharged in a controlled way.

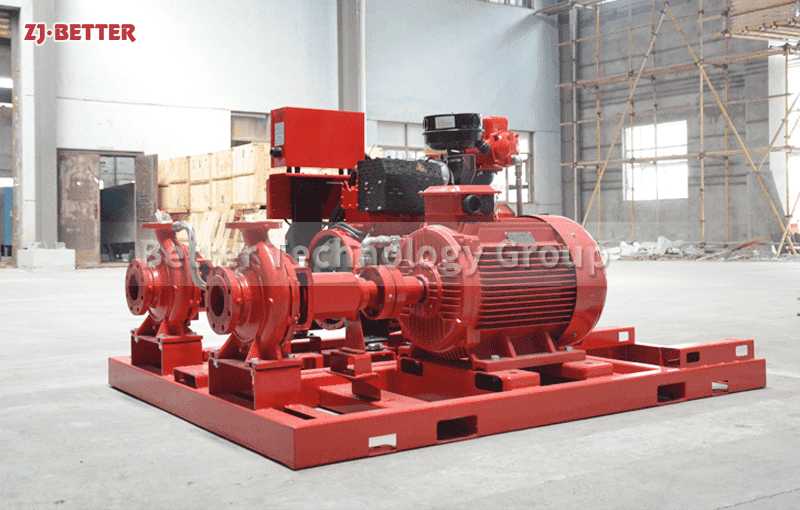

As a fixed fire-fighting equipment, the diesel engine fire-fighting pump set has been widely used in fire-fighting diversion, especially for fire-fighting water supply in unexpected situations such as no power supply or abnormal power supply (mains power). According to the needs of users, it can also be equipped with other diesel engines as power engines.

There are many types of fire-fighting equipment, fire hydrants and fire extinguishers are a common category, and there is also a category of fire pumps, which can be described as the heart of the fire-fighting system and play an important role in pressurising the water supply for the fire-fighting system. Among the many fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

Multi-stage pumps have high efficiency, corrosion resistance, reliable operation and other properties, strong bearing capacity of the pump body, strong resistance to overload and more sensitive start. Ltd. introduces you to the relevant features of multi-stage pumps. First of all, Shanghai Xizhiquan multi-stage pumps have a compact structure, with small spacing between parts and small volume. The equipment runs smoothly, has a long service life and produces less vibration during operation, so the practical life of the equipment is correspondingly long.

With its unique structure, the direction of the water inlet and outlet can be adjusted according to different needs, so it is suitable for various place environments. The direction of the inlet and outlet is horizontal, which reduces the number of bends in the pipeline connection, thus simplifying the pipeline connection and greatly enhancing the efficiency of the fire fighting system.

The efficient operation of the multistage pump is used in many larger, more demanding fire-fighting locations. Its role is mainly to play a role in the fire fighting pipeline system to pressurise and send water, multi-stage pumps are not only suitable for all kinds of fire fighting systems, but also for industrial drainage, high-rise building water pressure supply, long-distance water delivery, water circulation pressure and other occasions.

Operation of Electric Fire Pump Before start: 1. Turning the clutch by hand, there should be no jammed phenomenon at the turner position. 2. Opening the inlet valve and the vent valve, letting the water fill into the pump’s chamber, then closing the vent valve. 3. Clicking the switch of motor, and confirming whether the turning is right ornot. Running: 1. Fully opening the inlet valves, and closing the valves of the outlet pipe. 2. Connecting the power, Opening the valves of the outlet pipe and adjusting the needed working point when the turning velocity is normal. 3. Watching whether there exist abnormalities or not, if yes, should the pump be stopped and inspected before re-running. Stop: 1. After turning off the outlet valves one by one, shutting off the power. 2. Shutting off the inlet valves. 3. If the ambient temperature is below 0℃, some warm-keeping measures should be adopted.

The outdoor fire pump can be used outdoors. There is a complete set of fire pump equipment. It does not need to build a pump station, saves costs, saves space, and is suitable for any fire protection occasions.

The pressure stabilizer pump is a kind of fire pump. It is used to stabilize the pressure of the automatic sprinkler system and the fire hydrant water supply system, so that the water pressure of the system is always in the required pressure state. Water volume and water pressure.

Fire pump system is made of two Electric+Diesel+Jockey pump
The main eletric components is CHNT . If schneider or other brand electrical are need, should mention it before place the order
Diesel pumps can use vertical in- line pumps, horizontal end-suction pumps,vmultistage pumps, horizontal multi-stage pumps, split casing pumps and so on according to diffenent flow and head of customers

Small electric fire pump set consist of one electric pump, jockey pump, control panel and accessories.

Electric fire pumps are driven by electric motors, and are divided into horizontal, vertical and many other structural varieties. The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance. Although electric fire pumps have the advantages of simple operation and maintenance, most fire protection system design specifications stipulate that when electric fire pumps are used, they should have the conditions for dual-circuit power supply, and diesel engine fire pumps are usually used as backup pumps.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The fire pump set is a customized 160kw EDJ fire pump, which is composed of electric pump + diesel pump + jockey pump. It is a standard fire pump set, which is easy to install the fire pump set on site; easy to debug; Wiring electrical connections; less space requirements; all (pump, drive and controller) on one base, etc.

Fire pressurized and stabilized water supply equipment can make the fire water supply pipeline system the most unfavorable point always maintain the fire pressure, and the use of air pressure water tank always stored in the 30 seconds of fire water, to ensure the fire pump before the operation of the fire spray water; The device uses the operating pressure set by the air pressure water tank to control the operating condition of the pump and achieve the function of pressurization and pressure stabilization.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

EDJ fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance. For conveying clean water or other liquids similar to water in physical and chemical properties.

70m3/h@60m Fire pump set test
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

The diesel engine fire pump unit is directly driven by the diesel engine fire pump, and it is a mechatronic equipment that can start and complete the water supply in a short time. The diesel engine pump set is driven by a diesel engine without external power supply. Diesel pumps are suitable for fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, and textiles. Especially in the case of no electricity and dissatisfaction with the grid, choosing a diesel engine-driven water pump is the safest choice.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
