How are fire pumps affected by power surges or electrical disturbances?

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

Advantages of OTS fire pump set:
1. Advanced hydraulic model, high efficiency and wide performance range.
2. Horizontal structure, easy installation and maintenance, small footprint.
3. Small vibration and low noise. Hydraulic balance of axial force is adopted to make the pump run smoothly, safely and reliably.
4. The inlet and outlet of the pump are on the same horizontal axis, which is convenient for pipeline connection and extremely convenient for loading and unloading.

This fire pump set can be used outdoors, integrated pump station, no need to build another pump room, cost saving, composed of electric pump + diesel pump + jockey pump, three pumps automatically start and stop, when the stabilizer pump detects When the electric pump fails to run normally, the diesel engine pump starts automatically, which is not affected by the mains, and can also be used when the power is cut off. The fire pump set is widely used in various emergency firefighting occasions.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1. Disconnect all electrical power to the fire pump and diesel engine.

2. Remove the fire pump and diesel engine from the mounting surface.

3. Drain the fuel from the fuel tank and disconnect the fuel lines from the engine.

4. Remove the hoses from the pump and the engine and drain the cooling system.

5. Remove the drive belt from the pulleys and remove the pulleys from the engine.

6. Remove the fan, flywheel, and starter motor from the engine.

7. Remove the cylinder head, piston rings, and other components from the engine.

8. Separate the pump from the engine and remove the impeller from the pump.

9. Disassemble the pump and engine into individual components.

10. Clean and inspect all parts for wear and damage.

11. Reassemble the pump and engine and reinstall on the mounting surface.

12. Reconnect the fuel lines and hoses and refill the cooling system.

13. Reconnect all electrical power to the fire pump and diesel engine.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are also other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers and multi-stage fire pump furnaces, etc., can all be completed by means of fire pump systems.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Offer a troubleshooting guide for common fire pump problems, such as low water pressure, priming issues, air leaks, and overheating motors. Break down step-by-step solutions, and advise when it’s necessary to call a professional. Include preventative tips to reduce the occurrence of these issues, such as regular inspection and maintenance practices.

This series of diesel fire-fighting pump sets has a wide range of head and flow, which can fully meet the fire-fighting water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Fire pump set consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.

Fire pumps are widely used in environmental protection, water treatment, fire protection and other departments. They are mainly used for pressurized water supply in fire protection system pipelines. They are also suitable for industrial and urban water supply and drainage, high-rise building depressurized water supply, long-distance water supply, heating, bathroom, boiler cooling and heating. Water circulation pressurized air-conditioning refrigeration system water delivery and equipment matching and other occasions.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

The fire pump is mainly a kind of pump equipment used for fire emergency, and its function is to transport the water source to the fire scene for fire fighting. In life, fire pumps are widely used in various buildings, such as factories, docks, warehouses, ports and other places, and are important equipment for fire emergency.

The EDJ Fire Pump system consists of diesel engine fire pumps, electric pump units, and pressure stabilizing pumps, creating an intelligent automatic fire water supply system. Our electric pump units come in various models, including single-stage pumps, horizontal split-case pumps, end-suction pumps, and multi-stage pumps, constructed with cast iron or stainless steel and equipped with efficient copper impellers for exceptional performance.
Whether it’s for buildings, factories, or warehouses, the EDJ fire pump system provides outstanding performance and reliability for your fire protection system, ensuring safety and security during fire emergencies!

Floating impeller axial force tone- balancing device
The balancing slice device has two gaps, the radial gap behind the impeller and the axial gap of the balancing slice, because of these two gaps, the balancing slice can automatically acclimate the axial l gap to achieve automatic balance of axial force, and the tableware rotor is in a floating state.

The principle of the balance plate is scattered to the impeller, the impeller back mouth ring radial concurrence below the axial concurrence, this device that’s the same as the balance plate, the conformation of two gaps, only in a different position. Because the impeller has these two gaps to round each other, so that the impeller can also achieve automatic balance of axial forces.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The lifespan of a fire pump motor or engine varies based on factors like usage, maintenance, and the quality of the equipment. However, they are typically designed to be durable and long-lasting.

– Diverse Area Coverage: Ensuring comprehensive coverage for offices, retail spaces, dining areas, and other facilities.
– High Occupancy Management: Implementing systems that handle high occupancy and prioritize occupant safety.
– Integration with Building Management Systems: Coordinating with HVAC, security, and other building systems for comprehensive safety.
– Compliance with Commercial Building Codes: Adhering to fire safety regulations specific to multi-purpose commercial buildings.

XBC diesel engine fire pump set is the latest according to the national standard GB6245-2006 “fire pump performance requirements and test methods”. This series of products has a wide range of lift and flow, and can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

Yes, firefighting pumps are often used in conjunction with other fire suppression methods, such as fire extinguishers, fire sprinkler systems, and fire blankets, to provide comprehensive fire protection in various environments.

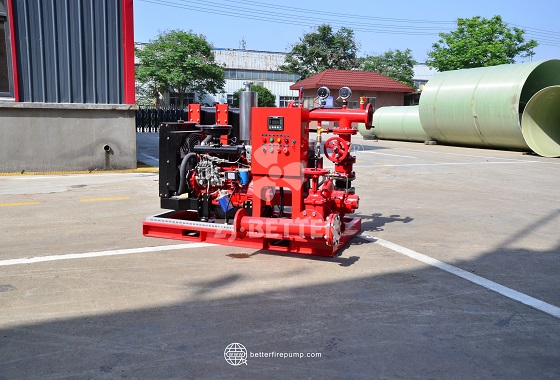

The fire pump set is a customized 160kw EDJ fire pump, which is composed of electric pump + diesel pump + jockey pump. It is a standard fire pump set, which is easy to install the fire pump set on site; easy to debug; Wiring electrical connections; less space requirements; all (pump, drive and controller) on one base, etc.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

For diesel-driven fire pumps, environmental considerations include proper fuel storage and spill containment measures. It’s important to adhere to environmental regulations to prevent pollution and ensure the safe operation of the pump.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

With proper maintenance, a fire pump can last 15-20 years or longer. However, components such as seals, bearings, and impellers may need replacement during this period.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The three pumps are automatically started and stopped. When the jockey pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
