How do I know if my fire pump is NFPA-compliant?

Learn how to conduct a fire pump flow test to ensure your system is compliant with NFPA 25, efficient, and ready for emergencies.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The lower the pumping head of the fire pump, the smaller the motor load. Under the misleading of this kind of misunderstanding, when purchasing a water pump, the head of the water pump is often selected to be very high. In fact, for centrifugal water pumps, when the pump model is determined, the power consumption is proportional to the actual flow of the pump. The flow rate of the water pump will decrease with the increase of the head, so the higher the head, the smaller the flow rate and the smaller the power consumption. Conversely, the lower the lift, the greater the flow and the greater the power consumption. Therefore, in order to prevent the motor from overloading, it is generally required that the actual pumping head of the pump should not be lower than 60% of the calibrated head.

Use of EDJ fire pump:

1. All kinds of fire hydrant, sprinkler fire pump;

2. Suitable for all kinds of fire booster and pressure regulator pump occasions;

3. Various villa, community and other fire control systems;

4. Industrial and civil building fire control system;

5. Suitable for all kinds of oil depots, oil loading and unloading docks, logistics parks and other places with high fire level requirements.

The various types of fire pump sets produced by our company mainly have the following characteristics: reliable performance, compact structure, convenient operation and maintenance, wide range of pressure and flow selection, and are highly praised by users. At the same time, our company can equip diesel engine cooling water preheating and engine oil pre-lubricating devices according to user needs, so that the fire pump set is always on standby to meet the emergency fire fighting equipment and improve the life of the fire pump set. The product is based on GB6245-1998 “Fire Pump Performance Requirements and Experimental Methods”.

The direct-drive horizontal fire pump features a compact structure, stable operation, high efficiency, high reliability, and low maintenance costs. It is suitable for fixed fire water supply systems in buildings, industries, and municipalities, ensuring a continuous and stable output of fire water in emergency situations.

Explore the advantages of an engine-powered fire pump system designed for oil fields, warehouses, and logistics parks. Delivering high performance, independence from power grids, and compliance with international fire safety standards.

A fire pump starts when the pressure in the fire protection system drops below a set threshold, indicating water flow caused by sprinkler activation or manual use of a fire hose. The pressure drop is detected by pressure-sensing devices, triggering the fire pump to activate and provide adequate water pressure.

The vertical long-shaft fire pump is a high-performance fire-fighting device specifically designed for high-rise buildings, industrial areas, chemical plants, power plants, and docks. It features high flow rate, high head, stable operation, and long service life. Utilizing a long-shaft drive and multi-stage guide vane structure, it ensures efficient water supply and continuous pressure output, adapting to various working conditions and water source environments. Supporting electric motor or diesel drive, it can be automatically controlled and remotely monitored, making it an ideal choice for achieving highly efficient, energy-saving, safe, and reliable fire-fighting systems.

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

Components
1. Diesel pump: flow is the same with electric pump. It connects the pump set with high elastic coupling or universal joint.
2. Jockey pump: vertical, small flow, head is higher than electric or diesel pump.
3. Control panel: control the pumps automatically with overload, overcurrent protection.
4. Accessories: Suction pipe, Discharge pipe with flange, Battery, Gate valve, Check valve, Flexible expansion joints, Pressure switches, Pressure gauge, base frame etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
By choosing the DJ (Diesel engine pump + Jockey pump) Fire Pump Set, you opt for a reliable, efficient, and secure solution to protect your property and ensure the safety of occupants. Whether for commercial buildings, industrial facilities, or residential areas, it is an indispensable fire safety equipment that offers robust support and protection to your fire protection system.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

The fire pumps used in the complete diesel engine fire pump unit can be the IS series single-stage type and the D-type series segment multi-stage type produced by our company. The diesel engine water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. They are advanced and reliable fire fighting equipment.

When customers choose a fire pump, they must choose the fire pump with the appropriate specifications according to their own needs, so that the fire pump can play its best role. And when choosing a fire pump, you must choose a fire pump produced by a regular manufacturer. Such a fire pump has more quality assurance, and the manufacturer will also provide customers with better after-sales service. When choosing a fire pump, don’t be blinded by those ultra-low-priced fire pumps on the market. Behind the ultra-low price, there are bound to be some quality defects hidden.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

High-performance vertical pressure-stabilizing pump sets provide continuous and stable pressure support for fire protection systems, ensuring the immediate activation of sprinklers, fire hydrants, and various fire extinguishing devices in emergencies. The equipment features a compact structure, high efficiency, and rapid response, making it suitable for commercial buildings, industrial facilities, warehousing centers, and municipal engineering projects. It provides a reliable, safe, and low-maintenance pressure compensation solution, helping users comprehensively improve the reliability and protection level of their fire protection systems.

There are many types of fire-fighting equipment. Fire hydrants and fire extinguishers are the most common types. The other is the fire pump, which is the heart of the fire-fighting system and plays an important role in pressurizing the fire-fighting system. Among the numerous fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

Three start-up functions for diesel engines:
1. Manual start function: manual and automatic interlocking can be completed through the transfer switch, and the manual start function can be realized:

2. Automatic manual function: allow to start three times. If the startup fails for three times, it will issue a “startup failure alarm” and automatically exit the startup state. After a successful startup, the time from startup to rated load is 5-10-15S (depending on the unit capacity);

3. Emergency manual direct start function: When the automatic control device fails, the emergency manual direct start function can be realized.

High-flow diesel pump sets have become the core equipment of fire protection systems with their strong power, high head and stable water supply performance. They have the advantages of fast start-up, automatic control and independent operation. They can continue to supply water even in power outages or harsh environments. They are widely used in high-rise buildings, industrial plants, oil and gas facilities and municipal projects, providing reliable protection for emergency firefighting.

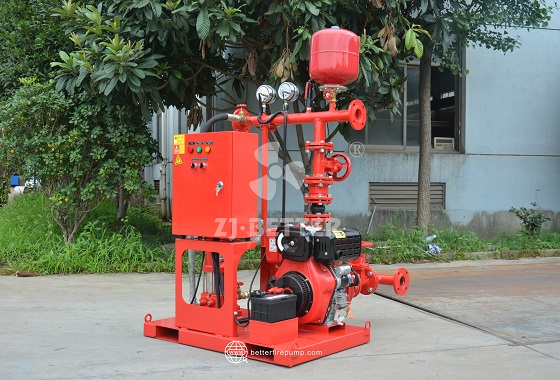

High-performance single-cylinder diesel power unit for fire pump emergency start, offering fast response, strong torque, high reliability, and excellent durability for critical safety applications.

This article analyzes the advantages of diesel fire pump units with enhanced cooling capacity in industrial fire protection, focusing on their efficient heat dissipation system, stable power output, large flow water supply, and long-term continuous operation performance. They are suitable for industrial fire protection systems under high temperature, high load, and complex working conditions.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

Functional description of fire pump control system, which is composed of electric motor fire pump, diesel engine fire pump, common chassis, water outlet pipeline and various valves. The operation of the unit is operated by hand. The diesel engine fire pump is equipped with a fuel tank with a running capacity of 6 hours. The electric fire pump set has a starter cabinet and a manual button box, which is convenient and feasible to operate. In addition to the entire structure of the manual control unit, the automatic motor fire pump unit and diesel engine fire pump unit also have an automatic control panel mainly composed of PLC. Automatic control panel function The automatic control panel receives the fire alarm signal.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Protective diesel fire pump equipment integrates noise reduction, protection and efficient water supply, and is suitable for complex environments and emergency fire protection systems. It has the advantages of stable operation, high reliability and independent power supply, making it an ideal choice for industrial and municipal projects.

A fire pump package set is often quicker to install and is ideal for specific applications, while an integrated fire system can offer more comprehensive fire protection. The best option depends on your facility’s specific requirements, layout, and risk factors.
