How often should fire pumps be inspected and maintained?

Flow: 30GPM~9000GPM
Head: ＜200m
Speed: 2950~3500 RPM

Fire pumps are necessary to maintain adequate water pressure for firefighting, especially in high-rise buildings, large industrial facilities, or areas with insufficient water supply.

The EDJ model is basically a combination of Electric, Deisel and Jockey pumps. They mainly consist of an electric motor driven end suction pump and a backup pump of a diesel engine driven end suction pump. It is also combined with a jockey pump for maintenance to form a complete skid.
The complete EDJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

If the fire pump is corroded, it should be inspected by a qualified professional. Depending on the extent of the corrosion, the pump may need to be repaired or replaced. The professional may also need to inspect the entire system for any other potential issues. In some cases, a fire pump may need to be replaced if the corrosion is severe and cannot be repaired.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Firefighting pumps can be powered by various sources, including gasoline engines, diesel engines, electric motors, and even hydraulic systems. The choice of power source often depends on factors such as portability, availability of fuel, reliability, and specific application requirements.

Yes, various national and local codes and standards, such as NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection), provide guidelines for the installation, operation, and maintenance of fire pumps.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is indeed high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use. Leading the pipeline tools.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

EDJ fire pump set consists of diesel engine fire pump, electric pump set and stabilized pump to form an automatic fire water supply system

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

A fire pump is a crucial component of a fire protection system that provides the required water pressure to deliver water to the fire sprinkler system or other firefighting equipment, ensuring an adequate supply of water in case of a fire emergency.

Flow: 14-2700 GPM
Head: 12-80 meter
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

1. Whether the fire equipment is in good condition, including whether the fire extinguisher is leak-proof and whether the alarms, lights, fire hydrants, fire doors and other equipment are working properly.

2. Whether the personnel of the unit have received professional fire safety training.

3. Whether the layout of the office space follows the fire safety regulations, such as whether the aisle and emergency routes are unblocked and whether the relevant structural objects are in good condition.

4. Whether the management of flammable and explosive materials meets the relevant regulations and whether their storage places and transportation are kept in good condition.

5. Whether the fire exits are unobstructed and clear, and whether the signage and lighting is normal.

6. Whether the underground pipelines, cable linings, and other equipment that are easy to cause a fire accident are managed in accordance with relevant regulations.

7. The integrity and security of the fire-fighting equipments.

8. Whether alarm systems are set up in the internal and external parts of the structures and at important points in the facilities.

9. Whether the fire-fighting system is in good condition and whether the drafting of emergency evacuation plans is in compliance with applicable regulations.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

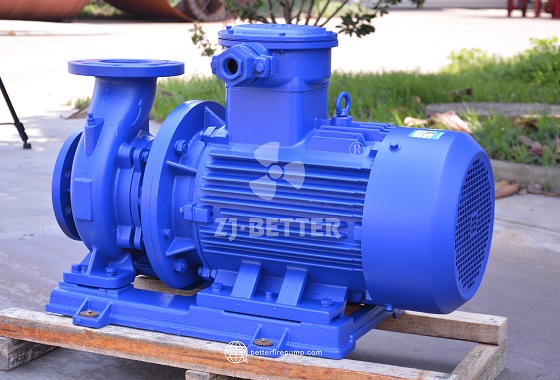

ISW horizontal single-stage single-suction centrifugal pump is to be used for clean water or other liquid with similar physical and
chemical property to clean water. It is suitable for industrial and city water supply and drainage, pressure water supply for high-rises, garden sprinkling, fire fighting booster, distance conveyance, cooling circulation in heating and ventilating system, bathroom and other cool or hot water circulation boosters or accessories, whose operation temperature is below 60C.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions

Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

The diesel engine fire pump is suitable for unmanned emergency water supply system. The product has the characteristics of good technology, high degree of automation, high performance and protection function, reasonable structure, easy installation, and high cost -effectiveness. Supplement the pressure of the network.

Our pump for pumps has ISO centrifugal pump with high efficiency, XA centrifugal single-stage pump, ISW centrifugal pump which can be used for all customers with more competitive price, XBD centrifugal pump which has same specification as ISW centrifugal pump, OTS split case which has high capacity to meet the customers requirements, D multistage pump with high pressure up to 60bar. JC vertical turbine pump for the water level lower than the pump suction. XBC diesel engine fire pump for all pumps use diesel engine.

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

Diesel engine fire pumps can be widely used in environmental protection, water treatment and fire protection departments to transport various liquids by using their own advantages.

What are the components of the fire pump group
1. Electric pumps: various end suction pumps and split case pump.
2. Jockey pump: vertical, small flow, head higher than electric pump or diesel pump.
3. Control panel: Automatically control the water pump, with overload and overcurrent protection functions.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, expansion joint, pressure switch, pressure gauge, base, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

fire pump system assembly now! which consist of electric fire pump, diesel engine fire pump and jockey pump, with booster pump system

1.Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump, this jockey pump is optional
4.Control panel: Auto Control for all pumps with overload, over current protection.
5.Accessories: valves, pressure vessel, Pressure Gauge, Pressure Sensor, Common Base plant

Flow: 30-500GPM
Head: 3-20Bar
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

The ultimate in tailor made fire protection pump packages are the SPP Pumps pump house packages, housing pumps, control systems and pipework. After simply connecting the water and power supplies on site, the unit is immediately operational.
