How to make the fire automatic pressurized and stabilized water supply equipment play a big role in the fire?

The ED fire pump set is composed of electric pump + diesel pump, equipped with a control cabinet, without a jockey pump. It is a small fire pump set, suitable for any fire emergency situation, not affected by the mains, and the control cabinet controls the pump. Start and stop, with the advantages of flexibility and small footprint.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

The first step is to design a comprehensive and comprehensive fire protection system for the premises. This system should include automatic fire sprinklers, water-based fire suppression systems, fire alarms, smoke detectors and fire extinguishers. The fire protection system should be designed and installed according to the local building codes and fire regulations.

The next step is to install a pressurized and stabilized water supply system. This system should be designed and installed according to local regulations, as well as the needs of the premises. The system should include a main water supply line, a storage tank, and a pump system to ensure adequate pressure and flow.

Finally, the fire protection system should be regularly inspected and maintained. This includes regular testing of the fire sprinklers, smoke detectors, alarms and fire extinguishers. Any maintenance and repairs should be done by a qualified technician.

Fire pump installations must consider factors such as temperature, humidity, and potential flooding. Pumps should be installed in environments that protect them from extreme conditions to ensure reliable operation.

A fire pump starts when the pressure in the fire protection system drops below a set threshold, indicating water flow caused by sprinkler activation or manual use of a fire hose. The pressure drop is detected by pressure-sensing devices, triggering the fire pump to activate and provide adequate water pressure.

Outdoor fire pump set
The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

1. The performance of the fire pump should meet the flow and pressure requirements of the fire water supply system.
2. The power of the driver equipped with the fire pump should meet the requirements of the power required for operation at any point on the performance curve of the selected pump’s flow and lift.
3. When a motor-driven fire pump is used, a dry-installed fire pump with the motor should be selected.
4. The fire pump should be installed dry, and the pump should be placed outside the pool, and the submersible pump cannot be directly placed in the water for water absorption.

Safety precautions include de-energizing electrical systems before maintenance, providing proper ventilation in pump rooms, and following lockout/tagout procedures to prevent accidental startup.

Diesel engine fire pumps have been widely used in fire diversion as fixed fire fighting equipment, especially in the case of sudden fire water supply such as lack of power supply or abnormal power supply. , fire pump, connecting device, fuel tank, radiator, battery pack, intelligent automatic control screen, etc. Diesel engine fire pump products have the characteristics of leading technology, high degree of automation, excellent performance protection function, reasonable structure, simple installation and high cost performance. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural pumps, marine pumps, trailer-type mobile water pump stations, etc., which can be used together with electric fire pumps.​​

The application of electric fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

Diesel engine-driven fire pumps are designed and manufactured in accordance with GB “Fire Pumps”. Comply with CCCF certification requirements. The advantage of its product is that when a fire occurs, the power supply fails, and the electric fire pump group cannot be put into use normally, the diesel engine fire pump group can be automatically put into operation to ensure the normal fire fighting. Compared with the electric fire pump set, the second advantage is that it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time. The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

Diesel engine fire pump is a special diesel engine equipment, which has the characteristics of simple structure, reliable operation and long service life, and is widely used in the field of fire protection. When using a diesel engine fire pump, it is necessary to pay attention to maintenance and maintenance, and replace fuel, oil and filters in time to ensure the normal operation of the fire pump.

Discuss the importance of regular fire pump testing to ensure system readiness in case of an emergency. Describe weekly churn tests and annual flow tests, explaining how these tests verify the pump’s performance, check for potential issues, and maintain compliance with NFPA and insurance requirements. Include a checklist to make testing straightforward and encourage record-keeping.

Diesel fire pumps offer distinct advantages over other types of fire pumps, such as electric or jockey pumps. Unlike electric pumps, which rely on grid power and may be vulnerable to power outages, diesel fire pumps can operate independently, making them suitable for use in areas with unreliable electricity or during emergencies. Jockey pumps, on the other hand, are typically used to maintain pressure in fire sprinkler systems but may not provide the same flow rates or firefighting capacity as diesel fire pumps.

The advantage of its product is that when a fire occurs, the power supply fails, and the electric fire pump set cannot be put into use normally, the diesel engine fire pump set can be put into operation automatically to ensure the normal fire fighting. Compared with the electric fire pump set, it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time. The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

In large industrial complexes, fire pumps are vital in supporting firefighting efforts by providing a reliable water supply to extensive fire protection systems, including sprinklers, hydrants, and hose reels. These facilities often have complex layouts and multiple hazards, requiring robust fire pumps capable of delivering high water flow rates and pressure over long distances. Fire pumps in these settings are typically part of a comprehensive fire protection strategy that includes redundant pumps, emergency power supplies, and advanced control systems to ensure continuous operation even if one component fails. By delivering a consistent and adequate water supply, fire pumps help ensure that firefighting efforts are effective, minimizing damage and protecting both personnel and assets.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system produced by our factory to realize the function of remote monitoring.

Flow-500gpm; Head-125psi
DJ (diesel pump + jockey pump) Fire Pump Set

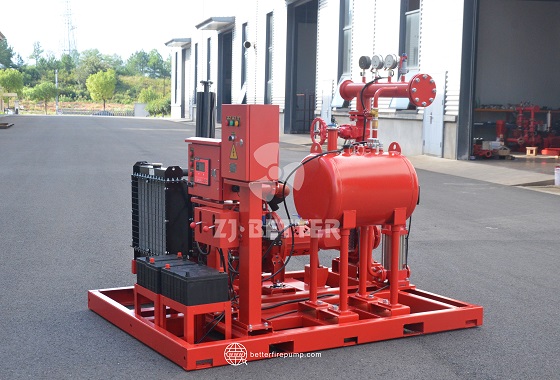

DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

Fire pumps should be tested regularly to ensure their proper functioning. Monthly tests for a short duration and an annual full-load test are common practices. Regular testing helps identify and address any issues promptly.

Fire pumps are specifically designed for firefighting purposes. While some may have other applications, their primary function is to provide water at the required pressure for fire protection systems.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

In smart buildings, the latest trends in fire pump technology focus on integrating advanced sensors, IoT (Internet of Things) capabilities, and data analytics to enhance system performance and reliability. Smart fire pumps can communicate with building management systems (BMS) to provide real-time data on pump status, water flow, pressure, and other key parameters. This data can be used for predictive maintenance, alerting operators to potential issues before they become critical. Additionally, smart pumps can adjust their operation based on real-time conditions, optimizing energy use and ensuring the most efficient response during a fire emergency. These technologies enhance safety and align with the broader trend toward more intelligent, automated, and energy-efficient building systems.

50gpm 6bar ED fire pump set test video

Fire pumps are primarily designed for structural fire protection, and their use in wildfire prevention is limited. However, water pumps and other firefighting equipment may be employed for vegetation fire control in specific situations.

Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

This equipment is a customized EEJ fire pump set which can meet 500GPM@80m. The duty pump and standby pump are XA series pump.

What are the components of the fire pump group
1. Electric pumps: various end suction pumps and split case pump.
2. Jockey pump: vertical, small flow, head higher than electric pump or diesel pump.
3. Control panel: Automatically control the water pump, with overload and overcurrent protection functions.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, expansion joint, pressure switch, pressure gauge, base, etc.

Diesel engine fire pump sets are used in fire hydrant fire extinguishing systems and automatic sprinkler fire extinguishing systems in fixed fire extinguishing systems of enterprises, institutions, engineering construction, high-rise buildings, etc. It can transport clear water below 90 °C without solid particles and has similar physical and chemical properties. The water-based medium can also be used for fire protection, domestic and production shared water supply systems and construction, municipal water supply and drainage, etc.

EDJ fire pump set consists of diesel engine fire pump, electric pump set and stabilized pump to form an automatic fire water supply system
